In this first chapter, we will concentrate
on giving the reader a feeling of the possibilities of the framework. We will
use standard ROOT as well as VEGA specific examples.
The user actions will be written in bold
characters.
II.1 Basic
intrinsic operations
First of all, one needs to know how to exit
from a program! The C interpreter has some raw commands that begin with a dot.
These commands are used to do intrinsic operations, not related to any C/C++
code. The ones that you should know for the beginning are:
.q
quits the interactive
session
.x
loads a macro and executes
it
We will see other raw commands, as we need
them, especially commands to debug scripts (step, step over, set breakpoint,
etc...).
II.2 The
interpreter CINT, graphical interaction through a few examples
II.2.1 First
very simple example
First, go to the $ROOTSYS/tutorials and
start the ROOT/VEGA interactive session:
your_prompt$
vega
The prompt that you see is
"vega[]".
In fact, you launched the very small vega executable, which is in $VEGA/$UNAME
and which is linked with the ROOT libraries.
This program gives access via a command-line
prompt to all available ROOT/VEGA classes/globals/functions. By typing C/C++
statements at the prompt, you can create objects, call functions, execute
scripts, etc. For example type:
vega[]
1+sqrt(9)
(double)4.000000000000e+00
vega[]
for (int i = 0; i<5; i++) printf("Hello %d\n",
i)
Hello 0
Hello 1
Hello 2
Hello 3
Hello 4
vega[]
.q
As you can see, if you know C or C++, you
can use ROOT. No new command line or scripting language to
learn.
Some comments may be made at this point.
First, there is no need to put a semicolon at the end of a line. Well, you can
put one if you want. This is only true for statements written on the command
line. One assumes that the carriage return is enough to express the end of the
line for the interpreter. This is part of the interpreter’s extensions to
C++ that were made to allow an easy interaction, while not at the expense of
breaking the compatibility with C/C++ language.
Some of the extensions don’t work
anymore inside a macro. For example, you have to put a semicolon at the end of
each line in a macro.
II.2.2 Graphical
output example
Let’s try something more interesting.
Again, start VEGA :
your_prompt$
vega
vega[]
TF1 f1("func1", "sin(x)/x", 0, 10)
vega[]
f1.Draw()

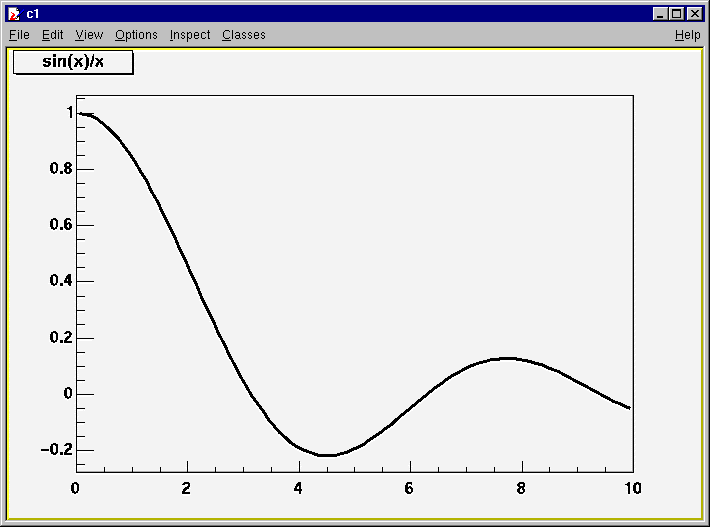

you should see something like this
:
II.2.3 Classes,
methods and constructors
We can stop for a second (well, a few
seconds...) and explain what we have done. A more thorough introduction to C++
is given in
“ More on C++(for the interested reader)
” chapter.
In ROOT and C++, we introduce the notion of
object, which is just a C structure with some internal functions (called
“methods”) associated to it.
The line
TF1 f1("func1", "sin(x)/x", 0,
10) created an object named
f1
of the type
TF1
which is a one-dimensional function. The type of an object is also called a
class.
In fact, the line above builds an object by
giving it a set of parameters. This is one example of a function associated to a
class. It is a special one since it builds an object. It is called a
constructor.
To interact with an object in ROOT, the
usual syntax is :
object.action(parameters)
This is the usual way of doing in C++. The
dot can be replaced by -> if object is a pointer. But since the interpreter
always knows the type (class) of an object, if you put a dot instead, it will be
automatically replaced when necessary.
So now, we understand the two lines that
allowed us to draw our function.
f1.Draw()
means “call the method Draw associated with the object f1 of class
TF1”. We will see the advantages of using objects and classes very
soon.
One point : the ROOT framework was designed
as an object oriented framework. This doesn’t mean that a user cannot call
plain functions. For example all the FrameLib standard functions are available
in the VEGA framework.
II.2.4 ROOT
related specifics
We didn’t yet explain everything about
the constructor of f1 :
TF1 f1("func1", "sin(x)/x", 0,
10)
"sin(x)/x"
is the function that we want to define, 0 and 10 the limits but what is
"func1”?
It’s the name that we give to the object f1. Most objects in ROOT have a
name. That way, there are lists of objects maintained by ROOT and it’s
easy to find an object by its name, especially if it is in a database. We will
see why it is so when we see the notion of inheritance.
II.2.5 Graphical
output example: User interaction
If you quit the framework, try to draw again
the function
"sin(x)/x".
Now, we can look at some interactive capabilities. Every graphics drawn in a
window (which is called a Canvas) is in fact a graphical object in the sense
that you can grab it, resize it, change some characteristics with a mouse click.
And all the changes that you do are not done on a graphical copy of the object
but on the object itself. For example try to click somewhere on the x-axis and
drag along this axis. You have a very simple zoom.
When the cursor is on any object, you have
access to selected methods by pressing the right mouse button and obtaining a

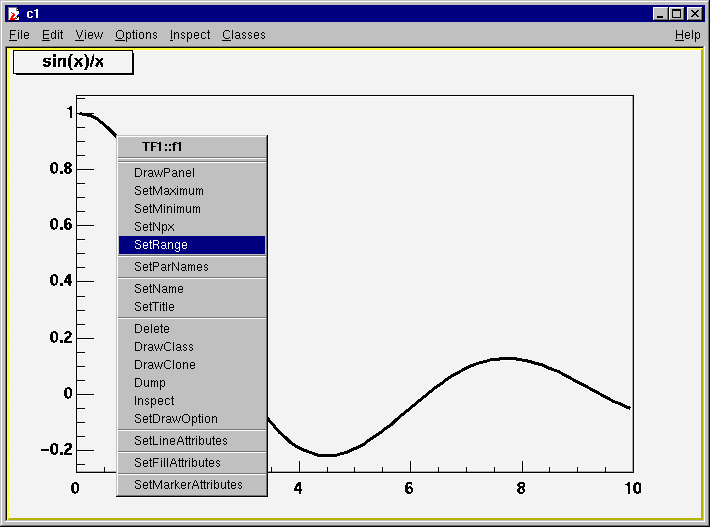

context menu showing some available methods for this object. If you try this on
the function itself, you obtain this kind of behavior:
You can try for example to select the
SetRange
method and put -10, 10 in the dialog box fields. This is equivalent to executing
the member function
f1.SetRange(-10,10)
from the command line prompt, followed by
f1.Draw().
There are other things you may want to try.

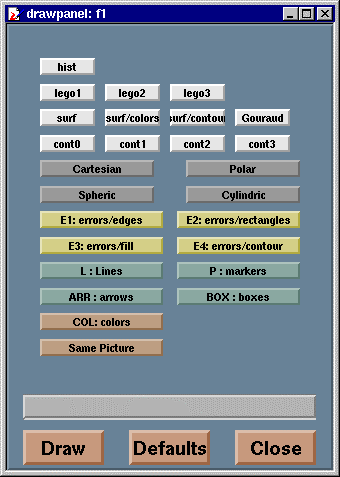

For example select the "DrawPanel" item of the popup menu. You will see a panel
like this one :
Try to resize the bottom slider and click

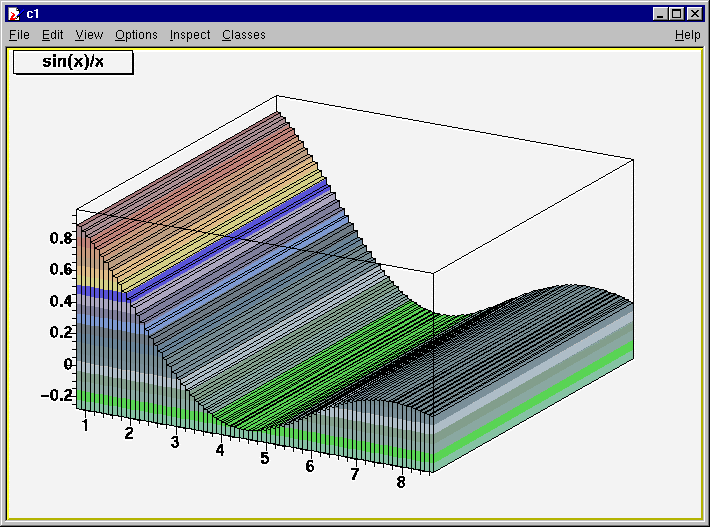

Draw. You can zoom your graph. If you click on "lego2" and "Draw", you see a 2D
representation of your graph :
You can rotate interactively this 2D plot.
Of course, it is possible to plot real 2D functions or graphs, not only a
disguised 1D. There are numerous ways to change the graphical
options/colors/fonts with the various methods available in the popup. Here are a
few examples:

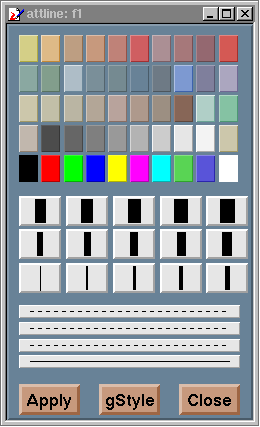

Line attributes

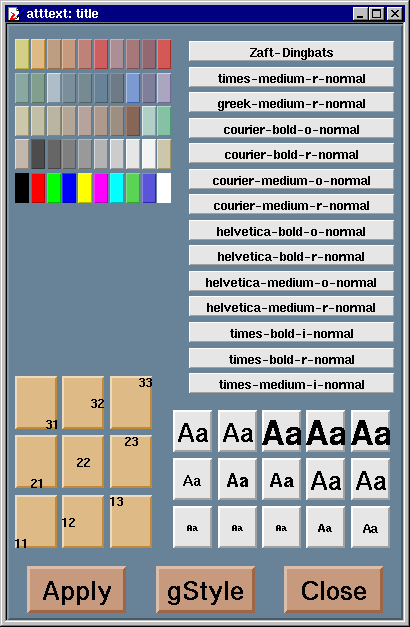

Text attributes

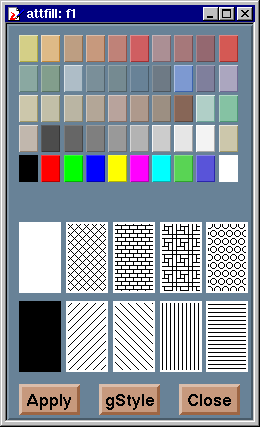

Fill attributes
Once the picture suits your wishes, you may
want to see what are the lines of code you should put in a macro to obtain the
same result. To do that, choose the "Save as canvas.C" option in the "Files"
menu. This will generate a macro that you can look into to see how to set the
various options. Notice that you can also save in postscript or gif formats the
picture.
One other interesting possibility is to save
in native root format your canvas. This will enable you to open it again and to
change whatever you like, since all the objects associated to the canvas
(histograms, graphs, etc...) are saved at the same time.
II.2.6 Second
example : Building a multi-pad canvas
Let’s now try to build a canvas (i.e.
a window) with several Pads. The pads are sub-windows that can contain other
Pads or graphical objects.
vega[]
can = new TCanvas("can","Test canvas",1)
vega[]
can.Divide(2,2)
Once again, we called the constructor of a
class, this time the class TCanvas. The difference with the previous constructor
call is that we want to build an object with a pointer to it. In C, we would
have used malloc() or calloc(). Here, we use the operator new, which is
the equivalent in C++. Instead of free() we will use delete. Usually, one
has to declare a variable before using it. Since there cannot be any ambiguity
in the line above, one doesn’t need to declare a variable
“can”. In case such a statement in a macro is intended to be
compiled, one would obviously have to declare the variable as a TCanvas* before
using it.
Next, we call the method Divide() of the
TCanvas class (that is TCanvcas::Divide()) which divides the canvas into 4 zones
and sets up a Pad in each of them. Now, if we do
vega[]
can.cd(1)
vega[]
f1.Draw()
the function f1 will be drawn in the first
Pad. All subsequent actions, draw an arrow for example, will be done on that
Pad. To change the working Pad, there are three ways:
Click on the middle button of the mouse on an
object, for example a Pad. This sets this pad as the active one
Use the method cd() of TCanvas (that is
TCanvas::cd()) by telling the number of the pad, as was done in the example
above:
vega[]
can.cd(3)
Pads are numbered from left to right and
from top to bottom.
Each new pad created by the TCanvas::Divide
method has a name, which is the name of the canvas followed by _1, _2, etc...
for example to cd() to the third pad, you should do
:
vega[]
can_3.cd()
The third pad will set itself as the
selected pad since you call the TPad::cd() method for the object can_3. This
remark just to show the state of mind people have when they "think" in
C++
II.2.7 Inheritance
and data encapsulation
II.2.7.1 Inheritance
There is an obvious question that could be
asked : what is the relation between a canvas and a pad ? Isn’t it almost
the same thing? Yes it is. In fact, a canvas is a pad that spans through
an entire window. This is nothing else than the notion of inheritance. The TPad
class is the parent of the TCanvas class.
So what? The most interesting thing is that
you can reuse the code written in the parent class. For example, cd() is a
method that TCanvas inherits from it’s parent, TPad.
II.2.7.2 Method
overriding
The method overriding is explained in
chapter IV. Basically, when a class Child derives from another class Parent, it
can reuse the methods defined in Parent, but if one method of Parent is not well
adapted to Child, one can redefine (override) it. For example Draw() in some
Child class may be different from Draw() in the Parent class. There is no
ambiguity since you always specify the object : childobject.Draw() or
parentobject.Draw().
II.2.8 ROOT
related specifics
For what concerns inheritance, most objects
in ROOT derive from a base class called TObject. This class contains everything
that is shared by all the classes in ROOT. Especially, it
handles
the object I/O, so one can send any object to
a file without writing the corresponding code,
comparing two objects, enabling searches,
sorts, etc...
graphics hit detection
notification between objects, so they can
talk to each other...
to
name the most important ones.
II.3 An
example of a macro
Let's try now to see how we can write a
simple macro. As we've said, this is just C/C++ code. Open the editor of your
choice and look at the macro named vfill_histo.C. As a matter of convention, all
macros are suffixed by .C. The source code has a .cxx or .cc suffix.
vfill_histo.C is the following code :
{
// Create and fill a histogram with
random #'s from a Gaussian distribution.
// See
http://root.cern.ch/root/HowtoHistogram.html for a brief
description
// of how to use histograms in
ROOT.
gROOT->Reset();
// TH1F is the equivalent of
HBOOK1
// The fill data are 32 bit float
points and weights are 64 bit fp.
printf("Creating Histogram...\n");
TH1F *h1 = new TH1F("h1","1-D
Gaussians",100,-8,8);
printf("done.\n");
//The ROOT/CINT extensions to C++.
The declaration of h1 may be
//omitted when "new" is used. So
h1 = new TH1F(...) will correctly
//create an object of class
"TH1F".
gRandom->SetSeed();
// Raw C types are
typedefed.
Float_t xgauss;
printf("Filling Histogram...\n");
for (Int_t i=0; i < 10000; i++)
{
xgauss = gRandom->Gaus(3,0.5);
h1->Fill(xgauss,0.2);
h1->Fill(xgauss-6);
}
printf(" done.\n");
}
We can try to give detailed explanations of
some of the lines above.
gROOT->Reset();
This statement resets the interpreter
environment, it is almost always used at the beginning of a macro but not if you
want to preserve some variables that a precedent macro defined. gROOT is a
global variable. We will see some more details about globals in ROOT in a few
moments. gROOT is an object of the class TROOT, which represents your session.
It contains, among other things, lists of named objects created during the
session, such as histograms. This enables access to those objects by their
name.
TH1F *h1 = new TH1F("h1","1-D
Gaussians",100,-8,8);
Here, we create a histogram by invoking one
of its constructors. Walking through this statement, we have :
TH1F: this is one of the histogram classes.
All ROOT classes begin with a T (see Coding Conventions). As we will see, all
VEGA classes begin with a V. H is for histogram, 1 for 1-D and F for using one
float per channel.
*h1 is the name of the pointer to this
object
new TH1F(...) invokes the constructor for
this object with several parameters:
"h1" is the name of the histogram. In ROOT,
as we have seen, most high level objects are named. Typically, one makes the
name of the object the same as the pointer to which it refers.
"1-D Gaussians" is the title of the
histogram. It will be displayed by default when the histogram is
drawn.
100, -8, 8 are the number of bins nbins, xlow
and xup. For PAW users : you don't have to worry about the type of xlow and xup,
integers will be converted to floats.
gRandom->SetSeed();
Another global. gRandom is the current
object of the class TRandom of standard random generators. You probably already
noticed that all globals begin with a "g" followed by a capital letter. This is
general and belongs to the coding conventions used in ROOT, which are followed
by VEGA . The SetSeed() method of TRandom chooses a random seed, here the
default one.
The class TRandom doesn't try to be overly
ambitious. The important methods are :
SetSeed(iseed) : sets the seed of the random
number generator. If no number is given, 65536 is used.
Gaus(mean, sigma) : return a random number
distributed following a gaussian with mean and sigma.
Rannor(a,b) : returns two random numbers
following a gaussian with mean=0 and sigma=1.
Rndm() : returns a uniformly distributed
random number in the interval [0,1]
Float_t
xgauss;
To avoid machine dependence of raw C types
(double, float, and especially int, etc...), the basic types have been
typedefed. So, instead of float, we use Float_t = 4 byte float. You can equally
well use standard types (float, double) for your everyday work. In VEGA, we
integrated the Framelib, which has its own machine-independent data types. To
avoid problems, we decided to keep both. So you can use Float_t (ROOT type) or
REAL_4 (Framelib type) indifferently. We know this can be misleading but one
cannot avoid some historical background...
for (Int_t i=0; i < 10000; i++)
{
xgauss = gRandom->Gaus(3,0.5);
h1->Fill(xgauss,0.2);
h1->Fill(xgauss-6);
}
This seems to be a standard for loop in C in
which you generate a random variable (gaussian) and you fill a histogram with
this value.
For somebody not used to C++ something is
strange : the Fill() method used to fill the histogram is used twice but not
with the same number of arguments. This is perfectly common in C++, and it is
called method overloading. We will see more about this in the next
paragraph.
Now, to execute your macro type
:
vega[]
.x vfill_histo.C
Creating
Histogram...
done
Filling
Histogram...
done
Now you have in your memory (the computer
one, not yours...) a histogram with which you can play. For example
type
vega[]
h1->Draw()
vega[]
h1->Dump()
As will be seen in the chapter "Writing
macros", one can write a named macro and give arguments to a macro. You also
probably noticed that there is no includes in the macro. In fact, all the
standard C includes are already done in the environment, as well as ROOT and
VEGA specific ones.
II.3.1 C++
notions used: method overloading
We've just seen, in the example above, that
a method can have different forms, with different arguments. If we look at an
excerpt of the header file defining the class TH1F :
public:
virtual void Fill(Axis_t x);
virtual void Fill(Axis_t x, Stat_t
w);
virtual void Fill(Axis_t x, Axis_t y, Stat_t
w);
virtual void Fill(Axis_t x, Axis_t y, Axis_t
z, Stat_t w);
You see that the Fill method is defined four times with different arguments. How does the compiler know what method to call ?
For the compiler to be able to make the
difference, the arguments must be different enough. There is no ambiguity in the
Fill methods above since the number of parameters is different for each method.
If someone had made the following statement :
public:
virtual void Fill(Axis_t x);
virtual void Fill(Axis_t x, Stat_t
w=1);
where in the second declaration, one of the
arguments has a default value (this is permitted in C++), then the compiler
doesn't know which method to call if someone uses
h1->Fill(23)
Should the compiler use the form
Fill(Axis_t
x); where x=23 or the form
Fill(Axis_t x, Stat_t
w=1); where x=23 and one uses the
default value w=1 ?
In that case, the compiler sends an error
message. So one must be careful, when writing his methods not to come in such
situations. Easier said than done.
II.4 How
to compile a macro ?
Sometimes (in fact quite often) a script may
become so big or be so processing-hungry that one would like to have it compiled
and not interpreted. There is included into ROOT what is called a script
compiler that allows compiling very easily the scripts you are going to
produce.
It starts by calling the C++ compiler that
was used to build ROOT and builds a shared library. This shared library is then
loaded and the function defined in the script is executed.
II.4.1 Preparation
of the script
So that seems nice, what is the deal ?
It’s only that you have to prepare a little bit your script. But it is
quite simple. You have to
NOT use extensions to C/C++ provided by the
CINT interpreter. That means for example that while in the interpreter you do
not need to declare variables whose type is known from the context, this is
mandatory if you want to be able to compile. Since the compiler is not supposed
to know the context of the interpreter. An example. In the interpreter, you can
use statements like :
c1 = new
TCanvas("c1", "Test",1);
where
you do not declare the variable c1, you should do instead
:
TCanvas* c1 = new
TCanvas("c1", "Test",1);
More generally, use very standard
C/C++ and declare all your variables
You should add includes you use at the
beginning of the file. Once again, this is for the real compiler that will do
the work. Usually, the headers to be added are composed of the name of the
classes used followed by the .h suffix. In case of included C code, the most
commonly used are
"FrameL.h"
for all the Framelib calls, and the standard headers of the Virgo standard
signal library.
In case you want to execute immediately (i.e.
use the command “.x”) the first function of the script you compile,
you have to name the function in your script with the same name as the file it
is contained in. For example the file my_test.C should begin
with
my_test()
{ your
code....
}
The tutorial script called
scrollspectrum.C
has been prepared this way, check it.
II.4.2 Compiling
the script
What remains to be done is to compile the
script. If we want to execute the script called
scrollspectrum.C,
we just have to do (once in the
vegatutorial
directory) :
vega[]
.x scrollspectrum.C++
notice the ++ at the end of the command.
This tells the interpreter to compile
scrollspectrum.C,
build a shared library called
scrollspectrum.so,
load this shared lib and execute
scrollspectrum().
The resulting library scrollspectrum.so
stays here and you can reuse it, that is reload it at a later time,
with
vega[]
.L scrollspectrum.so
furthermore, the scrollspectrum() function
is available in the interpreter and may be used in some other script
!
All this also works with loading the script
after compiling :
vega[]
.L scrollspectrum.C++
is a valid statement. This will build the
library and load it as before. It will just not execute any
function.
II.4.3 Compiling
a more complex code
You will probably at one point or another
try to compile a more complex code, consisting of a few files, or you will want
to use the VEGA capabilities in your own code, for example use the display of
vectors in a standalone executable. This is described in the chapter “How
to compile your own code for VEGA or use the VEGA libraries in your code”
at the end of the manual.
