Representing Gravitational Waves data

VI.1. Series plots

Since the user may want to use the Framelib to access the frames, and since there are many structures defining time-series that can be used, there is a need for a class or set of classes defining a representation of a time-series or spectral series. For the moment, there is only one such class, VSPlot.

The class VSPlot is the graphical representation of a series. For the time being, VSPlot derives from TH1F (histogram class) and adds some minor methods.

The drawing of VSPlot produces time series specific information such as the duration, mean value, etc... written in a statistical box.

As we will see, VSPlots are generally created and managed by graphical managers called Vmanagers. A VManager holds a potentially big number of plots and takes care of their deletion if necessary. If one wants to take control on a plot (for example to draw two different pieces of the same plot), one can detach a VSPlot from the manager that created it :

void AbandonManager()

As in :

vega[0]vs1->AbandonManager()

Where vs1 is a pointer to a VSPlot.

If a manager creates a VSPlot called "toto", it will delete all plots named "toto" that it may have created before. Thus, if one wants to display a part of a vector in one pad, and a zoom of the same vector in another pad, he should do something special. This behavior was chosen because, given the big number of plots potentially drawn, the user could easily forget he is allocating memory for each plot and should release it.

The special thing to do if one wants to keep a created VSPlot is to call the method AbandonManager(). One can refer to examples in macros peak.C and peak2.C.

VI.2. Graphical managers of frames

VI.2.1. Definition of managers

The manager classes are the heart of the graphical part of the VEGA environment. They make the interface between the objects and libraries used by GW experiments, such as the framelib, frames and vectors, and the ROOT framework.

VManagerFrameL, is a class describing a manager that uses the Framelib for all it's input/output of frames/vectors. We can have in the future a class named VManagerFramecpp that will use the frame class library Framecpp instead. It is not important to understand what VManagerFrameL exactly does, this will be explained in the next paragraph.

What do we want a general VManager to do ? Basically anything related to the interface between frames and VEGA. A first tentative list, that will soon get longer may be :

Drawing of vectors/series
Drawing of distributions of series/data
Management of the VSPlots produced
Etc...

VI.2.2. Building a manager : the global gVM

The first thing to know when one wants to use a manager is how to fire it up. One starts a manager by building a new object of a VManagerXXX class. For example to start a manager using the FrameLib, one does :

vmgr = new VManagerFrameL();

This is valid with the interpreter. In a program, one should also declare the vmgr variable as a pointer to a VManagerFrameL.

In VEGA, there is a global variable called gVM that is already declared as a VManagerFrameL and one can use it as he/she wants. gVM is the current VManager. If one declares another manager, gVM will point to it.

In practice, you can just forget about building a manager and use the standard gVM provided

VI.2.3. General use

Once building is done, which is by default the case when you launch vega, one has to call methods from the declared gVM object. For example :

gVM->Draw(frame,"adc.IFO_DMRO");

will draw the data from the "IFO_DMRO" adc contained in the frame "frame" which is a FrameH structure loaded with standard Framelib calls.

We are going in the next paragraphs to concentrate on the manager that uses the Framelib. Almost the same routines will be available once Fcl is released and interfaced with VEGA, i.e. when a VManagerFcl class is written.

VI.2.4. Drawing methods

VI.2.4.1. Drawing contents and distribution of frame vectors

Simple drawing of a vector in the form of a VSPlot :

void Draw(FrVect vect, Float_t offset, Float_t dur=1e20, Option_t *option="");

where

vect is a frame vector of type FrVect that has been extracted from a frame.
offset is the offset from which the drawing starts, with respect to the starting value of the vector (i.e. series).
dur is the length of the drawn part of the vector (i.e. series).
option is an option string that is passed to the plot that is drawn. For the time being, this is equivalent to the TH1 class drawing options. The reader can go to the address http://root.cern.ch/ to see the list of options in the drawing of a TH1 (see Classes and Members Reference Guide).

If offset and dur are omitted, the whole vector is drawn. It is also possible to specify only the drawing option.

A VSPlot is drawn in the current pad or canvas. The adress of this plot is added to the list of plots managed by this manager. The name of the plot becomes the name of the FrVect.

If another VSPlot has the same name in the list of plots managed by the manager, the oldest one is deleted by default. It is possible to avoid the deletion by detaching the old VSPlot from the management of any VManager, using the VSPlot method AbandonManager().

Examples :

Suppose a time series vector vect contains data starting at t=0, and has a duration of 1 s, with 50000 samples.

gVM->Draw(vect) will draw the entire series.

gVM ->Draw(vect,0.3,0.2) will draw the series starting at t ₀=0.3 s for a duration of 0.2 s, which represents 10000 samples.

gVM ->Draw(vect,"same") will draw the entire series on the same plot as a previous draw.

Drawing the distribution (histogram) of the data contained in an FrVect

void DrawHist(FrVect vect, Float_t offset=-1e20, Float_t dur=1e20, const Text_t *hwork="", Option_t *option="");

Makes a distribution of the values contained in a series. This method generates or uses a histogram of the class TH1F. If the histogram is generated, its limits are determined automatically to be +/- 5% of the max and min value in the series and this histogram has 100 bins.

The variables are :

offset is the offset from which the histograming starts, with respect to the starting value of the series.
dur is the length of the histogramed part of the series.
hwork is, optionally, the name of an existing histogram, for example "histo1". This allows using any limits for the histogram, provided the user defines one before calling DrawHist. The contents of the histogram are erased before filling by the new values, except if a "+" precedes the name, as in "+histo1". In this case, the data is appended to the histo. If the name hwork is given but there is no already existing histogram of that name, a new one is created with standard characteristics.
option is an option string that is passed to the drawn histogram of type TH1F. For the time being, this is equivalent to the TH1 class drawing options. The reader can go to the address http://root.cern.ch/ to see the list of options in the drawing of a TH1 (see Classes and Members Reference Guide).

Examples :

Let's assume that a time series vect contains data starting at t=0, and has a duration of 1 s, with 50000 samples. The min value is -123, the max value is 212.

gVM->DrawHist(vect,0.2,0.4)

will draw the histogram of the values in vect beginning at t ₀=0.2 s for a duration of 0.4 s. The generated histogram has limits [-130,223].

h1 = new TH1F("h1","test histo",100,-25,25);

gVM->DrawHist(vect,0.2,0.4,"h1");

gVM->DrawHist(vect,0.2,0.4,"+h1");

This will do the same thing as before but without erasing the values of the histogram before filling. It will just add those to the existing ones. That way, one can span more than one series for one given histogram.

VI.2.4.2. Drawing selected contents or distribution of a frame

One can draw a selected adc or processed or simulated data without having to extract it first from a frame.

Simple drawing of a vector contained in a frame :

void Draw(FrameH frame, Text_t* typeAndName, Float_t offset, Float_t dur=1e20, Option_t *option="");

where

frame is a frame of type FrameH that has been read from a file.
offset is the offset from which the drawing starts, with respect to the starting value of the vector (i.e. series).
dur is the length of the drawn part of the vector (i.e. series).
typeAndNameis a pointer to an array of char that describes the type (adc, proc or sim) and name of the frame element to be extracted and drawn. It has the following structure : "type.name". For example "adc.IFO_DMRO" is a good format. It will look for the adc data of the adc named "IFO_DMRO". It is possible to give only the name, if there is no ambiguity. In that case, adc data will be searched first for that name, then proc and then sim data. If more than one identical name was used, the first found series will be extracted.
option is an option string that is passed to the plot that is drawn. For the time being, this is equivalent to the TH1 class drawing options. The reader can go to the address http://root.cern.ch/ to see the list of options in the drawing of a TH1 (see Classes and Members Reference Guide).

If offset and dur are omitted, the whole vector is drawn. It is also possible to specify only the drawing option.

A VSPlot is drawn in the current pad or canvas. The adress of this plot is added to the list of plots managed by this manager. The name of the plot becomes the name of the FrXXXData extracted (XXX = Adc, Proc or Sim).

Examples :

Suppose a FrAdcData vector "MYGO_ADC" contains data starting at t=0, and has a duration of 1 s, with 50000 samples in a frame called " frame".

gVM->Draw(frame,"adc.MYGO_ADC") will draw the entire series.

gVM ->Draw(frame,"MYGO_ADC",0.3,0.2) will draw the series starting at t ₀=0.3 s for a duration of 0.2 s, which represents 10000 samples. Since no type (adc proc or sim) was given, it will search for the first data occurring with this name in the frame.

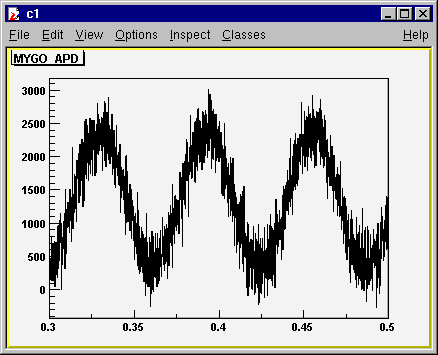

Example of such a plot :

gVM ->Draw(frame,"MYGO_ADC","same") will draw the entire series on the same plot as a previous draw.

Drawing the distribution (histogram) of the data of a vector contained in a frame

void DrawHist(FrameH frame, Text_t* typeAndName, Float_t offset=-1e20, Float_t dur=1e20, const Text_t *hwork="", Option_t *option="");

Makes a distribution of the values contained in a vector of type FrXXXData (XXX = Adc, Proc or Sim) contained in the frame "frame" and of type and name typeAndName. This method generates or uses a histogram of the class TH1F. If the histogram is generated, its limits are determined automatically to be +/- 5% of the max and min value in the series and this histogram has 100 bins.

The variables are :

frame is a frame of type FrameH that has been read from a file.
typeAndNameis a pointer to an array of char that describes the type (adc, proc or sim) and name of the frame element to be extracted and drawn. It has the following structure : "type.name". For example "adc.IFO_DMRO" is a good format. It will look for the adc data of the adc named "IFO_DMRO". It is possible to give only the name, if there is no ambiguity. In that case, adc data will be searched first for that name, then proc and then sim data. If more than one identical name was used, the first found series will be extracted.
offset is the offset from which the histograming starts, with respect to the starting value of the series.
dur is the length of the histogramed part of the series.
hwork is, optionally, the name of an existing histogram, for example "histo1". This allows using any limits for the histogram, provided the user defines one before calling DrawHist. The contents of the histogram are erased before filling by the new values, except if a "+" precedes the name, as in "+histo1". In this case, the data is appended to the histo. If the name hwork is given but there is no already existing histogram of that name, a new one is created with standard characteristics.
option is an option string that is passed to the drawn histogram of type TH1F. For the time being, this is equivalent to the TH1 class drawing options. The reader can go to the address http://root.cern.ch/ to see the list of options in the drawing of a TH1 (see Classes and Members Reference Guide).

Examples :

Let's assume that an FrAdcData vector contains data starting at t=0, and has a duration of 1 s, with 50000 samples. The min value is -123, the max value is 212 in a frame called " frame".

gVM->DrawHist(frame,"adc.MYGO_ADC",0.2,0.4)

will draw the histogram of the values in the adc "MYGO_ADC" beginning at t ₀=0.2 s for a duration of 0.4 s. The generated histogram has limits [-130,223].

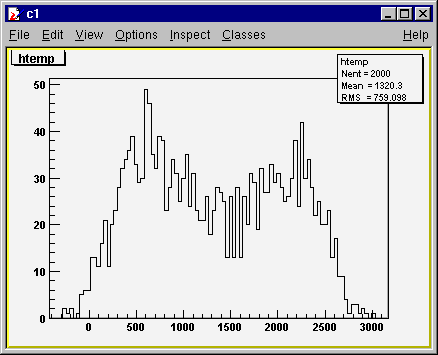

Example of such a plot :

h1 = new TH1F("h1","test histo",100,-25,25);

gVM->DrawHist(frame,"MYGO_ADC",0.2,0.4,"h1");

will generate the histogram h1, with limits [-25,25]. Calling the DrawHist method will fill this histogram but only with the values in its range. So one can concentrate on the distribution of values around 0. Since no type (adc proc or sim) was given, it will search for the first data occurring with this name in the frame.

gVM->DrawHist(frame,"MYGO_ADC",0.2,0.4,"+h1");

VI.2.5. Management of the plots produced

One can get a pointer to the last created and plotted VSPlot :

VSPlot* GetLastPlot()

As in :

vega[0]VSPlot* vs1 = gVM->GetLastPlot()

This could be useful if one wants to modify this VSPlot, for example to embellish it. An example is given in the macro "peak2.C".

One can detach a VSPlot from the manager that created it :

vega[0]vs1->AbandonManager()

Where vs1 is a pointer to a VSPlot.

One of the roles of VManagers is to handle and manage all the VSPlots that they produced. As was already explained, if a manager creates a VSPlot called "toto" during a gVM->Draw, it will delete all plots named "toto" that it may have created before. Thus, if one wants to display a part of a vector in one pad, and a zoom of the same vector in another pad, he should do something special. This behavior was chosen because, given the big number of plots potentially drawn, the user could easily forget he is allocating memory for each plot and should release it.

The special thing to do if one wants to keep a created VSPlot is to call the method AbandonManager() :

An example is given in the macros "peak.C" and "peak2.C"

VI.3. Representing slow monitoring data

There are two main powerful drawing methods for slow monitoring data, i.e. VNtuples. They both enable putting selections, i.e. drawing data that pass given cuts

The first method draws graphs (sets of points defined by two coordinates).

void DrawGraph(Text_t* varlist, Test_t* cuts, Text_t* option, Int_t nentries=1000000000, Int_t firstentry=0)

varlist is an expression of the general form e1:e2 where e1,etc is a formula referencing a combination of the ntuple columns
Example:
varexp = x:y simplest case: draw a plot of points (x,y), x and y representing columns named x and y
= t:sqrt(x) : draw plot of sqrt(x) vs t
= log(t):x*y/z
Note that the variables e1 or e2 may contain a selection.
example, if e1= x*(y<0), the value plotted will be x if y<0 and will be 0 otherwise.
cuts is a selection expression. Only ntuple entries passing this selection will enter into the graph. For example, it could be something like ”t>10 && sin(TP1/6.28) <0”. One can use standard C operators (+ - * / && || !...) and usual mathematical functions, including transcendental ones.
option is an option for drawing. The available options are :

option = 'A'	Axis are drawn around the graph
option = 'T'	Time is used for axis labels (not a standard graph feature, added by VEGA)
option = 'P'	The current marker is drawn at each point
option = 'L'	A simple polyline between all the points is drawn
option = 'F'	A fill area is drawn ('CF' draw a smooth fill area)
option = 'C'	A smooth Curve is drawn
option = '*'	A Star is plotted at each point
option = 'B'	A Bar chart is drawn at each point

〈 Options should be combined to obtain the desired effect. Typically, the first graph is drawn with option 'AP', to draw the axis, and subsequent plots that the user wants to overlay are plotted with the 'P' option alone.
nentries is the maximum number of entries to be processed in the ntuple
firstentry is the first entry to be processed

The second method draws histograms. This is mainly used for statistical studies.

void Draw(Text_t* varlist, Test_t* cuts, Text_t* option, Int_t nentries=1000000000, Int_t firstentry=0)

Unlike in DrawGraph, which needs at least two variables to plot a graph, one can plot a 1D, 2D or 3D histogram. The variables have the same meaning as in DrawGraph() but the varlist can contain the name of an existing histo and options are not the same :

varlist is an expression of the general form e1:e2 where e1,etc is a formula referencing a combination of the ntuple columns
Example:
varexp = x:y simplest case: draw a plot of points (x,y), x and y representing columns named x and y
= t:sqrt(x) : draw plot of sqrt(x) vs t
= log(t):x*y/z
Note that the variables e1 or e2 may contain a selection.
example, if e1= x*(y<0), the value plotted will be x if y<0 and will be 0 otherwise.
One can save the result of Draw to an histogram :
===================================
By default the temporary histogram created is called htemp.
If varlist contains >>hnew (following the variable(s) name(s), the new histogram created is called hnew and it is kept in the current directory (See the class TDirectory of ROOT).
Example:
vnt->Draw("sqrt(x)>>hsqrt","y>0")
will draw sqrt(x) and save the histogram as "hsqrt" in the current directory.

By default, the specified histogram is reset. To continue to append data to an existing histogram, use "+" in front of the histogram name;
vnt->Draw("sqrt(x)>>+hsqrt","y>0")
will not reset hsqrt, but will continue filling.
option is an option for drawing
The following options are supported on all types:

"SAME"	Superimpose on previous picture in the same pad
"CYL"	Use Cylindrical coordinates
"POL"	Use Polar coordinates
"SPH"	Use Spherical coordinates
"PSR"	Use PseudoRapidity/Phi coordinates
"LEGO"	Draw a lego plot with hidden line removal
"LEGO1"	Draw a lego plot with hidden surface removal
"LEGO2"	Draw a lego plot using colors to show the cell contents
"SURF"	Draw a surface plot with hidden line removal
"SURF1"	Draw a surface plot with hidden surface removal
"SURF2"	Draw a surface plot using colors to show the cell contents
"SURF3"	same as SURF with in addition a contour view drawn on the top
"SURF4"	Draw a surface using Gouraud shading

〈
The following options are supported for 1-D types:

"AH"	Draw histogram, but not the axis labels and tick marks
"B"	Bar chart option
"C"	Draw a smooth Curve througth the histogram bins
"E"	Draw error bars
"E0"	Draw error bars including bins with o contents
"E1"	Draw error bars with perpendicular lines at the edges
"E2"	Draw error bars with rectangles
"E3"	Draw a fill area througth the end points of the vertical error bars
"E4"	Draw a smoothed filled area through the end points of the error bars
"L"	Draw a line througth the bin contents
"P"	Draw current marker at each bin
"*H"	Draw histogram with a * at each bin

〈
The following options are supported for 2-D types:

"ARR"	arrow mode. Shows gradient between adjacent cells
"BOX"	a box is drawn for each cell with surface proportional to contents
"COL"	a box is drawn for each cell with a color scale varying with contents
"COLZ"	same as "COL". In addition the color mapping is also drawn
"CONT"	Draw a contour plot (same as CONT3)
"CONT0"	Draw a contour plot using colors to distinguish contours
"CONT1"	Draw a contour plot using line styles to distinguish contours
"CONT2"	Draw a contour plot using the same line style for all contours
"CONT3"	Draw a contour plot using fill area colors
"FB"	With LEGO or SURFACE, suppress the Front-Box
"BB"	With LEGO or SURFACE, suppress the Back-Box
"SCAT"	Draw a scatter-plot (default)
