/data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/lcio/src/cpp/src/EXAMPLE/lcrtrelation.cc File Reference

#include "lcio.h"
#include "IO/LCReader.h"
#include "IMPL/LCTOOLS.h"
#include "EVENT/LCCollection.h"
#include "EVENT/Track.h"
#include "EVENT/Cluster.h"

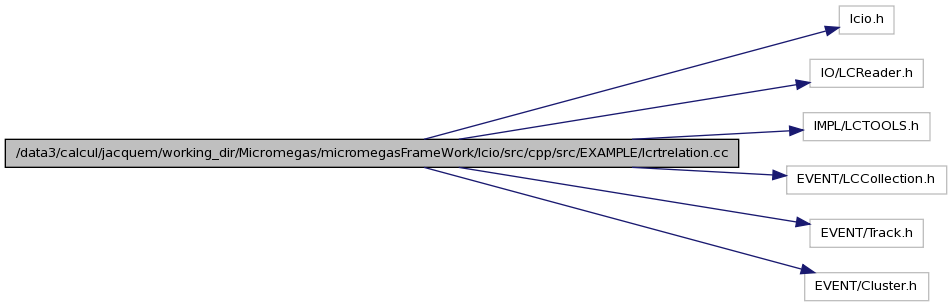

Include dependency graph for lcrtrelation.cc:

Go to the source code of this file.

Classes
struct	Index
struct	Mass
struct	ParticleIDs
struct	UserClass
struct	MyUserExtension
struct	TrkCluLink
struct	ParentDaughter
Functions
int	main (int argc, char **argv)

---

Function Documentation

int main	(	int	argc,
		char **	argv
	)

Example/test program for new runtime extensions and relations requires recjob.slcio (from simjob/recjob).

Definition at line 53 of file lcrtrelation.cc.

                                {


  LCReader* lcReader = LCFactory::getInstance()->createLCReader() ;

  lcReader->open( "recjob.slcio" ) ;

  LCEvent* evt ;
  int nEvents = 0 ;


  //----------- the event loop -----------
  while( (evt = lcReader->readNextEvent()) != 0 && nEvents < 1 ) {


    LCCollection* mcpcol = evt->getCollection("MCParticle" ) ;

    int nmcp = mcpcol->getNumberOfElements() ;

    for(int i=0 ; i< nmcp  ; i++ ){

      MCParticle*  mcp = dynamic_cast<MCParticle*>( mcpcol->getElementAt(i) ) ;


      // ints can be assigned directly - w/o pointer !
      // make every particle know it's index in the collection
      mcp->ext<Index>() = i ;

      mcp->ext<Mass>() = mcp->getMass() ;

      // assign a user object to each particle:

      mcp->ext<MyUserExtension>() = new UserClass ;

      mcp->ext<MyUserExtension>()->someInt = i*42 ;
      mcp->ext<MyUserExtension>()->aFloat = i*3.1415 ;

      // assign some pid strings - note ownership is taken by particle

      if( ! (i % 2) )

        mcp->ext<ParticleIDs>()->push_back( new std::string("charged")  )  ;

      else

        mcp->ext<ParticleIDs>()->push_back( new std::string("neutral")  )  ;

      if( ! (i % 3) )

        mcp->ext<ParticleIDs>()->push_back( new std::string("hadron")  )  ;

      else if( ! ((i+1) % 3) )

        mcp->ext<ParticleIDs>()->push_back( new std::string("photon")  )  ;

      else if( ! ((i+2) % 3) )

        mcp->ext<ParticleIDs>()->push_back( new std::string("electron")  )  ;


      // copy the parent - daughter relationship:

      const MCParticleVec& daughters = mcp->getDaughters() ;

      for(unsigned j=0 ; j< daughters.size()   ; j++ ){

        add_relation<ParentDaughter>( mcp, daughters[j] ) ;
      }


    }


    LCCollection* trkcol = evt->getCollection("SomeTracks" ) ;
    LCCollection* clucol = evt->getCollection("SomeClusters" ) ;

    if( trkcol && clucol ) {

      int nclu = clucol->getNumberOfElements() ;
      int ntrk = trkcol->getNumberOfElements() ;


      for(int j=0 ; j< ntrk  ; j++ ){

        Track*   trk = dynamic_cast<Track*>   ( trkcol->getElementAt(j) ) ;

        // ints can be assigned directly - w/o pointer !
        // make every track know it's index in the collection
        trk->ext<Index>() = j ;

        for(int k=0 ; k< nclu ; k++ ){

          Cluster* clu = dynamic_cast<Cluster*> ( clucol->getElementAt(k) ) ;

          // make every cluster know it's index in the collection
          if( j == 0 )
            clu->ext<Index>() = k ;

          if( j % 2  && ( k == j || k == j-1 ) )

            add_relation<TrkCluLink>( trk ,clu );
        }
      }


      // --- now print the relations:

      std::cout << "   ---- tracks assigned to clusters: " << std::endl ;
      for(int j=0 ; j< ntrk ; j++ ){


        Track*   trk = dynamic_cast<Track*>   ( trkcol->getElementAt(j) ) ;

        std::cout << " track " << trk->ext<Index>()  << " assigned to clusters :   " ;

        TrkCluLink::to::rel_type clulist =  trk->rel<TrkCluLink::to>() ;

        for( TrkCluLink::to::const_iterator iclu = clulist->begin() ;
             iclu != clulist->end() ; ++iclu ){

          Cluster* clu = *iclu ; // iterator is of type pointer to container element

          std::cout <<  clu->ext<Index>() << ", " ;
        }
        std::cout << std::endl ;
      }

      std::cout << "   ----- now the inverse relation : " << std::endl ;

      for(int k=0 ; k< nclu ; k++ ){

        Cluster* clu = dynamic_cast<Cluster*> ( clucol->getElementAt(k) ) ;


        Track* trk =  clu->rel<TrkCluLink::from>() ;

        std::cout << " cluster "
                  << clu->ext<Index>() << " assigned from track:   " ;
        if( trk != 0 )
          std::cout << trk->ext<Index>() << std::endl ;
        else
          std::cout << " none "  << std::endl ;
      }

      std::cout << std::endl ;


      // print MCParticle extensions and relations:

      std::cout << "   ----- MCParticles in event : : " << std::endl ;

      nmcp = ( nmcp < 10 ? nmcp : 10 ) ;

      MCParticle*  mcp0 = 0 ;   // pointer for first particle

      for(int i=0 ; i<nmcp  ; i++ ){

        MCParticle*  mcp = dynamic_cast<MCParticle*>( mcpcol->getElementAt(i) ) ;

        if( i == 0 ) mcp0 = mcp  ;

        ParticleIDs::ext_type pidv =  mcp->ext<ParticleIDs>() ;

        std::cout <<  "   --- particle " << mcp->ext<Index>()  << " found to be : " ;

        for( ParticleIDs::const_iterator ipid = pidv->begin() ; ipid != pidv->end(); ++ipid){

          std::cout << **ipid << ", " ;
        }

        if( ( *(*pidv)[0] == "charged" && *(*pidv)[1] == "photon"  ) ||
            ( *(*pidv)[0] == "neutral" && *(*pidv)[1] == "electron")   )

          std::cout << " --- ooops ! " ;

        std::cout << std::endl ;



        std::cout <<  "   --- particle " << mcp->ext<Index>()   <<  " user extension : "
                  << " someInt: " << mcp->ext<MyUserExtension>()->someInt
                  << " aFloat:  " << mcp->ext<MyUserExtension>()->aFloat
                  << std::endl ;


        // now check that the runtime relation for daughters:

        const MCParticleVec& daughters = mcp->getDaughters() ;

        std::cout <<  "   --- particle " << mcp->ext<Index>()   <<  " daughters: "
                  << std::endl ;

        std::cout <<  "      --- from MCParticle:  " ;

        for(MCParticleVec::const_iterator idau = daughters.begin() ;
            idau != daughters.end() ; ++idau){

          std::cout << (*idau)->ext<Index>() << ", " ;
        }
        std::cout << std::endl ;


        std::cout <<  "      --- from runtime rel: " ;


        ParentDaughter::to::rel_type daulist =  mcp->rel<ParentDaughter::to>() ;

        for( ParentDaughter::to::const_iterator idau = daulist->begin();
             idau != daulist->end(); ++idau){

          std::cout << (*idau)->ext<Index>() << ", " ;
        }
        std::cout << std::endl ;


        std::cout <<  "   --- particle " << mcp->ext<Index>()   <<  " parents: "
                  << std::endl ;

        std::cout <<  "      --- from MCParticle:  " ;


        const MCParticleVec& parents = mcp->getParents() ;

        for(MCParticleVec::const_iterator ipar = parents.begin() ;
            ipar != parents.end() ; ++ipar){

          std::cout << (*ipar)->ext<Index>() << ", " ;
        }
        std::cout << std::endl ;


        std::cout <<  "      --- from runtime rel: " ;


        ParentDaughter::from::rel_type parlist =  mcp->rel<ParentDaughter::from>() ;

        for( ParentDaughter::from::const_iterator ipar = parlist->begin();
             ipar != parlist->end(); ++ipar){

          std::cout << (*ipar)->ext<Index>() << ", " ;
        }
        std::cout << std::endl ;


        // for demonstration we can rearange the daughter relationships:
        if(i>0)

          merge_relations<ParentDaughter>( mcp0 , mcp ) ;
      }


      for(int i=0 ; i<nmcp  ; i++ ){

        MCParticle*  mcp = dynamic_cast<MCParticle*>( mcpcol->getElementAt(i) ) ;

        std::cout <<  "   --- particle " << mcp->ext<Index>()  << " ( mass: " << mcp->ext<Mass>() << ") "
                  <<  " daughters after merging : " ;


        ParentDaughter::to::rel_type daulist =  mcp->rel<ParentDaughter::to>() ;

        for( ParentDaughter::to::const_iterator idau = daulist->begin();
             idau != daulist->end(); ++idau){

          std::cout << (*idau)->ext<Index>() << ", " ;
        }
        std::cout << std::endl ;

      }


    } else {
      std::cout << " couldn't find Track and Cluster collection in event !" << std::endl ;
    }

    nEvents ++ ;
  }
  // -------- end of event loop -----------


  lcReader->close() ;
  delete lcReader ;
  return 0 ;
}

---
