ChannelHit Class Reference

#include <ChannelHit.hh>

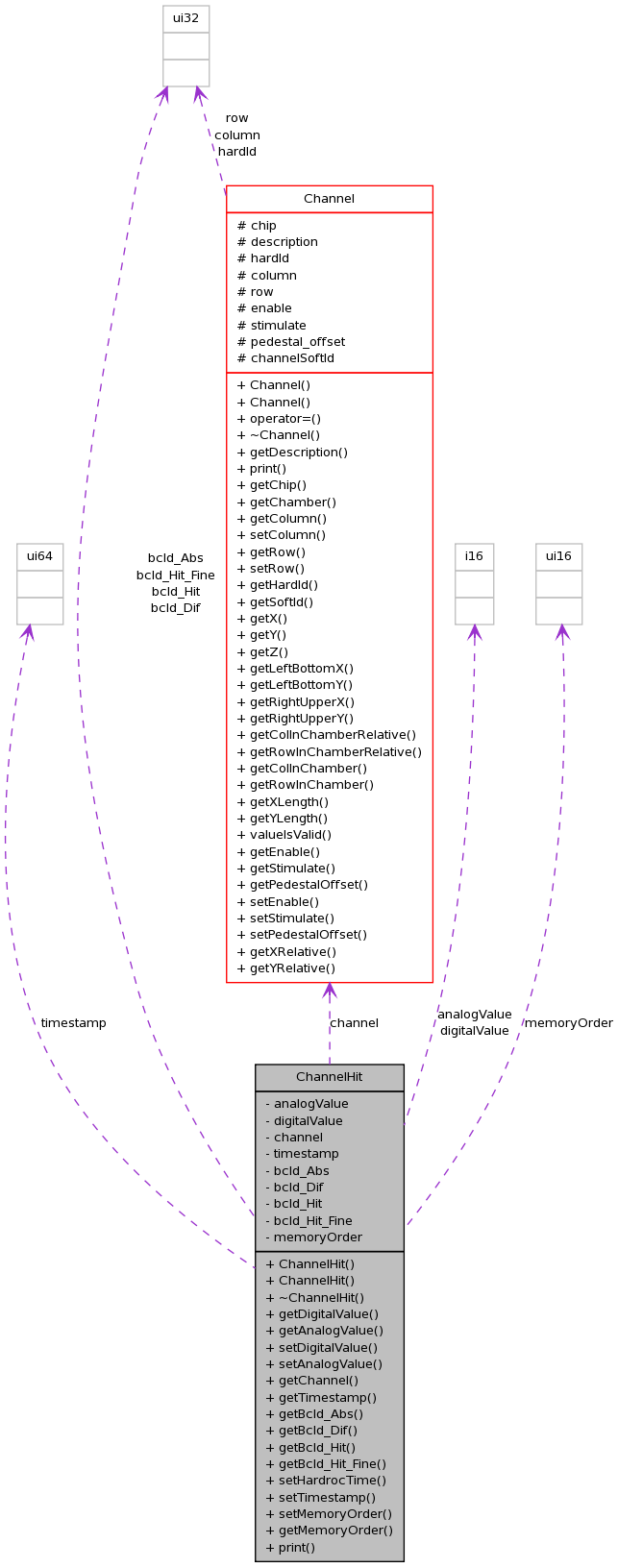

Collaboration diagram for ChannelHit:


Public Member Functions
	ChannelHit (const Channel &)
	ChannelHit (const Channel &, const i16 aDigitalValue, const i16 aAnalogValue)
virtual	~ChannelHit ()
i16	getDigitalValue (void) const
i16	getAnalogValue (void) const
bool	setDigitalValue (i16 aValue)
bool	setAnalogValue (i16 aValue)
const Channel &	getChannel (void) const
const ui64	getTimestamp (void) const
const ui32	getBcId_Abs (void) const
const ui32	getBcId_Dif (void) const
const ui32	getBcId_Hit (void) const
const ui32	getBcId_Hit_Fine (void) const
void	setHardrocTime (const ui64 ts, const ui32 aBcId_Abs, const ui32 aBcId_Dif, const ui32 aBcId_Hit, const ui32 aBcId_Hit_Fine)
void	setTimestamp (const ui64 ts)
void	setMemoryOrder (const ui16 order)
ui16	getMemoryOrder (void) const
void	print (void) const
Private Attributes
i16	analogValue
i16	digitalValue
const Channel &	channel
ui64	timestamp
ui32	bcId_Abs
ui32	bcId_Dif
ui32	bcId_Hit
ui32	bcId_Hit_Fine
ui16	memoryOrder

Detailed Description

CLASS ChannelHit //

Definition at line 21 of file ChannelHit.hh.

Constructor & Destructor Documentation

ChannelHit::ChannelHit ( const Channel & )

Definition at line 14 of file ChannelHit.cpp.

00014                                              :channel(aChannel)
00015 {
00016   timestamp = 0;
00017   bcId_Abs = bcId_Dif = bcId_Hit = bcId_Hit_Fine = memoryOrder =  0;
00018 //  FILE_LOG(logDEBUG) << "-----ChannelHit constructor"<< endl;
00019 }

ChannelHit::ChannelHit	(	const Channel &	,
		const i16	aDigitalValue,
		const i16	aAnalogValue
	)

Definition at line 22 of file ChannelHit.cpp.

00022                                                                                                : channel(aChannel), digitalValue(aDigitalValue), analogValue(aAnalogValue)
00023 {
00024   timestamp = 0;
00025   bcId_Abs = bcId_Dif = bcId_Hit = bcId_Hit_Fine = 0;
00026   //threshold_0 = 0;
00027   //threshold_1 = 0;
00028  // threshold_2 = 0;
00029   //FILE_LOG(logDEBUG) << "-----ChannelHit constructor"<< endl;
00030 }

ChannelHit::~ChannelHit ( ) [virtual]

Definition at line 33 of file ChannelHit.cpp.

00034 {
00035   //FILE_LOG(logDEBUG) << "------ChannelHit destructeur:" <<  endl;
00036 }

Member Function Documentation

i16 ChannelHit::getDigitalValue ( void ) const [inline]

Definition at line 30 of file ChannelHit.hh.

Referenced by MTChannel::MTChannel().

00030 { return digitalValue; }

i16 ChannelHit::getAnalogValue ( void ) const [inline]

Definition at line 31 of file ChannelHit.hh.

Referenced by MTChannel::MTChannel(), and sorter::operator()().

00031 { return analogValue; }

bool ChannelHit::setDigitalValue ( i16 aValue ) [inline]

Definition at line 32 of file ChannelHit.hh.

00032 { digitalValue = aValue; return true; }

bool ChannelHit::setAnalogValue ( i16 aValue ) [inline]

Definition at line 33 of file ChannelHit.hh.

00033 { analogValue = aValue; return true; }

const Channel& ChannelHit::getChannel ( void ) const [inline]

Definition at line 34 of file ChannelHit.hh.

Referenced by MTChannel::MTChannel().

00034 { return channel; }

const ui64 ChannelHit::getTimestamp ( void ) const [inline]

Definition at line 35 of file ChannelHit.hh.

Referenced by MTChannel::MTChannel().

00035 { return(timestamp); };

const ui32 ChannelHit::getBcId_Abs ( void ) const [inline]

Definition at line 36 of file ChannelHit.hh.

Referenced by MTChannel::MTChannel().

00036 { return(bcId_Abs); };

const ui32 ChannelHit::getBcId_Dif ( void ) const [inline]

Definition at line 37 of file ChannelHit.hh.

Referenced by MTChannel::MTChannel().

00037 { return(bcId_Dif); };

const ui32 ChannelHit::getBcId_Hit ( void ) const [inline]

Definition at line 38 of file ChannelHit.hh.

Referenced by MTChannel::MTChannel().

00038 { return(bcId_Hit); };

const ui32 ChannelHit::getBcId_Hit_Fine ( void ) const [inline]

Definition at line 39 of file ChannelHit.hh.

Referenced by MTChannel::MTChannel().

00039 { return(bcId_Hit_Fine); };

void ChannelHit::setHardrocTime	(	const ui64	ts,
		const ui32	aBcId_Abs,
		const ui32	aBcId_Dif,
		const ui32	aBcId_Hit,
		const ui32	aBcId_Hit_Fine
	)			`[inline]`

Definition at line 40 of file ChannelHit.hh.

Referenced by MicrorocReader::newHit(), Hardroc2Reader::newHit(), Hardroc1Reader::newHit(), and DiracReader::newHit().

00041              { timestamp = ts, bcId_Abs = aBcId_Abs, bcId_Dif = aBcId_Dif, bcId_Hit = aBcId_Hit;  bcId_Hit_Fine= aBcId_Hit_Fine; };

void ChannelHit::setTimestamp ( const ui64 ts ) [inline]

Definition at line 42 of file ChannelHit.hh.

00042 { timestamp = ts; };

void ChannelHit::setMemoryOrder ( const ui16 order ) [inline]

Definition at line 43 of file ChannelHit.hh.

Referenced by MicrorocReader::newHit().

00043 { memoryOrder = order; };

ui16 ChannelHit::getMemoryOrder ( void ) const [inline]

Definition at line 44 of file ChannelHit.hh.

Referenced by MTChannel::MTChannel().

00044 { return memoryOrder ;}  ;

void ChannelHit::print ( void ) const

Definition at line 38 of file ChannelHit.cpp.

00039 {
00040   //FILE_LOG(logDEBUG) << "---ChannelHit.print():" <<   endl;
00041   channel.print();
00042   FILE_LOG(logINFO) << "Digital value: " << digitalValue << endl;
00043   FILE_LOG(logINFO) << "Analog value: " << analogValue << endl;
00044 }

Member Data Documentation

i16 ChannelHit::analogValue [private]

Definition at line 53 of file ChannelHit.hh.

Referenced by getAnalogValue(), print(), and setAnalogValue().

i16 ChannelHit::digitalValue [private]

Definition at line 54 of file ChannelHit.hh.

Referenced by getDigitalValue(), print(), and setDigitalValue().

const Channel& ChannelHit::channel [private]

Definition at line 55 of file ChannelHit.hh.

Referenced by getChannel(), and print().

ui64 ChannelHit::timestamp [private]

Definition at line 57 of file ChannelHit.hh.

Referenced by ChannelHit(), getTimestamp(), setHardrocTime(), and setTimestamp().

ui32 ChannelHit::bcId_Abs [private]

Definition at line 58 of file ChannelHit.hh.

Referenced by ChannelHit(), getBcId_Abs(), and setHardrocTime().

ui32 ChannelHit::bcId_Dif [private]

Definition at line 59 of file ChannelHit.hh.

Referenced by ChannelHit(), getBcId_Dif(), and setHardrocTime().

ui32 ChannelHit::bcId_Hit [private]

Definition at line 60 of file ChannelHit.hh.

Referenced by ChannelHit(), getBcId_Hit(), and setHardrocTime().

ui32 ChannelHit::bcId_Hit_Fine [private]

Definition at line 61 of file ChannelHit.hh.

Referenced by ChannelHit(), getBcId_Hit_Fine(), and setHardrocTime().

ui16 ChannelHit::memoryOrder [private]

Definition at line 62 of file ChannelHit.hh.

Referenced by ChannelHit(), getMemoryOrder(), and setMemoryOrder().

The documentation for this class was generated from the following files:

/data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/include/event/ChannelHit.hh
/data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/src/event/ChannelHit.cpp
