Run Class Reference

#include <Run.hh>

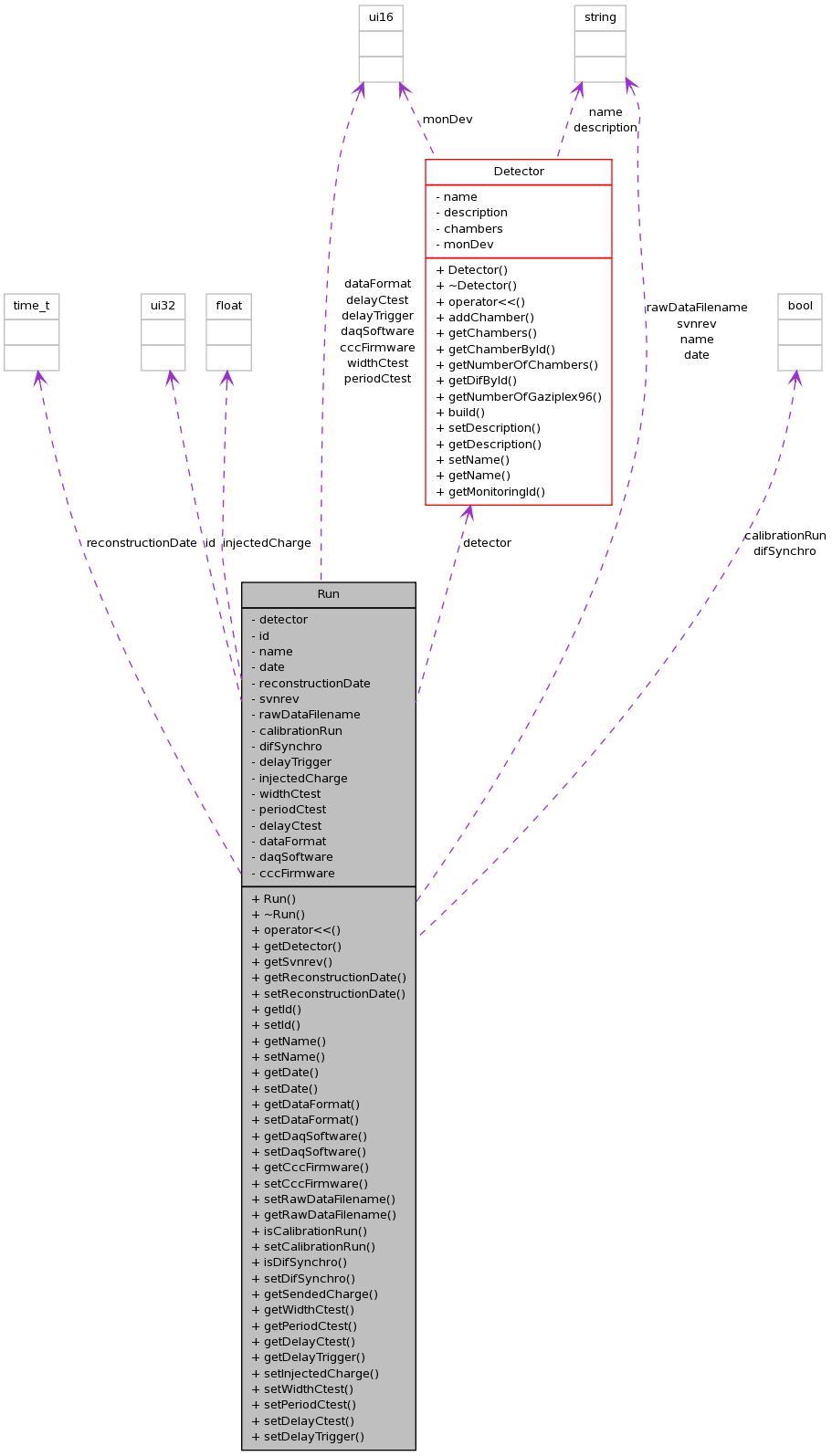

Collaboration diagram for Run:

[legend]List of all members.

Public Member Functions
	Run (Detector &aDetector)
	~Run ()
std::ostream &	operator<< (std::ostream &out) const
Detector &	getDetector (void) const
std::string	getSvnrev () const
const time_t	getReconstructionDate (void) const
void	setReconstructionDate (time_t _aDate)
ui32	getId (void) const
void	setId (const ui32 aId)
std::string	getName (void) const
void	setName (const std::string aName)
std::string	getDate (void) const
void	setDate (const std::string aDate)
ui16	getDataFormat () const
void	setDataFormat (ui16 value)
ui16	getDaqSoftware () const
void	setDaqSoftware (ui16 value)
ui16	getCccFirmware () const
void	setCccFirmware (ui16 value)
void	setRawDataFilename (std::string value)
std::string	getRawDataFilename (void) const
bool	isCalibrationRun (void) const
void	setCalibrationRun (bool aValue)
bool	isDifSynchro (void) const
void	setDifSynchro (bool aValue)
float	getSendedCharge (void) const
ui16	getWidthCtest (void) const
ui16	getPeriodCtest (void) const
ui16	getDelayCtest (void) const
ui16	getDelayTrigger (void) const
void	setInjectedCharge (float aValue)
void	setWidthCtest (ui16 aValue)
void	setPeriodCtest (ui16 aValue)
void	setDelayCtest (ui16 aValue)
void	setDelayTrigger (ui16 aValue)
Private Attributes
Detector &	detector
ui32	id
std::string	name
std::string	date
time_t	reconstructionDate
std::string	svnrev
std::string	rawDataFilename
bool	calibrationRun
bool	difSynchro
ui16	delayTrigger
float	injectedCharge
ui16	widthCtest
ui16	periodCtest
ui16	delayCtest
ui16	dataFormat
ui16	daqSoftware
ui16	cccFirmware
Friends
std::ostream &	operator<< (std::ostream &out, const Run &x)

---

Detailed Description

Definition at line 22 of file Run.hh.

---

Constructor & Destructor Documentation

Run::Run

(

Detector &

aDetector

)

Definition at line 17 of file Run.cpp.

                            : detector(aDetector)
{

  name = "";
  id = 0;
  time(&reconstructionDate);
  calibrationRun = false;
  difSynchro = false;
  svnrev = "$Revision: 1566 $";

  // calibration run only
  injectedCharge = 0;
  widthCtest   = 0;
  periodCtest  = 0;
  delayCtest   = 0;
        dataFormat   = 0;
  daqSoftware  = 0;
  cccFirmware  = 0;
}

Run::~Run

(

)

Definition at line 39 of file Run.cpp.

         {
  //FILE_LOG(logDEBUG) << "----Run destructor"<< endl;
}

---

Member Function Documentation

std::ostream& Run::operator<<

(

std::ostream &

out

)

const

Detector& Run::getDetector

(

void

)

const [inline]

Definition at line 61 of file Run.hh.

Referenced by MicrorocXDaqReader::getAcqData(), MicrorocLabviewReader::getAcqData(), Hardroc2XdaqReader::getAcqData(), Hardroc2LabviewReader::getAcqData(), Hardroc1Reader::getAcqData(), MicrorocLabviewReader::getAnalogData(), DiracReader::getConfigData(), TestMicrorocParser::getNextEvent(), Hardroc2XdaqReader::getNextEvent(), Hardroc2LabviewReader::getNextEvent(), Hardroc1Reader::getNextEvent(), DiracLabview::getNextEvent(), DifSynchroReader::getNextEvent(), Centaure::getNextEvent(), CalibMicrorocParser::getNextEvent(), CalibHR2Parser::getNextEvent(), CalibHR1Parser::getNextEvent(), MicrorocLabviewReader::getScData(), Hardroc2LabviewReader::getScData(), Hardroc1Reader::getScData(), DifSynchroReader::getScData(), Event::initChannelHitVector(), DiracReader::newHit(), MTRun::operator=(), MTEvent::operator=(), MicrorocSCReader::parseSC(), MicrorocSCReader::parseSCFromDb(), SteerDesc::setRun(), and DiracReader::storeDifInfo().

{ return detector; }

std::string Run::getSvnrev

(

)

const

Definition at line 57 of file Run.cpp.

Referenced by main(), and MTRun::operator=().

{
  string without = svnrev.substr(11);
  size_t len = without.length();
  return without.substr(0,len-2);
}

const time_t Run::getReconstructionDate

(

void

)

const [inline]

Definition at line 64 of file Run.hh.

Referenced by MTRun::operator=().

{ return reconstructionDate; }

void Run::setReconstructionDate

(

time_t

_aDate

)

[inline]

Definition at line 65 of file Run.hh.

{ reconstructionDate = _aDate;};

ui32 Run::getId

(

void

)

const [inline]

Definition at line 67 of file Run.hh.

Referenced by MicrorocXDaqReader::getNextEvent(), MTRun::operator=(), and MicrorocSCReader::parseSCFromDb().

{ return id; }

void Run::setId

(

const ui32

aId

)

[inline]

Definition at line 68 of file Run.hh.

Referenced by MicrorocXDaqReader::getNextEvent().

{ id = aId; }

std::string Run::getName

(

void

)

const [inline]

Definition at line 70 of file Run.hh.

Referenced by MTRun::operator=().

{ return name; }

void Run::setName

(

const std::string

aName

)

[inline]

Definition at line 71 of file Run.hh.

Referenced by CalibMicrorocParser::CalibMicrorocParser(), CalibHR2Parser::getNextEvent(), CalibHR1Parser::getNextEvent(), and TestMicrorocParser::TestMicrorocParser().

{ name = aName; }

std::string Run::getDate

(

void

)

const [inline]

Definition at line 73 of file Run.hh.

Referenced by MTRun::operator=().

{ return date; }

void Run::setDate

(

const std::string

aDate

)

[inline]

Definition at line 74 of file Run.hh.

Referenced by SteerDesc::setRun().

{ date = aDate; }

ui16 Run::getDataFormat

(

)

const [inline]

Definition at line 76 of file Run.hh.

Referenced by Hardroc1Reader::getAcqData(), MicrorocLabviewReader::getNextEvent(), Hardroc2XdaqReader::getNextEvent(), Hardroc2LabviewReader::getNextEvent(), Hardroc1Reader::getNextEvent(), MicrorocXDaqReader::getNextEvent(), DiracReader::getNextEvent(), DiracLabview::getNextEvent(), DifSynchroReader::getNextEvent(), MicrorocLabviewReader::getScData(), Hardroc2LabviewReader::getScData(), Hardroc1Reader::getScData(), DifSynchroReader::getScData(), and MTRun::operator=().

{ return dataFormat ; } ;

void Run::setDataFormat

(

ui16

value

)

[inline]

Definition at line 77 of file Run.hh.

Referenced by MicrorocLabviewReader::getNextEvent(), Hardroc2XdaqReader::getNextEvent(), Hardroc2LabviewReader::getNextEvent(), Hardroc1Reader::getNextEvent(), MicrorocXDaqReader::getNextEvent(), DiracReader::getNextEvent(), DiracLabview::getNextEvent(), DifSynchroReader::getNextEvent(), and main().

{ dataFormat = value; };

ui16 Run::getDaqSoftware

(

)

const [inline]

Definition at line 79 of file Run.hh.

Referenced by MicrorocLabviewReader::getNextEvent(), Hardroc2LabviewReader::getNextEvent(), DifSynchroReader::getNextEvent(), and MTRun::operator=().

{ return daqSoftware ; } ;

void Run::setDaqSoftware

(

ui16

value

)

[inline]

Definition at line 80 of file Run.hh.

Referenced by MicrorocLabviewReader::getNextEvent(), Hardroc2LabviewReader::getNextEvent(), MicrorocXDaqReader::getNextEvent(), and DifSynchroReader::getNextEvent().

{ daqSoftware = value; };

ui16 Run::getCccFirmware

(

)

const [inline]

Definition at line 82 of file Run.hh.

Referenced by MicrorocLabviewReader::getNextEvent(), Hardroc2LabviewReader::getNextEvent(), DifSynchroReader::getNextEvent(), and MTRun::operator=().

{ return cccFirmware ; } ;

void Run::setCccFirmware

(

ui16

value

)

[inline]

Definition at line 83 of file Run.hh.

Referenced by MicrorocLabviewReader::getNextEvent(), Hardroc2LabviewReader::getNextEvent(), MicrorocXDaqReader::getNextEvent(), and DifSynchroReader::getNextEvent().

{ cccFirmware = value; };

void Run::setRawDataFilename

(

std::string

value

)

[inline]

Definition at line 85 of file Run.hh.

Referenced by main().

{ rawDataFilename = value;};

std::string Run::getRawDataFilename

(

void

)

const [inline]

Definition at line 86 of file Run.hh.

Referenced by MTRun::operator=().

{ return rawDataFilename; };

bool Run::isCalibrationRun

(

void

)

const [inline]

Definition at line 88 of file Run.hh.

Referenced by MTRun::operator=(), and MicrorocSCReader::parseSC().

{ return calibrationRun; };

void Run::setCalibrationRun

(

bool

aValue

)

[inline]

Definition at line 89 of file Run.hh.

Referenced by CalibHR1Parser::CalibHR1Parser(), CalibHR2Parser::CalibHR2Parser(), and CalibMicrorocParser::CalibMicrorocParser().

{ calibrationRun = aValue; }

bool Run::isDifSynchro

(

void

)

const [inline]

Definition at line 91 of file Run.hh.

Referenced by MTRun::operator=().

{ return difSynchro; };

void Run::setDifSynchro

(

bool

aValue

)

[inline]

Definition at line 92 of file Run.hh.

{ difSynchro = aValue; }

float Run::getSendedCharge

(

void

)

const [inline]

Definition at line 96 of file Run.hh.

Referenced by MTRun::operator=().

{ return injectedCharge; } ;

ui16 Run::getWidthCtest

(

void

)

const [inline]

Definition at line 97 of file Run.hh.

Referenced by MTRun::operator=().

{ return widthCtest; } ;

ui16 Run::getPeriodCtest

(

void

)

const [inline]

Definition at line 98 of file Run.hh.

Referenced by MTRun::operator=().

{ return periodCtest; } ;

ui16 Run::getDelayCtest

(

void

)

const [inline]

Definition at line 99 of file Run.hh.

Referenced by MTRun::operator=().

{ return delayCtest; } ;

ui16 Run::getDelayTrigger

(

void

)

const [inline]

Definition at line 100 of file Run.hh.

Referenced by MTRun::operator=().

{ return delayTrigger; } ;

void Run::setInjectedCharge

(

float

aValue

)

[inline]

Definition at line 103 of file Run.hh.

Referenced by DiracReader::getNextEvent(), and DiracLabview::getNextEvent().

{  injectedCharge = aValue; } ;

void Run::setWidthCtest

(

ui16

aValue

)

[inline]

Definition at line 104 of file Run.hh.

Referenced by DiracReader::getNextEvent().

{  widthCtest = aValue; } ;

void Run::setPeriodCtest

(

ui16

aValue

)

[inline]

Definition at line 105 of file Run.hh.

Referenced by DiracReader::getNextEvent().

{  periodCtest = aValue; } ;

void Run::setDelayCtest

(

ui16

aValue

)

[inline]

Definition at line 106 of file Run.hh.

Referenced by DiracReader::getNextEvent().

{  delayCtest = aValue; }

void Run::setDelayTrigger

(

ui16

aValue

)

[inline]

Definition at line 107 of file Run.hh.

Referenced by DiracReader::getNextEvent().

{  delayTrigger = aValue; }

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	out,
		const Run &	x
	)			[friend]

Definition at line 12 of file Run.cpp.

                                                        {
     return(x.operator <<(out));
}

---

Member Data Documentation

Detector& Run::detector [private]

Definition at line 30 of file Run.hh.

Referenced by getDetector().

ui32 Run::id [private]

Definition at line 32 of file Run.hh.

Referenced by getId().

std::string Run::name [private]

Definition at line 34 of file Run.hh.

Referenced by getName(), Run(), and setName().

std::string Run::date [private]

Definition at line 35 of file Run.hh.

Referenced by getDate(), and setDate().

time_t Run::reconstructionDate [private]

Definition at line 37 of file Run.hh.

Referenced by getReconstructionDate(), Run(), and setReconstructionDate().

std::string Run::svnrev [private]

Definition at line 38 of file Run.hh.

Referenced by Run().

std::string Run::rawDataFilename [private]

Definition at line 39 of file Run.hh.

Referenced by getRawDataFilename(), and setRawDataFilename().

bool Run::calibrationRun [private]

Definition at line 40 of file Run.hh.

Referenced by isCalibrationRun(), Run(), and setCalibrationRun().

bool Run::difSynchro [private]

Definition at line 41 of file Run.hh.

Referenced by isDifSynchro(), Run(), and setDifSynchro().

ui16 Run::delayTrigger [private]

Definition at line 45 of file Run.hh.

Referenced by getDelayTrigger(), and setDelayTrigger().

float Run::injectedCharge [private]

Definition at line 47 of file Run.hh.

Referenced by getSendedCharge(), Run(), and setInjectedCharge().

ui16 Run::widthCtest [private]

Definition at line 50 of file Run.hh.

Referenced by getWidthCtest(), Run(), and setWidthCtest().

ui16 Run::periodCtest [private]

Definition at line 51 of file Run.hh.

Referenced by getPeriodCtest(), Run(), and setPeriodCtest().

ui16 Run::delayCtest [private]

Definition at line 52 of file Run.hh.

Referenced by getDelayCtest(), Run(), and setDelayCtest().

ui16 Run::dataFormat [private]

Definition at line 54 of file Run.hh.

Referenced by getDataFormat(), Run(), and setDataFormat().

ui16 Run::daqSoftware [private]

Definition at line 55 of file Run.hh.

Referenced by getDaqSoftware(), Run(), and setDaqSoftware().

ui16 Run::cccFirmware [private]

Definition at line 56 of file Run.hh.

Referenced by getCccFirmware(), Run(), and setCccFirmware().

---

The documentation for this class was generated from the following files:

• /data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/include/event/Run.hh
• /data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/src/event/Run.cpp

---
