V Accessing and managing Gravitational Waves data

V.1 Accessing frames through the Framelib

The Framelib is integrated into VEGA. This means that all the usual functions are accessible to the command line and in the macros. For example, you can try to run the macro vframel_ex.C. We let you compare it with the example FrameFull.c of the Framelib manual.

There is a way to draw the time series (vectors) extracted from frames, and this is described in the chapter "Representing gravitational wave data".

V.2 Metadatabase for easy data access

V.2.1 What for ?

In a GW detection experiment, we will certainly end-up analyzing BIG amounts of data. Even if the format of these data is determined, the data itself will consist of many hundreds of files, each consisting of many megabytes. This is true even in local data that a user may want to analyze on his machine. Furthermore, when somebody uses some files locally, chances are that those files contain frames that are not contiguous, consisting of chunks of interesting data scattered through all the time the experiment was running. How then, access this data by time ? Or by frame/run number ?

If someone wants eventually to have headaches, one of the solutions might be to give each file a meaningful name, containing for example the start time of the first frame in that file, and be very disciplined. But what if somebody wants to access a part of the data that spans two or more frames ? This, and other such questions, led to the idea of a metadatabase.

Suppose we have a bunch of frame files in a directory. We create a database, consisting in our case of a ROOT file containing two Trees, that will index the location (file), start time, and other interesting parameters (trigger conditions...) of all the frames present in the directory files.

In order to access one particular frame, one just has to give its time to the metadatabase, which will send him back this frame. We will see all the possibilities of this approach.

V.2.2 Principle and structure

From the user's point of view, the analysis environment should allow her/him to access simply any vector or frame that is contained in a set of frame files, even remotely. One should also be able to access vector not caring about frame boundaries. It should also be possible to make accesses conditioned by some trigger, slow monitoring value or user-defined condition. Furthermore, one should be able to manage a set of files that is as big as possible (of the order of 1 TB or more)

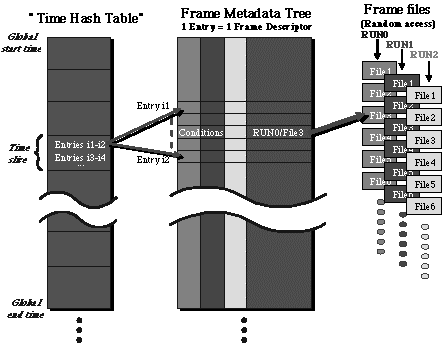

The option chosen in VEGA to solve this problem is to build a database that contains metadata about frames and indexes these frames. The structure of the database is drawn on the following figure :


The complete frame information is kept in the frame files, while the database serves as an index to access them. The access is a two step process. First, one gives the starting time of the vector one wants. This starting time is used to determine, with the help of what is called a "time hash table", the frame files that possibly contain the desired information. Then, only the metadata corresponding to these files are searched and finally, the desired frame is accessed in the relevant file or the desired vector is reconstructed and given to the user.

The metadata is kept in a container, called Tree, introduced in ROOT and specifically designed to handle big amounts of data and access it quickly. The tree structure can also contain conditions for frame access.

V.2.3 Creation of a metadatabase

VFrDataBase(char* filename, char* mode, char* framefilenames, char* opt)

To create a local database, we need to create a database object of class VFrDataBase. At the same time, we can build it, looking for frame files. As, for example, in

vega[] vd = new VFrDataBase("demoDB.root","CREATE","./")

we call the VFrDataBase constructor.

The first parameter is the name of the database file.

The second one is the mode with which we open the database. Here, it is opened in "CREATE" mode, since we want to build it.

he third parameter is the path to the directory containing the frame files. Here, it is "./", meaning the local directory. You can put whatever path you like and specify particular files/directories with wildcards.

The search is by default recursive, all the contained directories will be searched recursively. If you want to turn this option off, add a last parameter and specify "S"

That's it ! The amount of time needed to index the files depends on the number and size of those files. But typically, it consists of a sequential read of all the files. This shouldn't be much slower than the speed of the connection to the disk containing the directories.

V.2.4 Accessing data through a metadatabase

V.2.4.1 Opening an existing database

To easily access the data, we need first to open a database. We can use the constructor in "READ" mode, which is the default :

vega[] vd = new VFrDataBase("./demoDB.root")

One may replace "./demoDB.root" with the path/name of his local database.

V.2.4.2 Extracting frames

Frames are extracted from the database with

FrameH* GetFrame(Double_t time)
FrameH* GetFrameR(Double_t relativetime)

The first method extracts a frame at an absolute time, the second at a time relative to the reference time (see chapter “Dealing with time”).

As in

vega[] FrameH* frame = vd->GetFrame(time)

where time is a double expressing a time that is contained in the frame. This method sends back a pointer to a well-known FrameH structure.

Once one has extracted one frame, it is possible to extract the next one or the preceding one in the database :

FrameH* GetNextFrame()

For example :

vega[] frame = vd->GetNextFrame()

FrameH* GetPreviousFrame()

For example :

vega[] frame = vd->GetPreviousFrame()

Be careful, while GetFrame is checking to see if the requested time is really contained in one of the frames of the database, GetNextFrame and GetPreviousFrame do not. They will simply return you the frame that is the next (or previous) one in time in the database, even if it's years away.

V.2.4.3 Extracting vectors of any length

Sometimes, one would like to extract a vector which length is smaller than the one of a frame, or a vector that is spanning two or more frames. One can extract such a vector with :

FrVect* GetVect(Text_t* nameofvect, Double_t start, Double_t length, Option_t* opt="")
FrVect* GetVectR(Text_t* nameofvect, Double_t start, Double_t length, Option_t* opt="")

The first method extracts a frame at an absolute time, the second at a time relative to the reference time (see chapter “Dealing with time”).

As, for example :

vega[] FrVect* vect = vd->GetVect("adc.IFO_DMRO",start,length)

It returns a vector of type FrVect given its name and type. The vector starts at time "start" and has a length "length" (both are doubles). Vectors extracted from the database will be concatenated as needed to obtain the desired vector. The string nameofvect indicates the type (adc, proc, sim) and the name of the series to be extracted. The convention for the format is "type.name".

For example "adc.IFO_DMRO" is a good format.

If only the name is given, the groups of series in the frame will be searched in the order adc, proc, sim for that name. If more than one identical name was defined in the frame, the first found series with that name will be used.

The extracted values of the vector are casted to double by default. This behaviour may be changed.

If the option string opt = "nocast", the extracted vector retains the original data type. “opt” is set by default to empty (no option).

V.2.4.4 Extracting n-tuples of SMS data

As was seen in the chapter “IV – Hands on VEGA”, in order to manipulate slow monitoring data, one has first to extract them in a ntuple. This is done with the VFrDataBase methods :

VNtuple* ExtractSMS(Text_t* nameofntuple, Text_t* varlist, Double_t start, Double_t length)
VNtuple* ExtractSMSR(Text_t* nameofntuple, Text_t* varlist, Double_t start, Double_t length)

The first method extracts an SMS at an absolute time, the second at a time relative to the reference time (see chapter “Dealing with time”).

nameofntuple is the name of the new ntuple to be built.
varlist is the list of variables to extract. Colons separate the variables, and each variable name is constructed with the name of the slow monitoring station, followed by the name of the variable, separated by a dot, like stationname.varname. So “TiServer.TA1:TiServer.T2:To9Tp.G41” is a valid variables list. If one wants to extract all the variables of a station, just give the name of the station, without any variable. “TiServer:To9Tp” will work (of course if these stations exist).
start is the time from which the extraction starts in the database. It is an absolute GPS time for the ExtractSMS method and a time relative to the reference time for ExtractSMSR.
length is the length of the extraction section, in seconds.

The variables and slow monitoring stations are checked for in the first frame accessible after the time start. If the variable names were given, the search will be made until the end of the searching section (till the time start+length is reached). But if all the variables of a station were asked for, and this station is not present, the ntuple will not be build.

V.2.5 Getting general information about the metadatabase and it’s contents

V.2.5.1 Getting the start time of the metadatabase

To get the start time of the first frame indexed in the metadatabase, one has to use the VFrDataBase method

double GetStart()

For example if vd is a valid database,

vega[] vd->GetStart()

will output this start time while

vega[] st = vd->GetStart()

will put it in a double that may be reused.

V.2.5.2 Printing information about the metadatabase

One can get some information about the metadatabase by using the VFrDataBase method

double Print()

For example if vd is a valid database,

vega[] vd->Print()

This will show a rather extensive output of the metadatabase content, and will print the dump of the first frame at the end. This may be used to collect names of vectors, etc....

V.3 Dealing with selected or triggered data

V.3.1 Condition information in the metadatabase

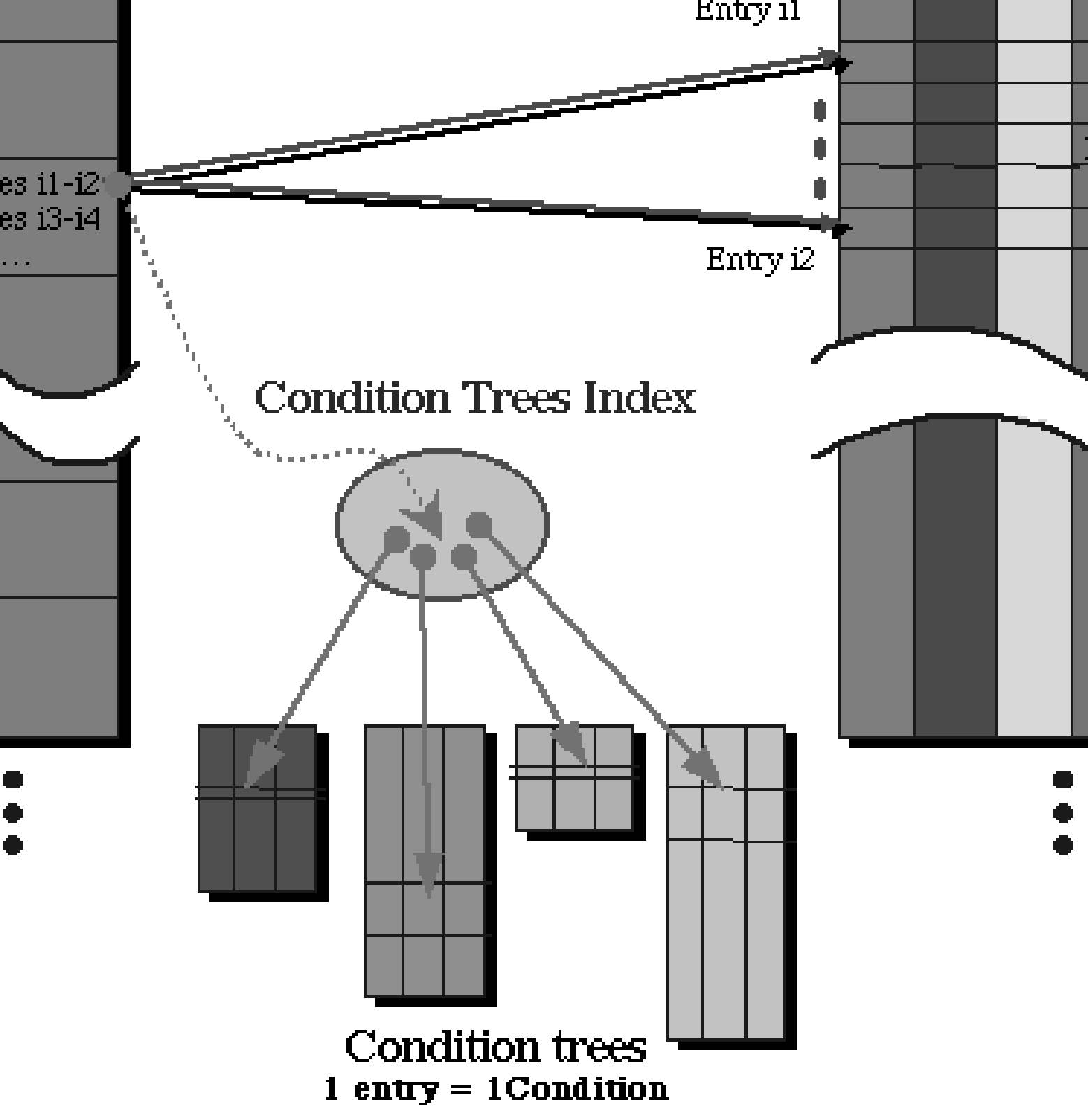

When the metadatabase is build by reading the frame files, the trigger information contained in each frame is retrieved and arranged in such a way to allow easy extraction of frames or vectors satisfying some selection.

The triggers (structures of type FrTrigData in the FrameLib) are converted to more general objects called conditions. This will allow to use in the future as conditions other information such as slow monitoring data or quality information. The user may even add his own conditions, without copying the whole files just to add a FrTrigData structure. A simple scheme of the database was given above. This scheme is now enhanced by the addition of condition trees and an index for fast access:


V.3.2 Condition Sets

Condition sets (class VConditionSet) are objects designed to be used as iterators on the condition trees, allowing a user to select a subset of all the conditions, through a selection formula, and to determine successively all the time intervals where this selection is valid. In other words, a condition set contains a selection expression on the conditions and is used as a pointer to the successive intervals of time satisfying this selection.

This will be clearer with an example. Suppose two triggers were defined in a set of frames, say "Trig1" and "Trig2". These triggers have a given amplitude, which may vary, and we would like to select, for example, all time intervals for which "Trig1.amplitude>50 && Trig2.amplitude>1". This is our selection expression. A condition set will be build with this expression, as for example in:

vega[] cs = new VConditionSet(w,"Trig1.amp>50 && Trig2.amp>1")

The object "w" is a valid metadatabase. A condition set is attached to a particular metadatabase since it contains the condition information.

The user may stop here since the extraction of all the successive frames or vectors satisfying the selection expression is described in the paragraphs below and do not need any other manipulation of the condition set. Nevertheless, for the interested reader, we can play with it, to understand the behavior.

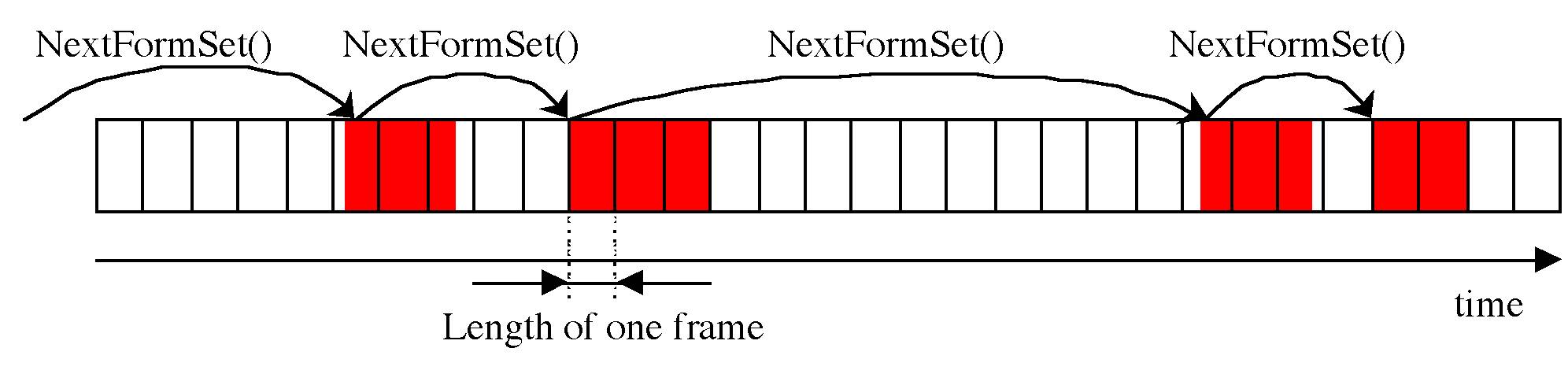

When first build, a condition set points to the beginning of the metadatabase. One can make it jump to the next set of valid conditions by using the method NextFormSet() :

vega[] cs->NextFormSet()

Using it repeatedly, the set will point to the successive selected time intervals, in red in the following figure:


Actually, the selected intervals are not forced to have limits at the beginning or end of a frame. This depends on the start time and length of the triggers and is not dependent on the frame length.

Once the condition set has jumped to the next selected interval, one may retrieve its start and end time:

vega[] start = cs->GetIntersectionStart()

vega[] end = cs->GetIntersectionEnd()

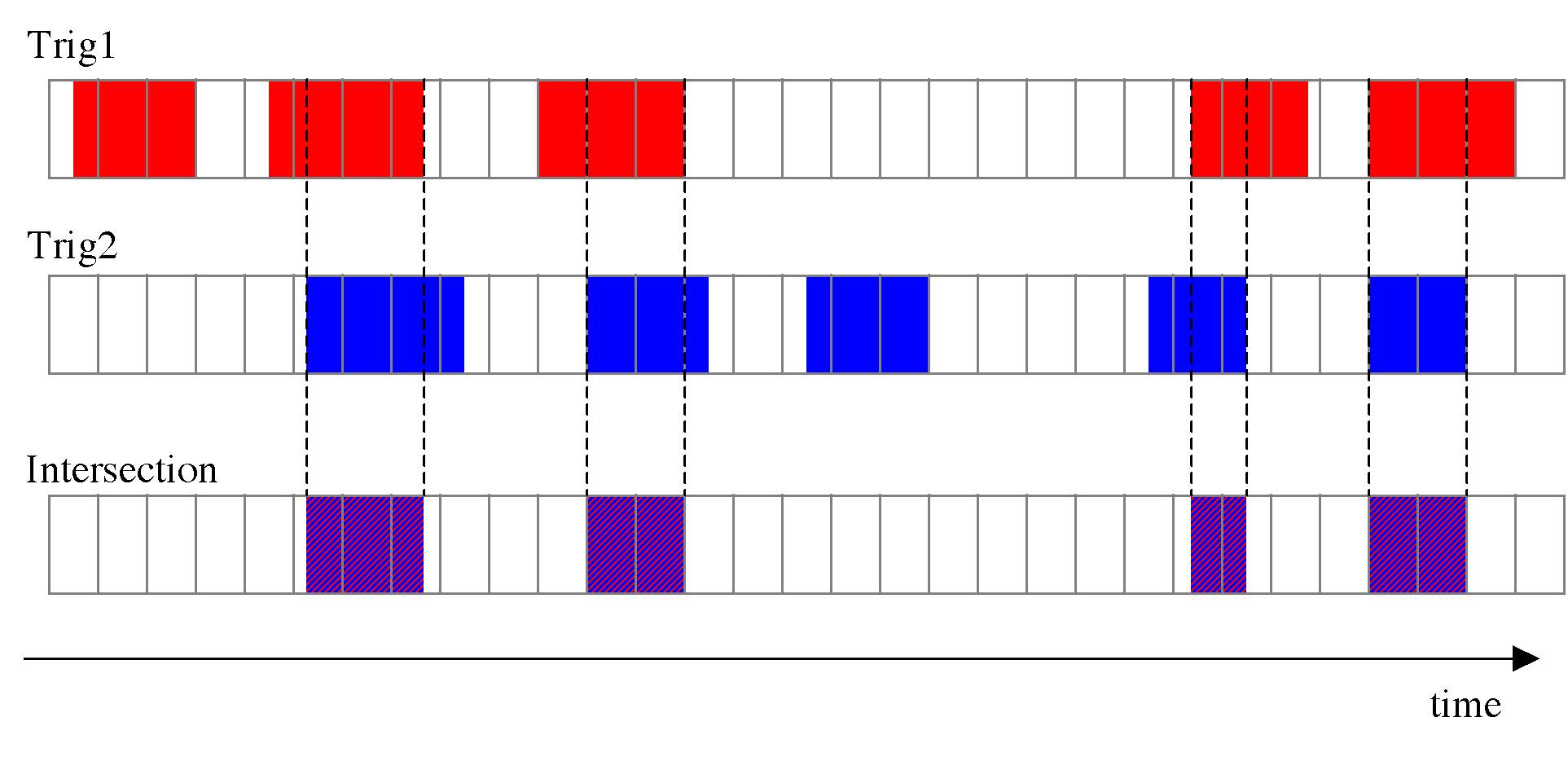

Why is the word "Intersection" appearing here?

Each selection formula used in a condition set references one or more conditions (or triggers). For example, the formula above references "Trig1" and "Trig2". Each of these conditions has a start time and an end time. But in the case where there is more than one referenced condition, the start and end time of each of them may not coincide. So, when searching a match for the selection, the first thing done is to search for an intersection of all the referenced conditions:


In the example above, we have only used a sequential search, getting all the interesting intervals. It is also possible to jump directly to the interval that is following immediately a specified time :

vega[]cs->NearestGEFormSet(time)

where "time" is in GPS format (double, seconds.nanoseconds).

V.3.3 Extracting frames with a condition

There are two ways of extracting frames that satisfy a given condition: directly or sequentially. The direct method will be used if a particular frame, which approximate time is known, is to be extracted. The sequential method is used if one needs to process or view sequentially all the frames that correspond to a given selection expression.

V.3.3.1 Direct methods

The methods of VFrDataBase that allow a direct conditioned access to frames are:

FrameH* GetNextFrame(Double_t time, char* selection)
FrameH* GetNextFrameR(Double_t relativetime, char* selection)

The first method extracts a frame at an absolute time, the second at a time relative to the reference time (see chapter “Dealing with time”). "selection" is a selection expression referring to conditions existing in the database (hence the frames) such as "Trig1.amp>50 && Trig2.amp>2".

Example

vega[]frame = vd->GetNextFrame(time,"Trig1.amp>50&&Trig2.amp>2")

the search will begin from time "time". The frame returned will be the one containing the start time of the first interval satisfying the selection expression. This method sends back a pointer to a well-known FrameH structure.

V.3.3.2 Sequential methods

In order to access sequentially all the frames of interest, satisfying a selection expression, one has to have an object that will point to the intervals of interest. So came the idea of condition sets. Once a condition set has been defined, one can use it to extract frames that are recorded at the corresponding time. The methods of VFrDataBase to do so are:

FrameH* GetNextFrame(VConditionSet* condset)
FrameH* GetNextFrameR(VConditionSet* condset)

The first method extracts a frame at an absolute time, the second at a time relative to the reference time (see chapter “Dealing with time”). "condset" is a condition set defined as explained in the paragraph "Condition Sets"

Example

vega[]frame = vd->GetNextFrame(condset)

The search will be governed by the condition set "condset". The frame returned will be the one containing the start time of the next interval pointed to by "condset". These methods have to be called sequentially in a loop.

This method sends back a pointer to a well-known FrameH structure.

One warning: the memory for returned frames is allocated by the system, but it is the user's duty to free it after use. One has to do:

vega[]FrameFree(frame)

after finishing using the frame object.

V.3.4 Extracting vectors with a condition

Instead of extracting full frames, it is possible to extract only some vectors. The start time and length of the condition time interval will direct the start time and length of the vectors. The user does not (yet) control the length of the vector returned.

As for frames, the extraction may be direct or sequential.

V.3.4.1 Direct methods

The methods of VFrDataBase that allow a direct conditioned access to vectors are:

FrVect* GetNextVect(Text_t* nameofvect, Double_t gpstime, char* selection)
FrVect* GetNextVectR(Text_t* nameofvect, Double_t gpstime, char* selection)

They return a vector of type FrVect given its name and type. The vector spans a time interval for which the conditions expressed in the selection expression "selection" are valid. This time interval is the nearest next one to the time "gpstime".

Thus, "gpstime" is not the start time of the vector but the start time of the search.

The string nameofvect indicates the type (adc, proc, sim) and the name of the series to be extracted. The convention for the format is "type.name". For example "adc.IFO_DMRO" is a good format. If only the name is given, the groups of series in the frame will be searched in the order adc, proc, sim for that name. If more than one identical name was defined in the frame, the first found series with that name will be used.

The first method starts the search at an absolute time, the second at a time relative to the reference time (see chapter “Dealing with time”).

For example:

vega[]vect = vd->GetNextVect("adc.IFO_DMRO",gpstime,"Trig1>50")

Will return a vector of type FrVect,.

Frames where the condition expression "Trig1>50" will be first searched for. This will give a start time and length for the time interval of interest. Then, the vector of type adc and named "IFO_DMRO" will be assembled, whose start time and length will match those of the interval.

V.3.4.2 Sequential methods

In order to access sequentially all the vectors of interest, satisfying a selection expression, one has to have an object that will point to the time intervals of interest. So came the idea of condition sets. Once a condition set has been defined, one can use it to extract vectors that are recorded at the corresponding time. The method of VFrDataBase to do so is:

FrVect* GetNextVect(Text_t* nameofvect, VConditionSet* condset)

It returns a vector of type FrVect given its name and type. First, the condition set "condset" jumps to the next time interval satisfying its internal conditions. Then, the vector is extracted that spans this time interval.

For example:

vega[]vect = vd->GetNextVect("adc.IFO_DMRO",condset)

The search will be governed by the condition set "condset". The returned vector (of type FrVect) will be the next vector that satisfies the internal selection expression of the condition set "condset".

This method has been designed to be called sequentially in a loop.

One warning: the memory for returned vectors is allocated by the system, but it is the user's duty to free it after use. One has to do:

vega[]FrVectFree(vect)

after finishing using the vector object.

V.3.5 Getting information about condition sets

V.3.5.1 Printing the names of the conditions present in a metadatabase

When printing information about a metadatabase, the dump of the first frame is made. But this doesn’t show all the conditions that exist in a metadatabase. To show the names of all the conditions gathered when building the metadatabase, one has to use again the Print() method of VFrDataBase, but with an option “conditions”. For example if vd is a valid database:

vega[] vd->Print("conditions")

will do it.

V.3.5.2 Current status of a condition set

A condition set, as explained above, points to a particular section of data satisfying some criteria. It may be useful to get some information about the current status of a particular condition set. The following methods of VConditionSet are used to retrieve this information:

class VConditionSet

double GetIntersectionStart()
double GetIntersectionEnd()

Returns the start and end time of the current region of interest. This region is the intersection region of all the conditions that compose the condition set.

Example, provided cs is a valid condition set:

vega[] cs->GetIntersectionStart()

(double)661234567.1

vega[] cs->GetIntersectionEnd()

(double)661234569.3

class VConditionSet

double GetLastConditionResult()

Returns the result of the condition formula that is used to define the condition set applied to the current set of conditions. When searching for the next condition set, this result should be non zero.

class VConditionSet

double Eval(const char* formula)

Returns the result of the formula “formula” applied to the current set of conditions. This allows to see, in a set of conditions, the status of a particular condition. For example, if “vd” is a valid metadatabase, suppose the specified condition set is :

vega[] cs = new VconditionSet(vd,"Trig1.a>2 && Trig2.a<20")

The fact that you jumped to the next valid condition set with a GetNextVect() or GetNextFrame() call (see VFrDataBase), ensures that the condition "Trig1.a>2 && Trig2.a<20" is satisfied. But you may wonder what is the real value of the amplitude of condition “Trig1”. This may be known with:

vega[] cs.Eval("Trig1.a")

(double) 11.876

V.4 N-tuples adapted for GW data analysis

Slow monitoring data spans a lot of frames. The special treatment we have to apply in order to gain a simple yet efficient way of dealing with SMS data is to build a special object called an ntuple that will contain all this data. We developed a particular ntuple (VNtuple) that differs from the standard ROOT one in that it is adapted to our needs. You can think of a ntuple as a list of all the sms data put in a tree-like structure:

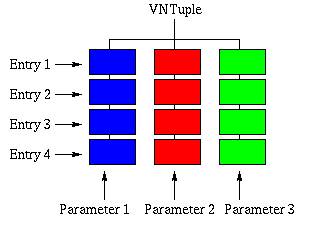

The difference with a simple array is that each leaf of the tree can be any kind of object, even a tree itself. This leads to a hierarchy structure, like in a directory structure for a file system.

In fact, these more general ntuples are called Trees. In simple ntuples, as VNtuples each leaf is a single float parameter.

VNtuples are derived from ROOT TNtuples and therefore, have access to all the methods available in TNtuples. We will focus on the ones that were added and on the ones most frequently used. For the others, the reader may refer to http://root.cern.ch/root/html/TNtuple.html.

Building VNtuple

The standard constructor is :

VNtuple(Text_t* name, Text_t* title, Text_t* listofvariables, Int_t bufsize=32000);

name is the name of the new VNtuple.
title is its title.
listofvariables is the list of variables to be put in the ntuple. It is a char string made of names separated by colons. For example "t:x:y:z:var1". This list will tell what is the number of variables to be foreseen.
bufsize is the buffer size used internally when writing to disk. The default value is sufficient for most uses.

Example :

vnt = new VNtuple("vnt","Example vntuple","t:TP1:TP2:PR1:PR2")

will build a new ntuple object with 5 variables. In a compiled program, vnt has to be declared as a VNtuple* before use. It will be automatically declared if one uses the interpreter.

V.4.2 Filling an N-tuple and getting data

The ExtractSMS method of VFrDataBase does the job for you in case you want to extract SMS data. It is nevertheless useful to know how to fill an ntuple and access the data that is inside it, in case you want to loop on this data.

void Fill(Float_t* x)
void Fill(Float_t x0, Float_t x1, Float_t x2=0, Float_t x3=0, Float_t x4=0, Float_t x5=0, Float_t x6=0, Float_t x7=0, Float_t x8=0, Float_t x9=0, Float_t x10=0, Float_t x11=0, Float_t x12=0, Float_t x13=0, Float_t x14=0)

x is an array of floats.
x0 to x14 in case you have less than 15 variables and more than 1 (2 or more), you can call the second form of the Fill method.

Example :

vnt->Fill(1.43,4.23,b,c,d)

will fill the ntuple with the values specified.

One can fill an ntuple in a loop as much as he wants, especially if the ntuple is on disk. To make an ntuple on disk, simply open a ROOT file in “RECREATE” mode BEFORE building the ntuple. This one will automatically be attached to the file and it’s contents will be flushed to disk as soon as the buffers are full (every 32 kbytes by default).

void GetEntry(Int_t i)
Float_t* GetArgs()

Extracts the variables corresponding to a given entry in the ntuple.

i is the index of the entry (in filling order).

GetEntry() fills an internal array with the contents of entry i and GetArgs() returns a pointer to an array of floats containing the values. There are two different methods because in the case of Trees, the objects to be returned may be very complex, and one can try to get only a subset of these objects.

The GetEntries() method returns the number of entries in the ntuple.

A simple loop to process all the values of a ntuple would be:
while ( int i=0; i < vnt->GetEntries(); i++ ) {
vnt->GetEntry(i);
float* x = vnt->GetArgs();
printf("nvar = %d, x0 = %fn",nvar,x[0]);
}

Of course, one can do any kind of treatment in the loop

If it’s just a matter of printing the values, the Scan() method may be used. The previous example could be replaced by a simple vnt->Scan() call.

V.4.3 Drawing

The drawing methods are described in "Representing gravitational wave data".

Damir BUSKULIC
Last update :19/11/2001;
