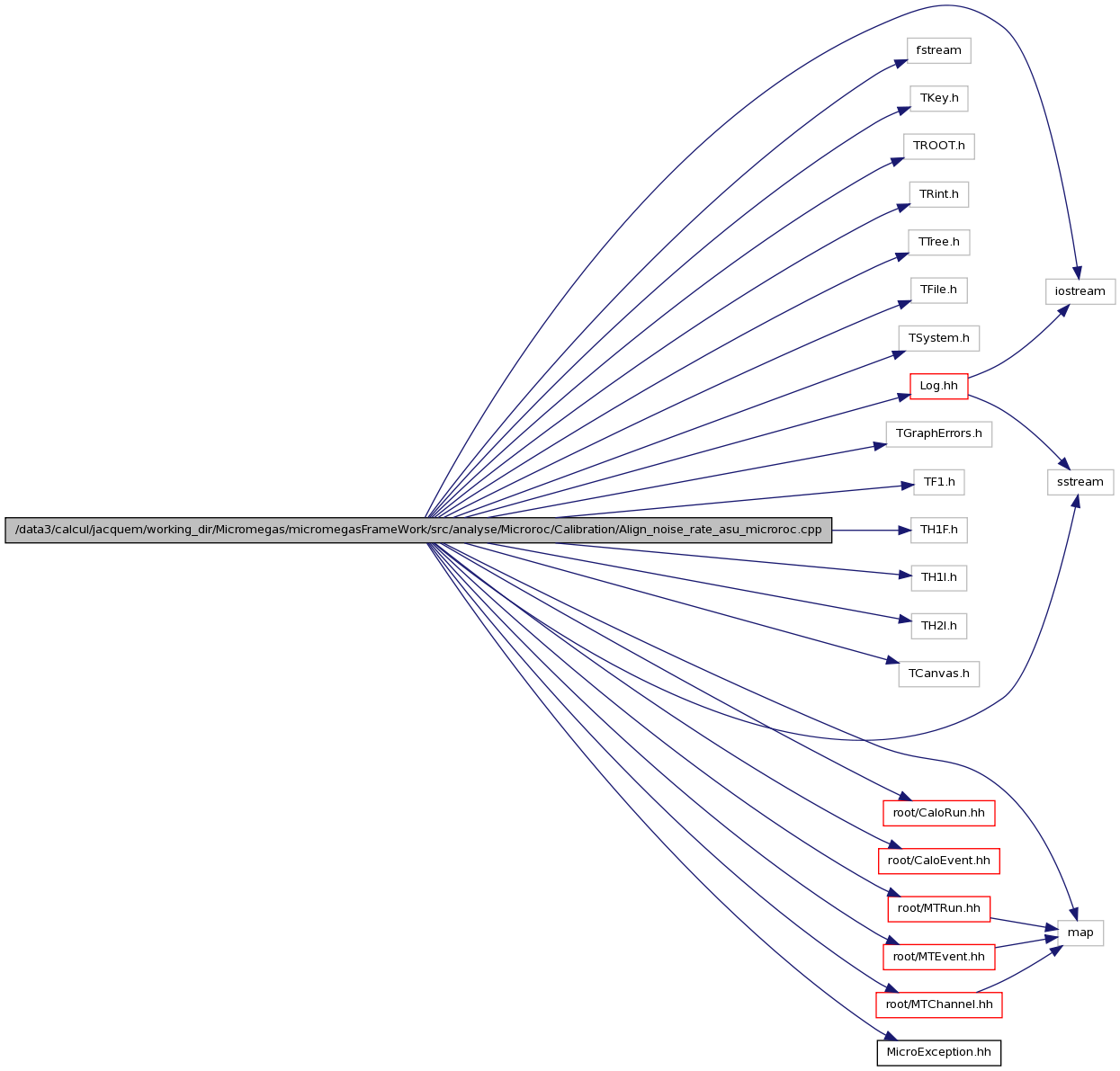

#include <map>#include <fstream>#include "TKey.h"#include <TROOT.h>#include <TRint.h>#include <TTree.h>#include <TFile.h>#include <TSystem.h>#include <iostream>#include <TGraphErrors.h>#include <TF1.h>#include <TH1F.h>#include <TH1I.h>#include <TH2I.h>#include <TCanvas.h>#include <sstream>#include "Log.hh"#include "root/CaloRun.hh"#include "root/CaloEvent.hh"#include "root/MTRun.hh"#include "root/MTEvent.hh"#include "root/MTChannel.hh"#include "MicroException.hh"Include dependency graph for Align_noise_rate_asu_microroc.cpp:
Go to the source code of this file.
Functions | |
| int | main (int argc, char **argv) |
| int main | ( | int | argc, | |
| char ** | argv | |||
| ) |
Definition at line 34 of file Align_noise_rate_asu_microroc.cpp.
00034 { 00035 00036 if (argc!=7) 00037 { 00038 cout<<"/*****************************************************************************************/"<<endl; 00039 cout<<"/* ARGUMENTS TO THE PROGRAM **************************************************************/"<<endl; 00040 cout<<"/* 1 - DIRECTORY CONTAINING THE ROOTFILE *************************************************/"<<endl; 00041 cout<<"/* 2 - NAME OF MERGED ROOTFILE ***********************************************************/"<<endl; 00042 cout<<"/* 3 - M2 PROTOTYPE NUMBER (1 OR 2)*******************************************************/"<<endl; 00043 cout<<"/* 4 - TRIGGER RATE (Hz)******************************************************************/"<<endl; 00044 cout<<"/* 5 - TARGET NOISE RATE (Hz)*************************************************************/"<<endl; 00045 cout<<"/* 6 - ACTIONS: readonly - correctoffset - increaseoffset ********************************/"<<endl; 00046 cout<<"/*****************************************************************************************/"<<endl; 00047 } 00048 00049 else 00050 { 00051 00052 TString dir = argv[1]; 00053 TString rootfilename = argv[2]; 00054 TString m2 = atoi(argv[3]); 00055 float trigger_rate = atof(argv[4]); 00056 float target_rate = atof(argv[5]); 00057 TString action = argv[6]; 00058 00059 if (!(m2==1 || m2==2)) 00060 { 00061 cout<<endl; 00062 cout<<"M2 NUMBER SHOULD BE 1 OR 2"<<endl; 00063 cout<<endl; 00064 } 00065 00066 else 00067 { 00068 00069 TString filename = dir + rootfilename; 00070 int nevent = 0; 00071 00072 TH1F * hnhit = new TH1F("hnhit",";nhit",1000,0,10000); 00073 TH1F * hc_nhit = new TH1F("hc_nhit",";channel;number of hits",9216,0,9216); 00074 TH1F * hc_rate = new TH1F("hc_rate",";channel;rate (Hz)",9216,0,9216); 00075 TH1F * hrate = new TH1F("hrate",";rate (Hz)",100,0,1); 00076 TH1I * hoffset = new TH1I("hoffset","offset distribution;offset (DAC)",16,0,16); 00077 TH2I * hxy = new TH2I("hxy","hit distribution;y (pad);x (pad)",96,0,96,96,0,96); 00078 00079 //READ ROOTFILE 00080 00081 TFile *f = new TFile(filename); 00082 cout<<"reading File : "<<filename<<endl; 00083 00084 TIter nextkey(f->GetListOfKeys()); 00085 TKey *key; 00086 00087 while (key = (TKey*)nextkey()) 00088 { 00089 TTree *tree = (TTree*)key->ReadObj(); 00090 MTRun* run = (MTRun*)tree->GetUserInfo()->FindObject("MTRun"); 00091 00092 nevent = tree->GetEntries(); 00093 cout <<"nEvent="<<nevent<<endl; 00094 00095 MTEvent *evt = new MTEvent(); 00096 00097 TBranch *branch= tree->GetBranch("MTEvent"); 00098 branch->SetAddress(&evt); 00099 00100 for (int i=0;i<nevent;i++) 00101 { 00102 tree->GetEntry(i); 00103 int nchannel = evt->GetNchannel(); 00104 hnhit->Fill(nchannel); 00105 00106 MTChannel* channel = (MTChannel*)evt->GetChannels()->UncheckedAt(0); 00107 00108 for (int j=0;j<nchannel;j++) 00109 { 00110 MTChannel* channel = (MTChannel*)evt->GetChannels()->UncheckedAt(j); 00111 00112 hxy->Fill(channel->GetY()*1e-4+48,channel->GetX()*1e-4+48,1); 00113 00114 int hardid = channel->GetHardId(); 00115 int chipid = channel->GetChipId(); 00116 int boardid = channel->GetBoardId(); 00117 00118 if (0) 00119 { 00120 if (m2==1) 00121 { 00122 if (!(boardid==13 || boardid==14)) 00123 { 00124 if (boardid==15 || boardid==16){chipid += 48;} 00125 else{chipid += 96;} 00126 } 00127 } 00128 00129 if (m2==2) 00130 { 00131 if (!(boardid==24 || boardid==25)) 00132 { 00133 if (boardid==22 || boardid==23){chipid += 48;} 00134 else{chipid += 96;} 00135 } 00136 } 00137 } 00138 00139 hc_nhit->Fill((chipid-1)*64+hardid); 00140 } 00141 } 00142 } 00143 00144 00145 //CALCULATE RATE FROM NUMBER OF HITS 00146 00147 for (int i=0;i<9216;i++) 00148 { 00149 int entry = hc_nhit->GetBinContent(i+1); 00150 00151 if (entry!=0) 00152 { 00153 float rate = entry / 1. / nevent * trigger_rate ; 00154 hc_rate->SetBinContent(i+1,rate); 00155 hrate->Fill(rate); 00156 //hrate->Fill(rate); 00157 } 00158 } 00159 00160 00161 00162 //DECLARE FILES TO WRITE TO AND READ FROM 00163 00164 TString slab1; 00165 TString slab2; 00166 TString slab3; 00167 00168 if (m2 == 1) 00169 { 00170 slab1 = "ASU1314"; 00171 slab2 = "ASU1516"; 00172 slab3 = "ASU1718"; 00173 } 00174 00175 if (m2 == 2) 00176 { 00177 slab1 = "ASU2425"; 00178 slab2 = "ASU2223"; 00179 slab3 = "ASU2021"; 00180 } 00181 00182 00183 TString infile11 = dir + slab1 + "_gains_noise_align.txt"; 00184 TString infile12 = dir + slab1 + "_offset_set.txt"; 00185 00186 TString infile21 = dir + slab2 + "_gains_noise_align.txt"; 00187 TString infile22 = dir + slab2 + "_offset_set.txt"; 00188 00189 TString infile31 = dir + slab3 + "_gains_noise_align.txt"; 00190 TString infile32 = dir + slab3 + "_offset_set.txt"; 00191 00192 ifstream in11(infile11.Data()); 00193 ifstream in12(infile12.Data()); 00194 00195 ifstream in21(infile21.Data()); 00196 ifstream in22(infile22.Data()); 00197 00198 ifstream in31(infile31.Data()); 00199 ifstream in32(infile32.Data()); 00200 00201 cout<<endl; 00202 cout<<"Read offset status (set/not-set) from files:"<<endl; 00203 cout<<" -> "<<infile12<<endl; 00204 cout<<" -> "<<infile22<<endl; 00205 cout<<" -> "<<infile32<<endl; 00206 cout<<endl; 00207 cout<<"Write offset map to files"<<endl; 00208 cout<<" -> "<<infile11<<endl; 00209 cout<<" -> "<<infile21<<endl; 00210 cout<<" -> "<<infile31<<endl; 00211 cout<<endl; 00212 00213 00214 //READ WHICH CHANNELS HAVE THEIR OFFSET ALREADY SET 00215 00216 bool set[144][64]; 00217 int offset[144][64]; 00218 00219 for (int i=0;i<144;i++) 00220 { 00221 for (int j=0;j<64;j++) 00222 { 00223 set[i][j] = 0; 00224 offset[i][j] = -1; 00225 } 00226 } 00227 00228 int i,j,off; 00229 00230 //Read offset maps 00231 while(in11>>i>>j>>off){offset[i-1][j] = off;} 00232 while(in21>>i>>j>>off){offset[i-1][j] = off;} 00233 while(in31>>i>>j>>off){offset[i-1][j] = off;} 00234 00235 //Read which channel have their offset already set 00236 while(in12>>i>>j){set[i-1][j] = 1;} 00237 while(in22>>i>>j){set[i-1][j] = 1;} 00238 while(in32>>i>>j){set[i-1][j] = 1;} 00239 00240 00241 //For non-set offsets 00242 //Determine if offset should be raised or lowered 00243 //by comparing measured rate to target rate 00244 00245 int nthr = 0; 00246 00247 //loop over m2 channels 00248 for (int i=0;i<144;i++) 00249 { 00250 for (int j=0;j<64;j++) 00251 { 00252 00253 off = offset[i][j]; 00254 float rate = hc_rate->GetBinContent(i*64+j+1); 00255 00256 if (rate > target_rate) 00257 { 00258 nthr++; 00259 //cout<<i+1<<" "<<j<<" rate = "<<rate<<" Hz - offset:"<<offset[i][j]<<" -> "<<offset[i][j]-1<<endl; 00260 } 00261 00262 if (action != "readonly") 00263 { 00264 //if rate > target, lower offset and define it as set 00265 if (rate > target_rate) 00266 { 00267 offset[i][j]--; 00268 set[i][j] = 1; 00269 if (action == "correctoffset"){cout<<i+1<<" "<<j<<" "<<offset[i][j]+1<<" -> "<<offset[i][j]<<endl;} 00270 } 00271 00272 if (action == "increaseoffset") 00273 { 00274 if (!set[i][j]) 00275 { 00276 offset[i][j]++; 00277 cout<<i+1<<" "<<j<<" "<<offset[i][j]-1<<" -> "<<offset[i][j]<<endl; 00278 } 00279 } 00280 } 00281 } 00282 } 00283 00284 00285 00286 //Re-write offset map and channel set files 00287 00288 if (action == "correctoffset" || action == "increaseoffset") 00289 { 00290 00291 TString outfile11 = infile11; 00292 TString outfile12 = infile12; 00293 00294 TString outfile21 = infile21; 00295 TString outfile22 = infile22; 00296 00297 TString outfile31 = infile31; 00298 TString outfile32 = infile32; 00299 00300 ofstream out11(outfile11.Data()); 00301 ofstream out12(outfile12.Data()); 00302 00303 ofstream out21(outfile21.Data()); 00304 ofstream out22(outfile22.Data()); 00305 00306 ofstream out31(outfile31.Data()); 00307 ofstream out32(outfile32.Data()); 00308 00309 00310 for (int i=0;i<144;i++) 00311 { 00312 for (int j=0;j<64;j++) 00313 { 00314 //slab1 00315 if (i<48) 00316 { 00317 out11<<i+1<<" "<<j<<" "<<offset[i][j]<<endl; 00318 hoffset->Fill(offset[i][j]); 00319 if (set[i][j]) 00320 { 00321 out12<<i+1<<" "<<j<<endl; 00322 } 00323 } 00324 else 00325 { 00326 //slab2 00327 if (i<96) 00328 { 00329 out21<<i+1<<" "<<j<<" "<<offset[i][j]<<endl; 00330 hoffset->Fill(offset[i][j]); 00331 if (set[i][j]) 00332 { 00333 out22<<i+1<<" "<<j<<endl; 00334 } 00335 } 00336 //slab3 00337 else 00338 { 00339 out31<<i+1<<" "<<j<<" "<<offset[i][j]<<endl; 00340 hoffset->Fill(offset[i][j]); 00341 if (set[i][j]) 00342 { 00343 out32<<i+1<<" "<<j<<endl; 00344 } 00345 } 00346 } 00347 } 00348 } 00349 } 00350 00351 cout<<endl; 00352 cout<<"Number of channel with noise rate large than "<<target_rate<<" Hz = "<<nthr<<endl; 00353 cout<<"Average number of hits per readout = "<<hnhit->GetMean()<<endl; 00354 cout<<endl; 00355 00356 00357 00358 TCanvas * c0 = new TCanvas("c0","",10,10,1000,500); 00359 00360 cout<<endl; 00361 cout<<"Write histos to files: "<<endl; 00362 00363 hnhit->Draw(); 00364 TString picfilename = dir + "hnhit.png"; 00365 cout<<picfilename<<endl; 00366 c0->Print(picfilename); 00367 00368 hoffset->Draw(); 00369 picfilename = dir + "hoffset.png"; 00370 cout<<picfilename<<endl; 00371 c0->Print(picfilename); 00372 00373 hxy->Draw("zcol"); 00374 picfilename = dir + "hxy.png"; 00375 cout<<picfilename<<endl; 00376 c0->Print(picfilename); 00377 00378 c0->SetLogy(); 00379 hc_rate->Draw(); 00380 picfilename = dir + "hc_rate.png"; 00381 cout<<picfilename<<endl; 00382 c0->Print(picfilename); 00383 00384 hrate->Draw(); 00385 picfilename = dir + "hrate.png"; 00386 cout<<picfilename<<endl; 00387 c0->Print(picfilename); 00388 00389 } 00390 00391 00392 } 00393 }
