MTEvent Class Reference

#include <MTEvent.hh>

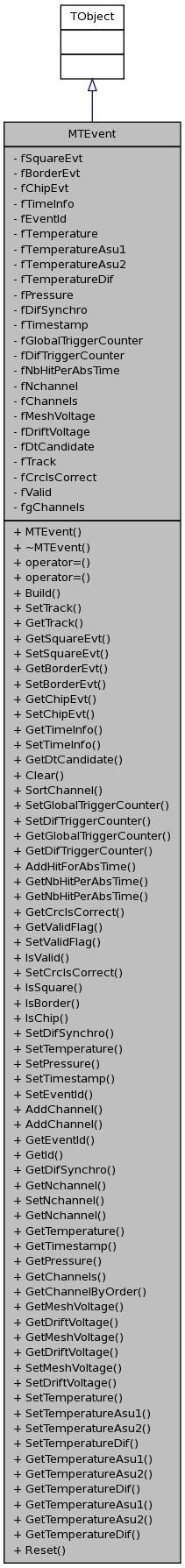

Inheritance diagram for MTEvent:

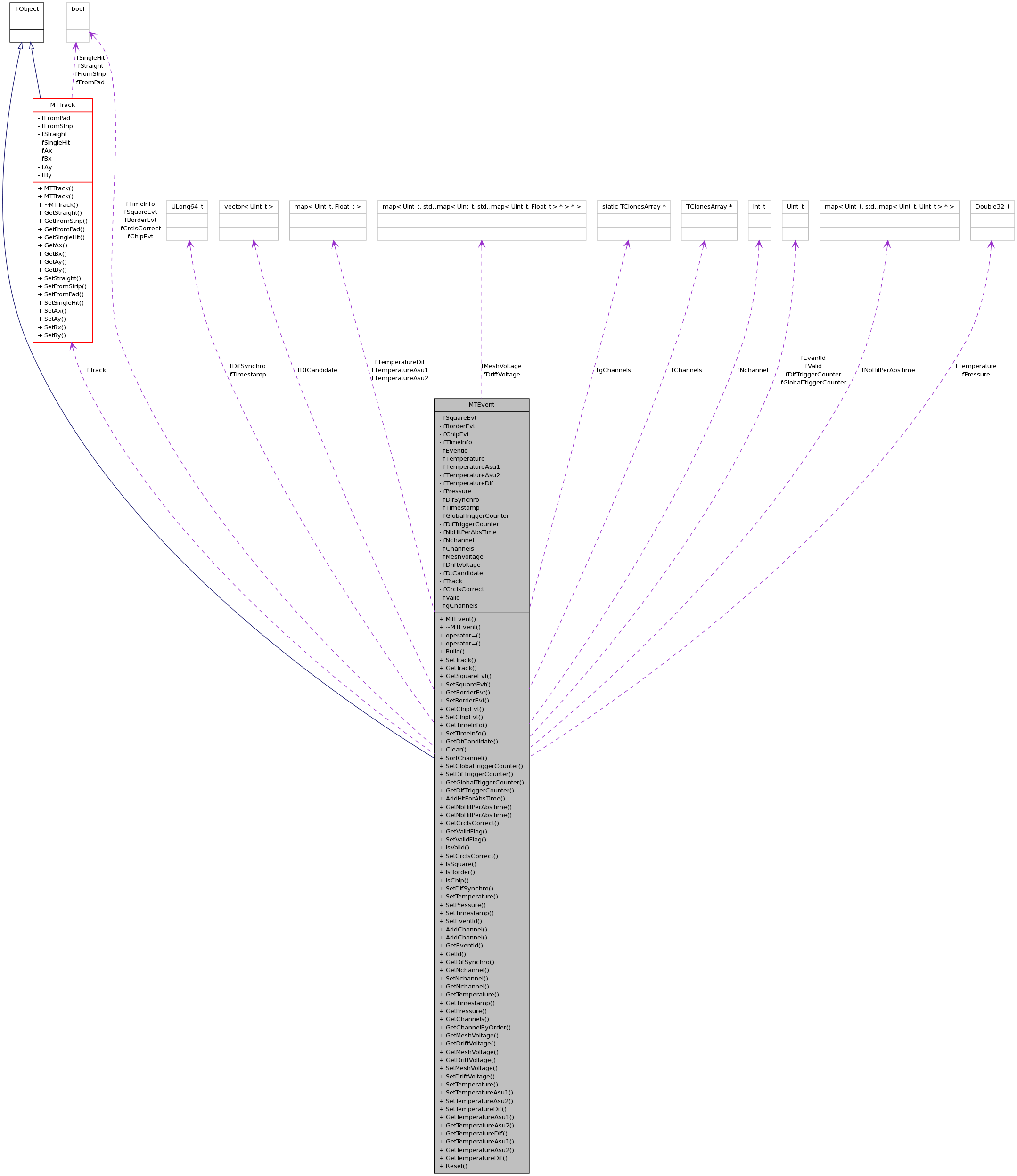

[legend]Collaboration diagram for MTEvent:


Public Member Functions
	MTEvent ()
virtual	~MTEvent ()
MTEvent &	operator= (const Event &rhs)
MTEvent &	operator= (const MTEvent &rhs)
void	Build (UInt_t evtId, ULong64_t difSynchro, Double32_t temperature, Double32_t pressure, ULong64_t timestamp)
void	SetTrack (MTTrack *aTrack)
MTTrack *	GetTrack (void)
bool	GetSquareEvt (void)
void	SetSquareEvt (bool value)
bool	GetBorderEvt (void)
void	SetBorderEvt (bool value)
bool	GetChipEvt (void)
void	SetChipEvt (bool value)
bool	GetTimeInfo (void)
void	SetTimeInfo (bool value)
std::vector< UInt_t > &	GetDtCandidate ()
void	Clear (Option_t *option="")
void	SortChannel ()
void	SetGlobalTriggerCounter (UInt_t value)
void	SetDifTriggerCounter (UInt_t value)
UInt_t	GetGlobalTriggerCounter (void) const
UInt_t	GetDifTriggerCounter (void) const
void	AddHitForAbsTime (UInt_t boardId, UInt_t abs_time, UInt_t increment)
UInt_t	GetNbHitPerAbsTime (UInt_t boardId, UInt_t abs_time) const
std::map< UInt_t, std::map< UInt_t, UInt_t > * > &	GetNbHitPerAbsTime ()
bool	GetCrcIsCorrect (void) const
UInt_t	GetValidFlag (void) const
void	SetValidFlag (UInt_t value)
bool	IsValid (void)
void	SetCrcIsCorrect (bool value)
bool	IsSquare (UInt_t nbPad, UInt_t &asu, UInt_t &abs_time, UInt_t chb)
bool	IsBorder (UInt_t nbPad, UInt_t &asu, UInt_t &abs_time, UInt_t chb)
bool	IsChip (UInt_t nbPad, UInt_t &chip, UInt_t &abs_time, UInt_t chb)
void	SetDifSynchro (ULong64_t t)
void	SetTemperature (Double32_t t)
void	SetPressure (Double32_t t)
void	SetTimestamp (ULong64_t t)
void	SetEventId (UInt_t aId)
MTChannel *	AddChannel (const ChannelHit &hit, UInt_t order)
MTChannel *	AddChannel (MTChannel *aChannel)
UInt_t	GetEventId () const
UInt_t	GetId () const
ULong64_t	GetDifSynchro () const
UInt_t	GetNchannel () const
void	SetNchannel (Int_t n)
UInt_t	GetNchannel (UInt_t chamberId) const
Double32_t	GetTemperature () const
ULong64_t	GetTimestamp () const
Double32_t	GetPressure () const
TClonesArray *	GetChannels () const
MTChannel *	GetChannelByOrder (UInt_t order, UInt_t chamberId) const
std::map< UInt_t, std::map< UInt_t, std::map< UInt_t, Float_t > * > * >	GetMeshVoltage () const
std::map< UInt_t, std::map< UInt_t, std::map< UInt_t, Float_t > * > * >	GetDriftVoltage () const
Float_t	GetMeshVoltage (const Int_t chamberId, Int_t difId, Int_t boardId) const
Float_t	GetDriftVoltage (const Int_t chamberId, Int_t difId, Int_t boardId) const
void	SetMeshVoltage (const Int_t chamberId, Int_t difId, Int_t boardId, const Float_t aValue)
void	SetDriftVoltage (const Int_t chamberId, Int_t difId, Int_t boardId, const Float_t aValue)
void	SetTemperature (UInt_t difId, Float_t asu1, Float_t asu2, Float_t dif)
void	SetTemperatureAsu1 (UInt_t difId, Float_t asu1)
void	SetTemperatureAsu2 (UInt_t difId, Float_t asu2)
void	SetTemperatureDif (UInt_t difId, Float_t dif)
Float_t	GetTemperatureAsu1 (UInt_t difId) const
Float_t	GetTemperatureAsu2 (UInt_t difId) const
Float_t	GetTemperatureDif (UInt_t difId) const
std::map< UInt_t, Float_t >	GetTemperatureAsu1 (void)
std::map< UInt_t, Float_t >	GetTemperatureAsu2 (void)
std::map< UInt_t, Float_t >	GetTemperatureDif (void)
Static Public Member Functions
static void	Reset (Option_t *option="")
Private Attributes
bool	fSquareEvt
bool	fBorderEvt
bool	fChipEvt
bool	fTimeInfo
UInt_t	fEventId
Double32_t	fTemperature
std::map< UInt_t, Float_t >	fTemperatureAsu1
std::map< UInt_t, Float_t >	fTemperatureAsu2
std::map< UInt_t, Float_t >	fTemperatureDif
Double32_t	fPressure
ULong64_t	fDifSynchro
ULong64_t	fTimestamp
UInt_t	fGlobalTriggerCounter
UInt_t	fDifTriggerCounter
std::map< UInt_t, std::map< UInt_t, UInt_t > * >	fNbHitPerAbsTime
Int_t	fNchannel
TClonesArray *	fChannels
std::map< UInt_t, std::map< UInt_t, std::map< UInt_t, Float_t > * > * >	fMeshVoltage
std::map< UInt_t, std::map< UInt_t, std::map< UInt_t, Float_t > * > * >	fDriftVoltage
std::vector< UInt_t >	fDtCandidate
MTTrack *	fTrack
bool	fCrcIsCorrect
UInt_t	fValid
Static Private Attributes
static TClonesArray *	fgChannels

Detailed Description

CLASS EVENT (containing Header and MTChannel)

Hardroc + Dirac: 1 evenement == 1 lecture de tous les chips d'une Dif
Gassiplex : 1 evenement == 1 Trigger PM == 1 ecriture Gassiplex

Definition at line 25 of file MTEvent.hh.

Constructor & Destructor Documentation

MTEvent::MTEvent ( )

MTEvent::~MTEvent ( ) [virtual]

Definition at line 48 of file MTEvent.cpp.

00049 {
00050    Clear();
00051 }

Member Function Documentation

MTEvent & MTEvent::operator= ( const Event & rhs )

Definition at line 98 of file MTEvent.cpp.

00100 {
00101      try
00102       {
00103         fCrcIsCorrect = aEvent.getCrcIsCorrect();
00104         fValid = aEvent.getValidFlag();
00105         this->Build(aEvent.getId(), aEvent.getDifSynchro(), aEvent.getTemperature(), aEvent.getPressure(), aEvent.getTimeStamp());
00106         fTrack=NULL;
00107         fTimeInfo=true;
00108         fSquareEvt=false;
00109         fBorderEvt=false;
00110         fChipEvt=false;
00111
00112   const map<unsigned int,Float_t>& asu1 = aEvent.getTemperatureAsu1();
00113   const map<unsigned int,Float_t>& asu2 = aEvent.getTemperatureAsu2();
00114   const map<unsigned int,Float_t>& dif = aEvent.getTemperatureDif();
00115
00116   for ( map<UInt_t,Float_t>::const_iterator it = asu1.begin(); it != asu1.end(); it++ )
00117   {
00118     UInt_t difId = it->first;
00119     Float_t value = it->second;
00120     this->SetTemperatureAsu1(difId,value);
00121   }
00122   for ( map<UInt_t,Float_t>::const_iterator it = asu2.begin(); it != asu2.end(); it++ )
00123   {
00124     UInt_t difId = it->first;
00125     Float_t value = it->second;
00126     this->SetTemperatureAsu2(difId,value);
00127   }
00128   for ( map<UInt_t,Float_t>::const_iterator it = dif.begin(); it != dif.end(); it++ )
00129   {
00130     UInt_t difId = it->first;
00131     Float_t value = it->second;
00132     this->SetTemperatureDif(difId,value);
00133   }
00134
00135         ChamberMap_t chamberList = aEvent.getRun().getDetector().getChambers();
00136         for (ChamberMap_t::iterator iter=chamberList.begin(); iter!=chamberList.end(); iter++)
00137         {
00138           Chamber& chamber = *(iter->second);
00139           BoardMap_t boardList = chamber.getBoards();
00140           for ( BoardMap_t::iterator boardIter=boardList.begin(); boardIter!=boardList.end(); boardIter++)
00141           {
00142             ui32 difId = 0;
00143             Board& board = *(boardIter->second);
00144             try
00145             {
00146               const Dif* dif = board.getDif();
00147               if ( dif != NULL )
00148               {  // ! Gassilplex Board
00149                 difId = board.getDif()->getId();
00150               }
00151               const BoardSlowControl& boardSC =  aEvent.getBoardSlowControl(chamber.getId(),difId,board.getId());
00152               this->SetDriftVoltage(chamber.getId(),difId,board.getId(),boardSC.getDrift().voltage);
00153               this->SetMeshVoltage(chamber.getId(),difId,board.getId(),boardSC.getMesh().voltage);
00154             }
00155             catch ( MicroException e)
00156             {
00157              FILE_LOG(logDEBUG) << "---BoardSlowControl not found chamberid[" << chamber.getId() << "] difId[" << difId <<"] boardId[" << board.getId() <<"]" << endl;
00158             }
00159           }
00160
00161
00162                                         this->SetGlobalTriggerCounter(aEvent.getGlobalTriggerCounter());
00163                                         this->SetDifTriggerCounter(aEvent.getDifTriggerCounter());
00164           try
00165           {
00166               const  multiset<ChannelHit*,sorter>& list = aEvent.getChannelHitVector(chamber);
00167               int order = 0 ;
00168               for (set<ChannelHit*,sorter>::iterator iter=list.begin(); iter!=list.end(); iter++)
00169               {
00170                 try
00171                 {
00172                   //const ChannelHit& channelHit = *(*iter);
00173                   ChannelHit& channelHit = *(*iter);
00174                   if ( chamber.getType().find("GASSIPLEX")!=string::npos)
00175                                                                         {
00176                                                                                                 channelHit.setTimestamp(aEvent.getTimeStamp());
00177                                                                   }
00178
00179
00180                   MTChannel *ch = this->AddChannel(channelHit, order);
00181
00182
00183
00184                   order++;  // because aEvent have already been  sorted
00185                 } // end try block
00186                 catch (MicroException e)
00187                 {
00188                 }
00189               } // end for channelHits for this chamber
00190           }
00191           catch (MicroException e)
00192           {
00193                     // get ChamberHitVector for next chamber
00194           }
00195         } // end for chamber
00196       } //try block
00197       catch (MicroException e)
00198       {
00199           throw MicroException(e.getMessage());
00200       }
00201        // Save all objects in this file
00202       return *this;
00203
00204 }

MTEvent & MTEvent::operator= ( const MTEvent & rhs )

Definition at line 56 of file MTEvent.cpp.

00057 {
00058
00059   // It is not a real copy as Channels are share as static class member
00060   // So both source and destination MTEvent share the same channels and MTTrack
00061    fSquareEvt = rhs.fSquareEvt;
00062    fBorderEvt = rhs.fBorderEvt;
00063    fChipEvt = rhs.fChipEvt;
00064    fTimeInfo = rhs.fTimeInfo;
00065    fEventId = rhs.fEventId;
00066    fTemperature = rhs.fTemperature;
00067    fPressure = rhs.fPressure;
00068    fDifSynchro = rhs.fDifSynchro;
00069    fTimestamp = rhs.fTimestamp;
00070    fGlobalTriggerCounter = rhs.fGlobalTriggerCounter;
00071    fDifTriggerCounter = rhs.fDifTriggerCounter;
00072    fCrcIsCorrect = rhs.fCrcIsCorrect;
00073    fValid = rhs.fValid;
00074    fNchannel = rhs.fNchannel;
00075
00076    fNbHitPerAbsTime = rhs.fNbHitPerAbsTime;
00077    fChannels = rhs.fChannels;
00078    fMeshVoltage = rhs.fMeshVoltage;
00079    fDriftVoltage = rhs.fDriftVoltage;
00080    fTrack = rhs.fTrack;
00081    //static TClonesArray *gChannels; // Do not copy class static member
00082    fTemperatureAsu1 = rhs.fTemperatureAsu1;
00083    fTemperatureAsu2 = rhs.fTemperatureAsu2;
00084    fTemperatureDif = rhs.fTemperatureDif;
00085 }

void MTEvent::Build	(	UInt_t	evtId,
		ULong64_t	difSynchro,
		Double32_t	temperature,
		Double32_t	pressure,
		ULong64_t	timestamp
	)

Definition at line 88 of file MTEvent.cpp.

Referenced by operator=().

00089 {
00090 fEventId=evtId;
00091 fTemperature=temperature;
00092 fPressure=pressure;
00093 fTimestamp=timestamp;
00094 fDifSynchro = difSynchro;
00095 }

void MTEvent::SetTrack ( MTTrack * aTrack ) [inline]

Definition at line 78 of file MTEvent.hh.

Referenced by Find_track(), and main().

00078 { fTrack = aTrack;};

MTTrack* MTEvent::GetTrack ( void ) [inline]

Definition at line 79 of file MTEvent.hh.

Referenced by buildCaloEvent(), Fill_histos(), main(), and selectAndCopyEvent().

00079 {  return fTrack;} ;

bool MTEvent::GetSquareEvt ( void ) [inline]

Definition at line 81 of file MTEvent.hh.

Referenced by main(), and selectAndCopyEvent().

00081 { return fSquareEvt; } ;

void MTEvent::SetSquareEvt ( bool value ) [inline]

Definition at line 82 of file MTEvent.hh.

Referenced by main().

00082 { fSquareEvt = value; } ;

bool MTEvent::GetBorderEvt ( void ) [inline]

Definition at line 83 of file MTEvent.hh.

00083 { return fBorderEvt; } ;

void MTEvent::SetBorderEvt ( bool value ) [inline]

Definition at line 84 of file MTEvent.hh.

00084 { fBorderEvt = value; } ;

bool MTEvent::GetChipEvt ( void ) [inline]

Definition at line 85 of file MTEvent.hh.

00085 { return fChipEvt; } ;

void MTEvent::SetChipEvt ( bool value ) [inline]

Definition at line 86 of file MTEvent.hh.

00086 { fChipEvt = value; } ;

bool MTEvent::GetTimeInfo ( void ) [inline]

Definition at line 87 of file MTEvent.hh.

Referenced by main(), and selectAndCopyEvent().

00087 { return fTimeInfo; } ;

void MTEvent::SetTimeInfo ( bool value ) [inline]

Definition at line 88 of file MTEvent.hh.

Referenced by main(), and Valid_time().

00088 { fTimeInfo = value; } ;

std::vector<UInt_t>& MTEvent::GetDtCandidate ( ) [inline]

Definition at line 90 of file MTEvent.hh.

Referenced by main(), and selectAndCopyEvent().

00090 { return fDtCandidate; }

void MTEvent::Clear ( Option_t * option = "" )

Definition at line 648 of file MTEvent.cpp.

Referenced by main(), and ~MTEvent().

00649 {
00650   fChannels->Clear("C"); //will also call Channel::Clear
00651   fNchannel = 0;
00652
00653   for (std::map< UInt_t, std::map<UInt_t, UInt_t>* >::iterator iter = fNbHitPerAbsTime.begin(); iter != fNbHitPerAbsTime.end(); iter++)
00654   {
00655     map<UInt_t, UInt_t> *byBoard = iter->second;
00656     delete byBoard;
00657   }
00658   fNbHitPerAbsTime.clear();
00659 }

void MTEvent::Reset ( Option_t * option = "" ) [static]

Definition at line 663 of file MTEvent.cpp.

Referenced by G__setup_memfuncMTEvent(), and G__TreeClass_481_0_17().

00664 {
00665 // Static function to reset all static objects for this event
00666 //   fgChannels->Delete(option);
00667
00668    delete fgChannels; fgChannels = 0;
00669 }

void MTEvent::SortChannel ( ) [inline]

Definition at line 94 of file MTEvent.hh.

00094 { fChannels->Sort(); };

void MTEvent::SetGlobalTriggerCounter ( UInt_t value ) [inline]

Definition at line 95 of file MTEvent.hh.

Referenced by FillEvent(), main(), and operator=().

00095 { fGlobalTriggerCounter = value; };

void MTEvent::SetDifTriggerCounter ( UInt_t value ) [inline]

Definition at line 96 of file MTEvent.hh.

Referenced by operator=().

00096 { fDifTriggerCounter = value; };

UInt_t MTEvent::GetGlobalTriggerCounter ( void ) const [inline]

Definition at line 97 of file MTEvent.hh.

Referenced by FillEvent(), and main().

00097 { return fGlobalTriggerCounter; };

UInt_t MTEvent::GetDifTriggerCounter ( void ) const [inline]

Definition at line 98 of file MTEvent.hh.

Referenced by main().

00098 { return fDifTriggerCounter; };

void MTEvent::AddHitForAbsTime	(	UInt_t	boardId,
		UInt_t	abs_time,
		UInt_t	increment
	)

Definition at line 721 of file MTEvent.cpp.

Referenced by AddChannel().

00722 {
00723
00724  map<UInt_t, UInt_t>* boardMap = NULL;
00725
00726  // Search map for the boardId
00727  if ( fNbHitPerAbsTime.find(boardId) != fNbHitPerAbsTime.end())
00728  {
00729     boardMap = fNbHitPerAbsTime.find(boardId)->second;
00730  }
00731  else
00732  {
00733     boardMap = new map<UInt_t, UInt_t>();
00734     fNbHitPerAbsTime.insert(make_pair(boardId,boardMap));
00735  }
00736
00737
00738
00739
00740   // seatch ab_time in boardId map
00741  if (boardMap->find(abs_time) != boardMap->end())
00742  {
00743     UInt_t b4 =  boardMap->find(abs_time)->second;
00744     UInt_t foo = b4   + increment;
00745     (*boardMap)[abs_time]=foo;
00746  }
00747  else
00748  {
00749       boardMap->insert(make_pair(abs_time,increment));
00750  }
00751
00752
00753  boardMap = fNbHitPerAbsTime.find(boardId)->second;
00754
00755
00756 }

UInt_t MTEvent::GetNbHitPerAbsTime	(	UInt_t	boardId,
		UInt_t	abs_time
	)			const

Definition at line 759 of file MTEvent.cpp.

Referenced by main().

00760 {
00761   map<UInt_t, UInt_t>* boardMap = NULL;
00762
00763   if ( fNbHitPerAbsTime.find(boardId) != fNbHitPerAbsTime.end())
00764   {
00765     boardMap = fNbHitPerAbsTime.find(boardId)->second;
00766     return boardMap->find(abs_time)->second;
00767   }
00768
00769   else
00770   {
00771     return 0;
00772   }
00773
00774 }

std::map< UInt_t, std::map<UInt_t, UInt_t>* >& MTEvent::GetNbHitPerAbsTime ( ) [inline]

Definition at line 102 of file MTEvent.hh.

00102 { return fNbHitPerAbsTime; };

bool MTEvent::GetCrcIsCorrect ( void ) const [inline]

Definition at line 104 of file MTEvent.hh.

Referenced by main().

00104 { return fCrcIsCorrect;} ;

UInt_t MTEvent::GetValidFlag ( void ) const [inline]

Definition at line 105 of file MTEvent.hh.

Referenced by main().

00105 { return fValid;} ;

void MTEvent::SetValidFlag ( UInt_t value ) [inline]

Definition at line 106 of file MTEvent.hh.

00106 { fValid = fValid + value; };

bool MTEvent::IsValid ( void )

Definition at line 777 of file MTEvent.cpp.

Referenced by main(), and selectAndCopyEvent().

00778 {
00779   if ( fValid == VALID ) return true;
00780   return false;
00781 }

void MTEvent::SetCrcIsCorrect ( bool value ) [inline]

Definition at line 109 of file MTEvent.hh.

Referenced by main().

00109 { fCrcIsCorrect = value; };

bool MTEvent::IsSquare	(	UInt_t	nbPad,
		UInt_t &	asu,
		UInt_t &	abs_time,
		UInt_t	chb
	)

Definition at line 207 of file MTEvent.cpp.

Referenced by main().

00208         : nbPad = threshold where we consider an event "Square"; chb = chamber ID.
00209 //outputs: asu = the asu where the event is square; abs_time = the abs_time when the event is square.
00210 {
00211   //square boolean identifier
00212   bool square = false;
00213   //set reference values
00214   asu = -1;
00215   abs_time = -1;
00216
00217   //declare the hits counter map
00218   map<unsigned int,map<unsigned int,int> > channels_map;// key1=asu (board_id), key2=hit_time
00219
00220   //loop on all the channels of the event
00221   UInt_t nchannel = this->GetNchannel();
00222   for (int j=0;j<nchannel;j++){
00223
00224     //this channel
00225     MTChannel* channel = (MTChannel*)this->GetChannels()->UncheckedAt(j);
00226
00227     if (channel->GetChamberId()==chb)
00228       {
00229         //at each channel get board_id and hit_time
00230         UInt_t hit_time =  channel->GetBcId_Abs() - (channel->GetBcId_Dif() - channel->GetBcId_Hit() );
00231         UInt_t board_id = channel->GetBoardId();
00232
00233         //upgrade the hits counter of the good board at the good time:
00234         // if this asu doesn't exist yet
00235         if ( channels_map.find(board_id) == channels_map.end()) {
00236           //create it in the map and fill it
00237           map<unsigned int, int> nbHitMap;
00238           nbHitMap[hit_time]=1;
00239           channels_map.insert(make_pair(board_id,nbHitMap));
00240         }
00241         // if this asu already exist
00242         else{
00243           //find it
00244           map<unsigned int, int> &nbHitMap =  channels_map.find(board_id)->second;
00245           //if this hit_time doesn't exist yet
00246           if (nbHitMap.find(hit_time) == nbHitMap.end()){
00247             //add id
00248             nbHitMap.insert(make_pair(hit_time,1));
00249           }
00250           //if this abs time already exist
00251           else{
00252             //fill it
00253             nbHitMap[hit_time] = nbHitMap[hit_time]++;
00254           }
00255         }
00256       }
00257   }
00258
00259   //Loop on each board, at each time, to identify if this event is square
00260   map<unsigned int, map<unsigned int,int> >::iterator iter1;
00261   for(iter1=channels_map.begin();iter1!=channels_map.end();iter1++){
00262
00263     unsigned int azu=iter1->first;
00264     map<unsigned int,int> hits_per_time=iter1->second;
00265
00266     map<unsigned int,int>::iterator iter2;
00267     for(iter2=hits_per_time.begin();iter2!=hits_per_time.end();iter2++){
00268
00269       unsigned int time = iter2->first;
00270       int nb_hits = iter2->second;
00271
00272       //if this is a square event
00273       if (nb_hits>=nbPad) {
00274         square=true;
00275         asu = azu;
00276         abs_time = time;
00277       }
00278     }
00279   }
00280   return square;
00281 }

bool MTEvent::IsBorder	(	UInt_t	nbPad,
		UInt_t &	asu,
		UInt_t &	abs_time,
		UInt_t	chb
	)

Definition at line 284 of file MTEvent.cpp.

00285         : nbPad = threshold where we consider an event "Border"; chb = chamber ID.
00286 //outputs: asu = the asu where the event is border; abs_time = the abs_time when the event is border.
00287 {
00288   //border boolean identifier
00289   bool border = false;
00290   //set reference values
00291   asu = -1;
00292   abs_time = -1;
00293
00294   //an event can be border only if it is not square (square threshold set to 450 hits)
00295   UInt_t A;
00296   UInt_t T;
00297   if(this->IsSquare(450,A,T,chb)==0) {
00298     //declare the hits counter map
00299     map<unsigned int,map<unsigned long,unsigned int> > channels_map;// key1=asu (board_id), key2=hit_time
00300
00301     //loop on all the channels of the event
00302     UInt_t nchannel = this->GetNchannel();
00303     for (unsigned int j=0;j<nchannel;j++){
00304
00305       //this channel
00306       MTChannel* channel = (MTChannel*)this->GetChannels()->UncheckedAt(j);
00307
00308       if (channel->GetChamberId()==chb)
00309         {
00310           //at each channel get board_id and hit_time
00311           ULong_t hit_time =  channel->GetBcId_Abs() - (channel->GetBcId_Dif() - channel->GetBcId_Hit() );
00312           UInt_t board_id = channel->GetBoardId();
00313
00314           //get the position of this hit/channel
00315           //Int_t xpos = channel->GetX()/1000;
00316           //Int_t ypos = channel->GetY()/1000;
00317
00318           //if the hit is not on the borders of an asu go to next hit
00319           if (channel->GetX() != 0000 && channel->GetX() != 310000 && channel->GetX() != 320000 && channel->GetX() != 640000 && channel->GetX() != 650000 && channel->GetX() != 960000 && channel->GetY() != 000000 && channel->GetY() != 470000 && channel->GetY() != 480000 && channel->GetY() != 960000) continue;
00320
00321           //upgrade the hits counter of the good board at the good time
00322           if (channels_map.find(board_id) == channels_map.end()) { // if this asu doesn't exist yet
00323
00324             map<unsigned long, unsigned int> nbHitMap;
00325           nbHitMap[hit_time]=1;
00326           channels_map.insert(make_pair(board_id,nbHitMap));
00327           }
00328           else{ // if this asu already exist
00329
00330             map<unsigned long, unsigned int> &nbHitMap =  channels_map.find(board_id)->second;
00331             if (nbHitMap.find(hit_time) == nbHitMap.end()){ //if this hit_time doesn't exist yet
00332
00333               nbHitMap.insert(make_pair(hit_time,1));
00334             }
00335             else{ //if this abs time already exist
00336
00337               nbHitMap[hit_time] = nbHitMap[hit_time]++;
00338             }
00339           }
00340         }
00341
00342       //Loop on each board, at each time, to identify if this event is border
00343       map<unsigned int, map<unsigned long,unsigned int> >::iterator iter1;
00344       for(iter1=channels_map.begin();iter1!=channels_map.end();iter1++){
00345
00346         unsigned int azu=iter1->first;
00347         map<unsigned long,unsigned int> hits_per_time=iter1->second;
00348
00349         map<unsigned long,unsigned int>::iterator iter2;
00350         for(iter2=hits_per_time.begin();iter2!=hits_per_time.end();iter2++){
00351
00352           unsigned long time = iter2->first;
00353           unsigned int nb_hits = iter2->second;
00354
00355           //if this is a border event
00356           if (nb_hits>=nbPad) {
00357             border = true;
00358             asu = azu;
00359             abs_time = time;
00360           }
00361         }
00362       }
00363     }
00364   }
00365   return border;
00366 }

bool MTEvent::IsChip	(	UInt_t	nbPad,
		UInt_t &	chip,
		UInt_t &	abs_time,
		UInt_t	chb
	)

Definition at line 369 of file MTEvent.cpp.

00370         : nbPad = threshold where we consider an event "Chip"; chb = chamber ID.
00371 //outputs: chip = the chip where the event is chip; abs_time = the abs_time when the event is chip.
00372 {
00373   //chip boolean identifier
00374   bool me_chip = false;
00375   //set reference values
00376   chip = -1;
00377   abs_time = -1;
00378
00379   //declare the hits counter map
00380   map<unsigned int,map<unsigned long,unsigned int> > channels_map;// key1=chip (chip_id), key2=hit_time
00381
00382   //loop on all the channels of the event
00383   UInt_t nchannel = this->GetNchannel();
00384   for (unsigned int j=0;j<nchannel;j++){
00385
00386     //this channel
00387     MTChannel* channel = (MTChannel*)this->GetChannels()->UncheckedAt(j);
00388
00389     if (channel->GetChamberId()==chb)
00390       {
00391         //at each channel get chip_id and hit_time
00392         ULong_t hit_time =  channel->GetBcId_Abs() - (channel->GetBcId_Dif() - channel->GetBcId_Hit() );
00393         UInt_t chip_id = channel->GetChipId();
00394
00395         //get the position of this hit/channel
00396         //Int_t xpos = channel->GetX()/1000;
00397         //Int_t ypos = channel->GetY()/1000;
00398
00399         //if the hit is not on the chips of an chip go to next hit
00400         if (channel->GetX() != 0000 && channel->GetX() != 310000 && channel->GetX() != 320000 && channel->GetX() != 640000 && channel->GetX() != 650000 && channel->GetX() != 960000 && channel->GetY() != 000000 && channel->GetY() != 470000 && channel->GetY() != 480000 && channel->GetY() != 960000) continue;
00401
00402         //upgrade the hits counter of the good chip at the good time
00403         if (channels_map.find(chip_id) == channels_map.end()) { // if this chip doesn't exist yet
00404
00405           map<unsigned long, unsigned int> nbHitMap;
00406           nbHitMap[hit_time]=1;
00407           channels_map.insert(make_pair(chip_id,nbHitMap));
00408         }
00409         else{ // if this chip already exist
00410
00411           map<unsigned long, unsigned int> &nbHitMap =  channels_map.find(chip_id)->second;
00412           if (nbHitMap.find(hit_time) == nbHitMap.end()){ //if this hit_time doesn't exist yet
00413
00414             nbHitMap.insert(make_pair(hit_time,1));
00415           }
00416           else{ //if this abs time already exist
00417
00418             nbHitMap[hit_time] = nbHitMap[hit_time]++;
00419           }
00420         }
00421       }
00422
00423     //Loop on each chip, at each time, to identify if this event is chip
00424     map<unsigned int, map<unsigned long,unsigned int> >::iterator iter1;
00425     for(iter1=channels_map.begin();iter1!=channels_map.end();iter1++){
00426
00427       unsigned int chiip=iter1->first;
00428       map<unsigned long,unsigned int> hits_per_time=iter1->second;
00429
00430       map<unsigned long,unsigned int>::iterator iter2;
00431       for(iter2=hits_per_time.begin();iter2!=hits_per_time.end();iter2++){
00432
00433         unsigned long time = iter2->first;
00434         unsigned int nb_hits = iter2->second;
00435
00436         //if this is a chip event
00437         if (nb_hits>=nbPad) {
00438           me_chip = true;
00439           chip = chiip;
00440           abs_time = time;
00441         }
00442       }
00443     }
00444   }
00445   return me_chip;
00446 }

void MTEvent::SetDifSynchro ( ULong64_t t ) [inline]

Definition at line 114 of file MTEvent.hh.

Referenced by FillEvent(), and main().

00114 { fDifSynchro = t; };

void MTEvent::SetTemperature ( Double32_t t ) [inline]

Definition at line 115 of file MTEvent.hh.

Referenced by FillEvent().

00115 { fTemperature = t; };

void MTEvent::SetPressure ( Double32_t t ) [inline]

Definition at line 116 of file MTEvent.hh.

Referenced by FillEvent().

00116 { fPressure = t; };

void MTEvent::SetTimestamp ( ULong64_t t ) [inline]

Definition at line 117 of file MTEvent.hh.

Referenced by FillEvent().

00117 { fTimestamp = t; };

void MTEvent::SetEventId ( UInt_t aId ) [inline]

Definition at line 118 of file MTEvent.hh.

Referenced by main().

00118 { fEventId = aId; } ;

MTChannel * MTEvent::AddChannel	(	const ChannelHit &	hit,
		UInt_t	order
	)

Definition at line 596 of file MTEvent.cpp.

Referenced by main(), and operator=().

00596                                                                   {
00597 //Int_t value, UInt_t softId, UInt_t hardId, Int_t valueX, Int_t valueY, Int_t valueZ, UInt_t order)
00598
00599    // Add a new fTrack to the list of fTracks for this event.
00600    // To avoid calling the very time consuming operator new for each fTrack,
00601    // the standard but not well know C++ operator "new with placement"
00602    // is called. If fTracks[i] is 0, a new Track object will be created
00603    // otherwise the previous Track[i] will be overwritten.
00604
00605
00606    TClonesArray &channels = *fChannels;
00607
00608    MTChannel *channel = new(channels[fNchannel++]) MTChannel(hit, order);
00609    UInt_t bcIdHit =  channel->GetBcId_Hit();
00610    if ( bcIdHit != 0 )
00611    {
00612      UInt_t boardId = channel->GetSoftId().GetBoardId();
00613      UInt_t absolute_time = channel->GetBcId_Abs() - (channel->GetBcId_Dif() - channel->GetBcId_Hit() ) ;
00614      this->AddHitForAbsTime(boardId,absolute_time,1);
00615    }
00616
00617    return channel;
00618 }

MTChannel * MTEvent::AddChannel ( MTChannel * aChannel )

Definition at line 620 of file MTEvent.cpp.

00620                                                   {
00621 //Int_t value, UInt_t softId, UInt_t hardId, Int_t valueX, Int_t valueY, Int_t valueZ, UInt_t order)
00622
00623    // Add a new fTrack to the list of fTracks for this event.
00624    // To avoid calling the very time consuming operator new for each fTrack,
00625    // the standard but not well know C++ operator "new with placement"
00626    // is called. If fTracks[i] is 0, a new Track object will be created
00627    // otherwise the previous Track[i] will be overwritten.
00628
00629
00630    TClonesArray &channels = *fChannels;
00631    MTChannel *channel = new(channels[fNchannel++]) MTChannel(*aChannel);
00632    UInt_t bcIdHit =  channel->GetBcId_Hit();
00633    if ( bcIdHit != 0 )
00634    {
00635      UInt_t boardId = channel->GetSoftId().GetBoardId();
00636      UInt_t absolute_time = channel->GetBcId_Abs() - (channel->GetBcId_Dif() - channel->GetBcId_Hit() ) ;
00637      this->AddHitForAbsTime(boardId,absolute_time,1);
00638
00639    }
00640
00641
00642 //   channels[fNchannel++]  = aChannel;
00643
00644    return aChannel;
00645 }

UInt_t MTEvent::GetEventId ( ) const [inline]

Definition at line 123 of file MTEvent.hh.

Referenced by GetId(), main(), and CaloEvent::operator=().

00123 { return fEventId; };

UInt_t MTEvent::GetId ( void ) const [inline]

Definition at line 124 of file MTEvent.hh.

00124 { return GetEventId(); };

ULong64_t MTEvent::GetDifSynchro ( ) const [inline]

Definition at line 125 of file MTEvent.hh.

Referenced by FillEvent(), and main().

00125 { return fDifSynchro; } ;

UInt_t MTEvent::GetNchannel ( ) const [inline]

Definition at line 126 of file MTEvent.hh.

Referenced by EventDisplay::adjustSlider(), buildCaliceEvent(), buildCaloEvent(), Fill_histos(), FillChannels(), BeamProfile::FillHotChamber(), Find_track(), BeamProfile::GetHotChamber(), IsBorder(), IsChip(), IsSquare(), main(), CaloEvent::operator=(), and Valid_time().

00126 { return fNchannel; };

void MTEvent::SetNchannel ( Int_t n )

Definition at line 672 of file MTEvent.cpp.

Referenced by main().

00672                                  {
00673     fNchannel = n;
00674     if ( fNchannel == 0 )
00675         { fgChannels->Delete(); }
00676 }

UInt_t MTEvent::GetNchannel ( UInt_t chamberId ) const

Definition at line 704 of file MTEvent.cpp.

00705 {
00706    UInt_t items = 0;
00707
00708    TIter myiter(fChannels);
00709    MTChannel* channel;
00710    while( channel=(MTChannel *)myiter.Next())
00711    {
00712      if ( channel->GetChamberId() == aChamberId )
00713      {
00714        items++;
00715      }
00716    }
00717    return items;
00718 }

Double32_t MTEvent::GetTemperature ( void ) const [inline]

Definition at line 130 of file MTEvent.hh.

Referenced by Average_pres_temp(), FillEvent(), main(), and selectAndCopyEvent().

00130 { return fTemperature; };

ULong64_t MTEvent::GetTimestamp ( void ) const [inline]

Definition at line 131 of file MTEvent.hh.

Referenced by buildCaloEvent(), FillEvent(), and main().

00131 {return fTimestamp;};

Double32_t MTEvent::GetPressure ( void ) const [inline]

Definition at line 132 of file MTEvent.hh.

Referenced by Average_pres_temp(), FillEvent(), main(), and selectAndCopyEvent().

00132 { return fPressure; };

TClonesArray* MTEvent::GetChannels ( ) const [inline]

Definition at line 133 of file MTEvent.hh.

00133 { return fChannels; };

MTChannel * MTEvent::GetChannelByOrder	(	UInt_t	order,
		UInt_t	chamberId
	)			const

Definition at line 681 of file MTEvent.cpp.

00682 {
00683    UInt_t items = 0;
00684
00685    TIter myiter(fChannels);
00686    MTChannel* channel;
00687    while( channel=(MTChannel *)myiter.Next())
00688    {
00689      if ( channel->GetChamberId() == aChamberId )
00690      {
00691        if ( order == items )
00692        {
00693          return channel;
00694        }
00695        items++;
00696      }
00697    }
00698    return NULL;
00699
00700
00701 }

std::map<UInt_t, std::map<UInt_t, std::map<UInt_t, Float_t>* >* > MTEvent::GetMeshVoltage ( ) const [inline]

Definition at line 136 of file MTEvent.hh.

Referenced by FillEvent(), and main().

00136 { return fMeshVoltage; };

std::map<UInt_t, std::map<UInt_t, std::map<UInt_t, Float_t>* >* > MTEvent::GetDriftVoltage ( ) const [inline]

Definition at line 137 of file MTEvent.hh.

Referenced by FillEvent(), and main().

00137 { return fDriftVoltage; };

Float_t MTEvent::GetMeshVoltage	(	const Int_t	chamberId,
		Int_t	difId,
		Int_t	boardId
	)			const

Definition at line 449 of file MTEvent.cpp.

00450 {
00451    if ( fMeshVoltage.find(chamberId) != fMeshVoltage.end())
00452     {
00453       map<UInt_t, map<UInt_t, Float_t>* >* difContainer = fMeshVoltage.find(chamberId)->second;
00454       if (difContainer->find(difId) !=  difContainer->end())
00455       {
00456         map<UInt_t , Float_t>* boardContainer = difContainer->find(difId)->second;
00457         if (boardContainer->find(boardId) !=  boardContainer->end())
00458         {
00459             return boardContainer->find(boardId)->second;
00460         }
00461         else
00462         {
00463           throw MicroException("MTEvent::GetMeshVoltage : no board found");
00464         }
00465       }
00466       else
00467       {
00468           throw MicroException("MTEvent::GetMeshVoltage : no board found");
00469       }
00470     }
00471     else
00472 {
00473 }
00474     {
00475       throw MicroException("MTEvent::GetMeshVoltage : no board found");
00476     }
00477
00478 }

Float_t MTEvent::GetDriftVoltage	(	const Int_t	chamberId,
		Int_t	difId,
		Int_t	boardId
	)			const

Definition at line 480 of file MTEvent.cpp.

00481 {
00482    if ( fDriftVoltage.find(chamberId) != fDriftVoltage.end())
00483     {
00484       map<UInt_t, map<UInt_t, Float_t>* >* difContainer = fDriftVoltage.find(chamberId)->second;
00485       if (difContainer->find(difId) !=  difContainer->end())
00486       {
00487         map<UInt_t , Float_t>* boardContainer = difContainer->find(difId)->second;
00488         if (boardContainer->find(boardId) !=  boardContainer->end())
00489         {
00490             return boardContainer->find(boardId)->second;
00491         }
00492         else
00493         {
00494           throw MicroException("MTEvent::GetDriftVoltage : no board found");
00495         }
00496       }
00497       else
00498       {
00499           throw MicroException("MTEvent::GetDriftVoltage : no board found");
00500       }
00501     }
00502     else
00503     {
00504       throw MicroException("MTEvent::GetDriftVoltage : no board found");
00505     }
00506
00507
00508
00509 }

void MTEvent::SetMeshVoltage	(	const Int_t	chamberId,
		Int_t	difId,
		Int_t	boardId,
		const Float_t	aValue
	)

Definition at line 511 of file MTEvent.cpp.

Referenced by FillEvent(), and operator=().

00512 {
00513   // Search or create difs container for this chamber id
00514     if ( fMeshVoltage.find(chamberId) != fMeshVoltage.end())
00515     { // difs list already exit for this chamber
00516     }
00517     else
00518     { // does not exit create it
00519       map<UInt_t , map<UInt_t, Float_t>* > *difContainer = new map<UInt_t, map<UInt_t, Float_t>* >();
00520       fMeshVoltage.insert(make_pair(chamberId,difContainer));
00521     }
00522
00523     // Now we are sure that container for this chamber Id exist
00524     map<UInt_t, map<UInt_t, Float_t>* >* difContainer = fMeshVoltage.find(chamberId)->second;
00525
00526
00527     // Search or create boards container for this Difs
00528     if ( difContainer->find(difId) != difContainer->end())
00529     { // board list already exit for this dif
00530     }
00531     else
00532     {
00533       map<UInt_t, Float_t>* boardContainer = new map<UInt_t, Float_t>();
00534       difContainer->insert(make_pair(difId,boardContainer));
00535     }
00536
00537     // Now we are sure that container for this chamber Id  and DifId exist
00538     map<ui32, Float_t>* boardContainer = difContainer->find(difId)->second;
00539
00540     if ( boardContainer->find(boardId) != boardContainer->end())
00541     {
00542       (*boardContainer)[boardId] = aValue;
00543     }
00544     else
00545     {
00546       boardContainer->insert(make_pair(boardId,aValue));
00547     }
00548 }

void MTEvent::SetDriftVoltage	(	const Int_t	chamberId,
		Int_t	difId,
		Int_t	boardId,
		const Float_t	aValue
	)

Definition at line 551 of file MTEvent.cpp.

Referenced by FillEvent(), and operator=().

00552 {
00553   // Search or create difs container for this chamber id
00554     if ( fDriftVoltage.find(chamberId) != fDriftVoltage.end())
00555     { // difs list already exit for this chamber
00556     }
00557     else
00558     { // does not exit create it
00559       map<UInt_t , map<UInt_t, Float_t>* > *difContainer = new map<UInt_t, map<UInt_t, Float_t>* >();
00560       fDriftVoltage.insert(make_pair(chamberId,difContainer));
00561     }
00562
00563     // Now we are sure that container for this chamber Id exist
00564     map<UInt_t, map<UInt_t, Float_t>* >* difContainer = fDriftVoltage.find(chamberId)->second;
00565
00566
00567     // Search or create boards container for this Difs
00568     if ( difContainer->find(difId) != difContainer->end())
00569     { // board list already exit for this dif
00570     }
00571     else
00572     {
00573       map<UInt_t, Float_t>* boardContainer = new map<UInt_t, Float_t>();
00574       difContainer->insert(make_pair(difId,boardContainer));
00575     }
00576
00577     // Now we are sure that container for this chamber Id  and DifId exist
00578     map<ui32, Float_t>* boardContainer = difContainer->find(difId)->second;
00579     if ( boardContainer->find(boardId) != boardContainer->end())
00580     {
00581       (*boardContainer)[boardId] = aValue;
00582     }
00583     else
00584     {
00585       boardContainer->insert(make_pair(boardId,aValue));
00586     }
00587
00588
00589
00590
00591
00592 }

void MTEvent::SetTemperature	(	UInt_t	difId,
		Float_t	asu1,
		Float_t	asu2,
		Float_t	dif
	)

Definition at line 821 of file MTEvent.cpp.

00822 {
00823   // Search or create difs container
00824     if ( fTemperatureAsu1.find(difId) != fTemperatureAsu1.end())
00825     { // dif already exit/ replace value
00826        fTemperatureAsu1[difId] = asu1;
00827     }
00828     else
00829     { // does not exit create it
00830       fTemperatureAsu1.insert(make_pair(difId,asu1));
00831     }
00832   // Search or create difs container
00833     if ( fTemperatureAsu2.find(difId) != fTemperatureAsu2.end())
00834     { // dif already exit/ replace value
00835        fTemperatureAsu2[difId] = asu2;
00836     }
00837     else
00838     { // does not exit create it
00839       fTemperatureAsu2.insert(make_pair(difId,asu2));
00840     }
00841   // Search or create difs container
00842     if ( fTemperatureDif.find(difId) != fTemperatureDif.end())
00843     { // dif already exit/ replace value
00844        fTemperatureDif[difId] = dif;
00845     }
00846     else
00847     { // does not exit create it
00848       fTemperatureDif.insert(make_pair(difId,dif));
00849     }
00850 }

void MTEvent::SetTemperatureAsu1	(	UInt_t	difId,
		Float_t	asu1
	)

Definition at line 784 of file MTEvent.cpp.

00785 {
00786   if ( fTemperatureAsu1.find(difId) != fTemperatureAsu1.end())
00787     { // dif already exit/ replace value
00788        fTemperatureAsu1[difId] = asu1;
00789     }
00790     else
00791     { // does not exit create it
00792       fTemperatureAsu1.insert(make_pair(difId,asu1));
00793     }
00794 }

void MTEvent::SetTemperatureAsu2	(	UInt_t	difId,
		Float_t	asu2
	)

Definition at line 796 of file MTEvent.cpp.

00797 {
00798   if ( fTemperatureAsu2.find(difId) != fTemperatureAsu2.end())
00799     { // dif already exit/ replace value
00800        fTemperatureAsu2[difId] = asu2;
00801     }
00802     else
00803     { // does not exit create it
00804       fTemperatureAsu2.insert(make_pair(difId,asu2));
00805     }
00806 }

void MTEvent::SetTemperatureDif	(	UInt_t	difId,
		Float_t	dif
	)

Definition at line 808 of file MTEvent.cpp.

00809 {
00810   if ( fTemperatureDif.find(difId) != fTemperatureDif.end())
00811     { // dif already exit/ replace value
00812        fTemperatureDif[difId] = dif;
00813     }
00814     else
00815     { // does not exit create it
00816       fTemperatureDif.insert(make_pair(difId,dif));
00817     }
00818 }

Float_t MTEvent::GetTemperatureAsu1 ( UInt_t difId ) const

Definition at line 852 of file MTEvent.cpp.

Referenced by main().

00853 {
00854   if ( fTemperatureAsu1.find(difId) != fTemperatureAsu1.end())
00855   {
00856     return fTemperatureAsu1.find(difId)->second;
00857   }
00858   else
00859   {
00860     throw MicroException("MTEvent::GetTemperatureAsu1 : no difId found");
00861   }
00862 }

Float_t MTEvent::GetTemperatureAsu2 ( UInt_t difId ) const

Definition at line 864 of file MTEvent.cpp.

Referenced by main().

00865 {
00866   if ( fTemperatureAsu2.find(difId) != fTemperatureAsu2.end())
00867   {
00868     return fTemperatureAsu2.find(difId)->second;
00869   }
00870   else
00871   {
00872     throw MicroException("MTEvent::GetTemperatureAsu2 : no difId found");
00873   }
00874 }

Float_t MTEvent::GetTemperatureDif ( UInt_t difId ) const

Definition at line 876 of file MTEvent.cpp.

Referenced by main().

00877 {
00878   if ( fTemperatureDif.find(difId) != fTemperatureDif.end())
00879   {
00880     return fTemperatureDif.find(difId)->second;
00881   }
00882   else
00883   {
00884     throw MicroException("MTEvent::GetTemperatureDif : no difId found");
00885   }
00886 }

std::map<UInt_t,Float_t> MTEvent::GetTemperatureAsu1 ( void ) [inline]

Definition at line 154 of file MTEvent.hh.

00154 { return fTemperatureAsu1; } ;

std::map<UInt_t,Float_t> MTEvent::GetTemperatureAsu2 ( void ) [inline]

Definition at line 155 of file MTEvent.hh.

00155 { return fTemperatureAsu2; } ;

std::map<UInt_t,Float_t> MTEvent::GetTemperatureDif ( void ) [inline]

Definition at line 156 of file MTEvent.hh.

00156 { return fTemperatureDif; } ;

Member Data Documentation

bool MTEvent::fSquareEvt [private]

Definition at line 28 of file MTEvent.hh.

Referenced by GetSquareEvt(), operator=(), and SetSquareEvt().

bool MTEvent::fBorderEvt [private]

Definition at line 29 of file MTEvent.hh.

Referenced by GetBorderEvt(), operator=(), and SetBorderEvt().

bool MTEvent::fChipEvt [private]

Definition at line 30 of file MTEvent.hh.

Referenced by GetChipEvt(), operator=(), and SetChipEvt().

bool MTEvent::fTimeInfo [private]

Definition at line 31 of file MTEvent.hh.

Referenced by GetTimeInfo(), operator=(), and SetTimeInfo().

UInt_t MTEvent::fEventId [private]

Definition at line 33 of file MTEvent.hh.

Referenced by GetEventId(), operator=(), and SetEventId().

Double32_t MTEvent::fTemperature [private]

Definition at line 34 of file MTEvent.hh.

Referenced by GetTemperature(), operator=(), and SetTemperature().

std::map<UInt_t,Float_t> MTEvent::fTemperatureAsu1 [private]

Definition at line 35 of file MTEvent.hh.

Referenced by GetTemperatureAsu1(), operator=(), SetTemperature(), and SetTemperatureAsu1().

std::map<UInt_t,Float_t> MTEvent::fTemperatureAsu2 [private]

Definition at line 36 of file MTEvent.hh.

Referenced by GetTemperatureAsu2(), operator=(), SetTemperature(), and SetTemperatureAsu2().

std::map<UInt_t,Float_t> MTEvent::fTemperatureDif [private]

Definition at line 37 of file MTEvent.hh.

Referenced by GetTemperatureDif(), operator=(), SetTemperature(), and SetTemperatureDif().

Double32_t MTEvent::fPressure [private]

Definition at line 38 of file MTEvent.hh.

Referenced by GetPressure(), operator=(), and SetPressure().

ULong64_t MTEvent::fDifSynchro [private]

Definition at line 39 of file MTEvent.hh.

Referenced by GetDifSynchro(), operator=(), and SetDifSynchro().

ULong64_t MTEvent::fTimestamp [private]

Definition at line 40 of file MTEvent.hh.

Referenced by GetTimestamp(), operator=(), and SetTimestamp().

UInt_t MTEvent::fGlobalTriggerCounter [private]

Definition at line 41 of file MTEvent.hh.

Referenced by GetGlobalTriggerCounter(), operator=(), and SetGlobalTriggerCounter().

UInt_t MTEvent::fDifTriggerCounter [private]

Definition at line 42 of file MTEvent.hh.

Referenced by GetDifTriggerCounter(), operator=(), and SetDifTriggerCounter().

std::map<UInt_t, std::map<UInt_t, UInt_t>* > MTEvent::fNbHitPerAbsTime [private]

Definition at line 44 of file MTEvent.hh.

Referenced by AddHitForAbsTime(), Clear(), GetNbHitPerAbsTime(), and operator=().

Int_t MTEvent::fNchannel [private]

Definition at line 47 of file MTEvent.hh.

Referenced by GetNchannel(), and operator=().

TClonesArray* MTEvent::fChannels [private]

Definition at line 48 of file MTEvent.hh.

Referenced by AddChannel(), Clear(), GetChannelByOrder(), GetChannels(), GetNchannel(), operator=(), and SortChannel().

std::map<UInt_t, std::map<UInt_t, std::map<UInt_t, Float_t>* >* > MTEvent::fMeshVoltage [private]

Definition at line 53 of file MTEvent.hh.

Referenced by GetMeshVoltage(), operator=(), and SetMeshVoltage().

std::map<UInt_t, std::map<UInt_t, std::map<UInt_t, Float_t>* >* > MTEvent::fDriftVoltage [private]

Definition at line 54 of file MTEvent.hh.

Referenced by GetDriftVoltage(), operator=(), and SetDriftVoltage().

std::vector<UInt_t> MTEvent::fDtCandidate [private]

Definition at line 56 of file MTEvent.hh.

Referenced by GetDtCandidate().

MTTrack* MTEvent::fTrack [private]

Definition at line 58 of file MTEvent.hh.

Referenced by GetTrack(), operator=(), and SetTrack().

TClonesArray* MTEvent::fgChannels [static, private]

Definition at line 64 of file MTEvent.hh.

bool MTEvent::fCrcIsCorrect [private]

Definition at line 67 of file MTEvent.hh.

Referenced by GetCrcIsCorrect(), operator=(), and SetCrcIsCorrect().

UInt_t MTEvent::fValid [private]

Definition at line 68 of file MTEvent.hh.

Referenced by GetValidFlag(), IsValid(), operator=(), and SetValidFlag().

The documentation for this class was generated from the following files:

/data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/include/root/MTEvent.hh
/data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/src/root/MTEvent.cpp

Generated on Mon Jun 11 16:58:56 2012 for MicromegasFramework by

1.4.7

MTEvent Class Reference

Public Member Functions

Static Public Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
