CaloEvent Class Reference

Describe calorimeter event. More...

#include <CaloEvent.hh>

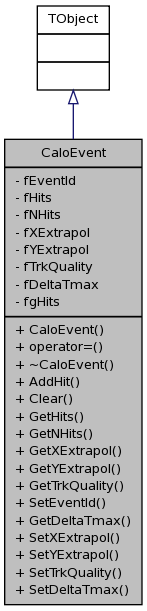

Inheritance diagram for CaloEvent:

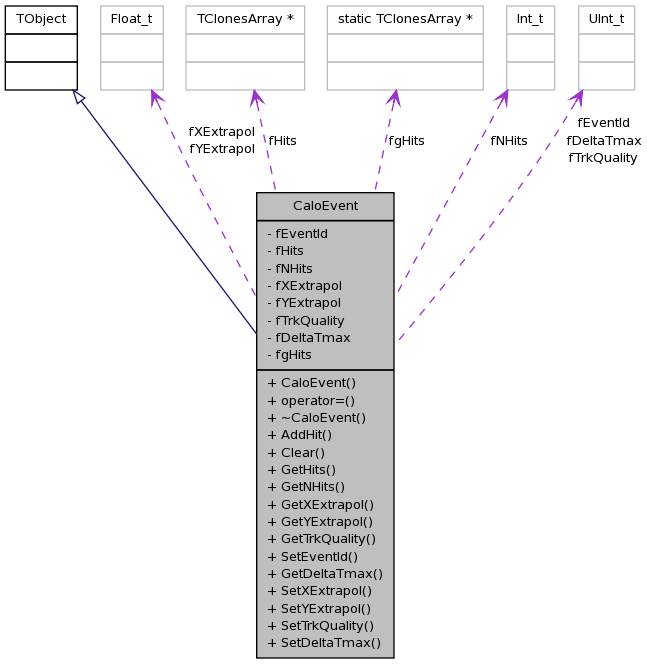

[legend]Collaboration diagram for CaloEvent:

[legend]List of all members.

Public Member Functions
	CaloEvent ()
	Constructor.
CaloEvent &	operator= (const MTEvent &rhs)
	copy assignment operator
virtual	~CaloEvent ()
	Destructor.
CaloHit *	AddHit (const CaloHit &ahit)
	Add hits to this event.
void	Clear (Option_t *option="")
	Clear fHits TClonesArray and set number of hit for this event to zero.
TClonesArray *	GetHits () const
	Getter for fHits TClonesArray.
UInt_t	GetNHits () const
	Getter for number of event's hits, fNHits .
Float_t	GetXExtrapol (void) const
	Getter expected position along x axis of CaloHit (calculated from telescope info).
Float_t	GetYExtrapol (void) const
	Getter expected position along y axis of CaloHit (calculated from telescope info).
UInt_t	GetTrkQuality (void)
	Getter for quality of trak from pad telescope.
void	SetEventId (const UInt_t value)
	Setter for event id.
UInt_t	GetDeltaTmax (void)
	Getter for number of event's hits, fNHits .
void	SetXExtrapol (const Float_t value)
	Setter for expected position along x axis of CaloHit (calculated from telescope info).
void	SetYExtrapol (const Float_t value)
	Setter for expected position along y axis of CaloHit (calculated from telescope info).
void	SetTrkQuality (const UInt_t value)
	Setter for quality of trak from pad telescope.
void	SetDeltaTmax (const UInt_t dtmax)
Private Attributes
UInt_t	fEventId
TClonesArray *	fHits
Int_t	fNHits
Float_t	fXExtrapol
Float_t	fYExtrapol
UInt_t	fTrkQuality
UInt_t	fDeltaTmax
Static Private Attributes
static TClonesArray *	fgHits

---

Detailed Description

Describe calorimeter event.

-pointer to event's hits collection: fHits

-event Id: fEventId

-number of hits : fNHits

-value along x axis for telescope : fXTelescope

-value along y axis for telescope : fYTelescope

Definition at line 54 of file CaloEvent.hh.

---

Constructor & Destructor Documentation

CaloEvent::CaloEvent

(

)

Constructor.

CaloEvent class constructor

Parameters:

none

CaloEvent::~CaloEvent

(

)

[virtual]

Destructor.

CaloEvent class destructor

Parameters:

none

Definition at line 37 of file CaloEvent.cpp.

{
  this->Clear();
}

---

Member Function Documentation

CaloEvent & CaloEvent::operator=

(

const MTEvent &

rhs

)

copy assignment operator

CaloEvent copy assignment operator. Copy MTEvent to CaloEvent

Parameters:

const

reference of MTEvent to copy

Definition at line 44 of file CaloEvent.cpp.

{
  // Set filtered event id to current input event ID
      this->fEventId = rhs.GetEventId();
      CaloHit hit;

      // Loop over MTEvent channelHit
      int nbChannel = rhs.GetNchannel();
      for(int i=0;i<nbChannel  ;i++)
      {
        MTChannel *channel = (MTChannel*)rhs.GetChannels()->UncheckedAt(i);

        hit.SetX(channel->GetX());
        hit.SetY(channel->GetY());
        hit.SetZ(channel->GetZ());

        this->AddHit(hit);
      }

  return *this;

}

CaloHit * CaloEvent::AddHit

(

const CaloHit &

ahit

)

Add hits to this event.

Parameters:

const

reference on CaloHit.

new CaloHit and store it into class fHits TClonesArray.

Returns:

pouinter to the new created CaloHit.

Definition at line 76 of file CaloEvent.cpp.

Referenced by buildCaliceEvent(), buildCaloEvent(), and operator=().

                                              {


   TClonesArray &hits = *fHits;
   CaloHit *hit = new(hits[fNHits++]) CaloHit(aHit);

return hit;

}

void CaloEvent::Clear

(

Option_t *

option = ""

)

Clear fHits TClonesArray and set number of hit for this event to zero.

Parameters:

Option_t

for TClonesArray::Clear method

Definition at line 68 of file CaloEvent.cpp.

Referenced by selectAndCopyEvent(), and ~CaloEvent().

{
  fHits->Clear("C"); //will also call Channel::Clear
  fNHits = 0;

}

CaloEvent::GetHits

(

void

)

const [inline]

Getter for fHits TClonesArray.

Parameters:

void.

Returns:

pointer to fHits TClonesArray

Definition at line 108 of file CaloEvent.hh.

Referenced by EventDisplay::adjustSlider(), and main().

{ return fHits; };

CaloEvent::GetNHits

(

void

)

const [inline]

Getter for number of event's hits, fNHits .

Parameters:

void.

Returns:

fNHits, number of eventś hits

Definition at line 116 of file CaloEvent.hh.

Referenced by EventDisplay::adjustSlider(), main(), and selectAndCopyEvent().

{ return fNHits; };

CaloEvent::GetXExtrapol

(

void

)

const [inline]

Getter expected position along x axis of CaloHit (calculated from telescope info).

Parameters:

void.

Returns:

fXExtrapol

Definition at line 124 of file CaloEvent.hh.

{ return fXExtrapol; };

CaloEvent::GetYExtrapol

(

void

)

const [inline]

Getter expected position along y axis of CaloHit (calculated from telescope info).

Parameters:

void.

Returns:

fYExtrapol

Definition at line 132 of file CaloEvent.hh.

{ return fYExtrapol; };

UInt_t CaloEvent::GetTrkQuality

(

void

)

[inline]

Getter for quality of trak from pad telescope.

Parameters:

UInt_t

value = 0,1,2 0: track (aligned 3x3 cm2 clusters in all chambers) 1: straight track (aligned max. in all chambers) 2: stiff track (single hit in all chambers)

Returns:

track quality

Definition at line 143 of file CaloEvent.hh.

{ return fTrkQuality; } ;

CaloEvent::SetEventId

(

const UInt_t

value

)

[inline]

Setter for event id.

Parameters:

UInt_t

new event id.

Returns:

none

Definition at line 151 of file CaloEvent.hh.

Referenced by selectAndCopyEvent().

{ fEventId = value; } ;

CaloEvent::GetDeltaTmax

(

void

)

[inline]

Getter for number of event's hits, fNHits .

Parameters:

void.

Returns:

fNHits, number of eventś hits

Definition at line 159 of file CaloEvent.hh.

Referenced by main().

{ return fDeltaTmax; } ;

CaloEvent::SetXExtrapol

(

const Float_t

value

)

[inline]

Setter for expected position along x axis of CaloHit (calculated from telescope info).

Parameters:

Float_t

new telescope value along x axis

Returns:

none

Definition at line 167 of file CaloEvent.hh.

Referenced by buildCaloEvent().

{ fXExtrapol = value; } ;

CaloEvent::SetYExtrapol

(

const Float_t

value

)

[inline]

Setter for expected position along y axis of CaloHit (calculated from telescope info).

Parameters:

Float_t

new telescope value along y axis

Returns:

none

Definition at line 175 of file CaloEvent.hh.

Referenced by buildCaloEvent().

{ fYExtrapol = value; } ;

CaloEvent::SetTrkQuality

(

const UInt_t

value

)

[inline]

Setter for quality of trak from pad telescope.

Parameters:

UInt_t

value = 0,1,2 0: track (aligned 3x3 cm2 clusters in all chambers) 1: straight track (aligned max. in all chambers) 2: stiff track (single hit in all chambers)

Returns:

none

Definition at line 186 of file CaloEvent.hh.

Referenced by buildCaloEvent().

{ fTrkQuality = value; } ;

void CaloEvent::SetDeltaTmax

(

const UInt_t

dtmax

)

[inline]

Definition at line 194 of file CaloEvent.hh.

Referenced by selectAndCopyEvent().

{ fDeltaTmax = dtmax; } ;

---

Member Data Documentation

TClonesArray* CaloEvent::fgHits [static, private]

Definition at line 194 of file CaloEvent.hh.

UInt_t CaloEvent::fEventId [private]

Definition at line 201 of file CaloEvent.hh.

Referenced by SetEventId().

TClonesArray* CaloEvent::fHits [private]

Definition at line 202 of file CaloEvent.hh.

Referenced by AddHit(), Clear(), and GetHits().

Int_t CaloEvent::fNHits [private]

Definition at line 203 of file CaloEvent.hh.

Referenced by AddHit(), Clear(), and GetNHits().

Float_t CaloEvent::fXExtrapol [private]

Definition at line 204 of file CaloEvent.hh.

Referenced by GetXExtrapol(), and SetXExtrapol().

Float_t CaloEvent::fYExtrapol [private]

Definition at line 205 of file CaloEvent.hh.

Referenced by GetYExtrapol(), and SetYExtrapol().

UInt_t CaloEvent::fTrkQuality [private]

Definition at line 206 of file CaloEvent.hh.

Referenced by GetTrkQuality(), and SetTrkQuality().

UInt_t CaloEvent::fDeltaTmax [private]

Definition at line 207 of file CaloEvent.hh.

Referenced by GetDeltaTmax(), and SetDeltaTmax().

---

The documentation for this class was generated from the following files:

• /data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/include/root/CaloEvent.hh
• /data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/src/root/CaloEvent.cpp

---
