MTBoard Class Reference

#include <MTBoard.hh>

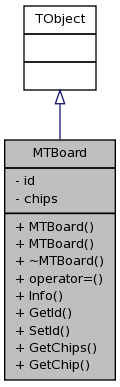

Inheritance diagram for MTBoard:

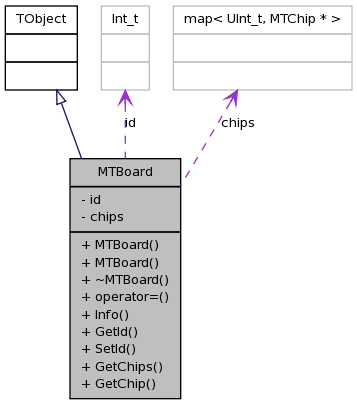

[legend]Collaboration diagram for MTBoard:

[legend]List of all members.

Public Member Functions
	MTBoard ()
	MTBoard (const Board &aBoard)
virtual	~MTBoard ()
MTBoard &	operator= (const Board &aBoard)
void	Info (void) const
UInt_t	GetId (void) const
void	SetId (UInt_t value)
const std::map< UInt_t, MTChip * > &	GetChips (void) const
MTChip &	GetChip (UInt_t id) const
Private Attributes
Int_t	id
std::map< UInt_t, MTChip * >	chips

---

Detailed Description

CLASS MTBoard(containing board configuration)

Definition at line 20 of file MTBoard.hh.

---

Constructor & Destructor Documentation

MTBoard::MTBoard

(

)

MTBoard::MTBoard

(

const Board &

aBoard

)

Definition at line 33 of file MTBoard.cpp.

 {
     (*this) = aBoard; // appelle operator=
 }

MTBoard::~MTBoard

(

)

[virtual]

Definition at line 38 of file MTBoard.cpp.

{
    for( map<UInt_t,MTChip*>::const_iterator iiChip=this->chips.begin(); iiChip!=this->chips.end(); ++iiChip)
    {
                        MTChip *foo =(*iiChip).second ;
        delete foo;
    }
//      }
}

---

Member Function Documentation

MTBoard & MTBoard::operator=

(

const Board &

aBoard

)

Definition at line 48 of file MTBoard.cpp.

{
        try
        {
                id  = aBoard.getId();

                MTChip* mtChip = NULL;
                const ChipMap_t& boardChips = aBoard.getChips();

                for (ChipMap_t::const_iterator chipIt = boardChips.begin(); chipIt != boardChips.end(); ++chipIt)
                {
                        Chip& chip = *(chipIt->second);
                        try {
                                         DiracChip &diracChip = dynamic_cast<DiracChip &> (chip);
                                         mtChip = new MTDiracChip(diracChip);
                        }
                        catch (...) {}
                        try {
                                         Hardroc1Chip &hr1Chip = dynamic_cast<Hardroc1Chip &> (chip);
                                         mtChip = new MTHardroc1Chip(hr1Chip);
                        }
                        catch (...) {}
                        try {
                                         Hardroc2Chip &hr2Chip = dynamic_cast<Hardroc2Chip &> (chip);
                                         mtChip = new MTHardroc2Chip(hr2Chip);
                        }
                        catch (...) {}
                        try {
                                         MicrorocChip &microChip = dynamic_cast<MicrorocChip &> (chip);
                                         mtChip = new MTMicrorocChip(microChip);
                        }
                        catch (...) {}


                        if ( mtChip != NULL)
                        {
                                //mtChip->SetBoard(*this);
                                chips[chip.getId()] = mtChip;
                        //      if ( id == 14 )
                //              {
        //                              cout << "Board id[" << id << "] adr[" << this << "] add chip id[" << chip.getId() << "]  chip adr[" << mtChip << "]" << endl;
        //                      }
                        }
                }
        }
        catch (MicroException e)
        {
                throw MicroException(e.getMessage());
        }
        return *this;
}

void MTBoard::Info

(

void

)

const

Definition at line 101 of file MTBoard.cpp.

{
  cout << "**** Board informations ****"    << endl << endl ;
  cout << "    Id: " << id << "    " << endl ;
}

UInt_t MTBoard::GetId

(

void

)

const [inline]

Definition at line 29 of file MTBoard.hh.

{ return id; } ;

void MTBoard::SetId

(

UInt_t

value

)

[inline]

Definition at line 30 of file MTBoard.hh.

{ id = value; } ;

const std::map<UInt_t,MTChip*>& MTBoard::GetChips

(

void

)

const [inline]

Definition at line 33 of file MTBoard.hh.

Referenced by MTRun::GetOneChip().

{ return chips; } ;

MTChip& MTBoard::GetChip

(

UInt_t

id

)

const [inline]

Definition at line 34 of file MTBoard.hh.

{ return *(chips.find(id)->second); };

---

Member Data Documentation

Int_t MTBoard::id [private]

Definition at line 34 of file MTBoard.hh.

Referenced by GetId().

std::map<UInt_t,MTChip*> MTBoard::chips [private]

Definition at line 43 of file MTBoard.hh.

Referenced by GetChips(), operator=(), and ~MTBoard().

---

The documentation for this class was generated from the following files:

• /data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/include/root/MTBoard.hh
• /data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/src/root/MTBoard.cpp

---
