MTChip Class Reference

#include <MTChip.hh>

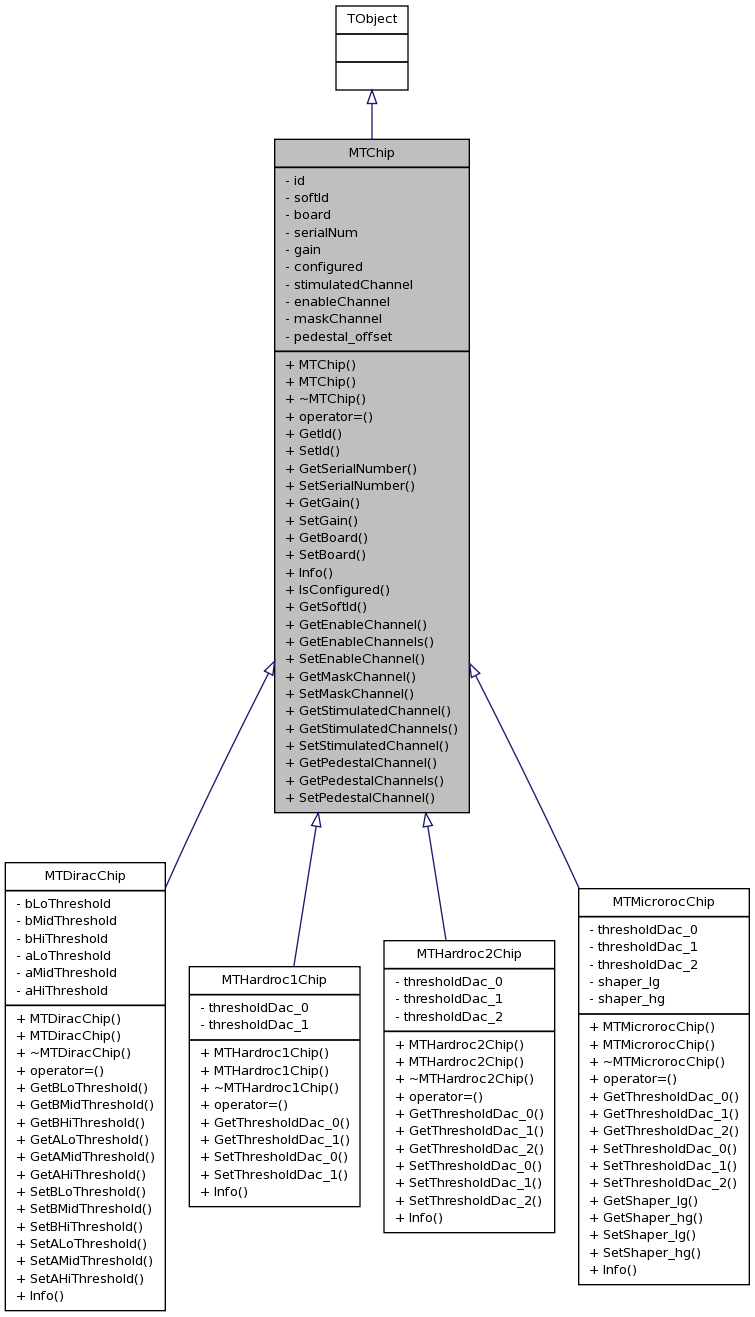

Inheritance diagram for MTChip:

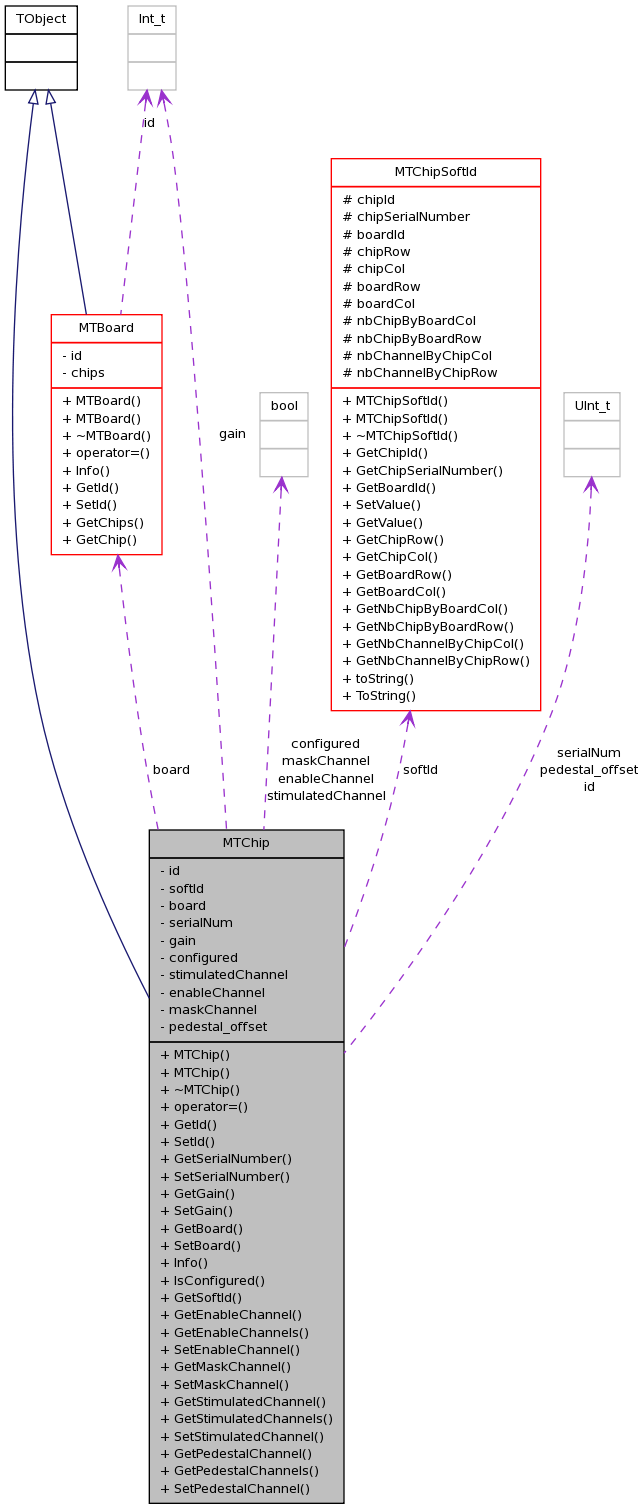

[legend]Collaboration diagram for MTChip:

[legend]List of all members.

Public Member Functions
	MTChip (UInt_t id=0)
	MTChip (const Chip &aChip)
virtual	~MTChip ()
MTChip &	operator= (const Chip &aChip)
UInt_t	GetId () const
void	SetId (UInt_t aValue)
UInt_t	GetSerialNumber () const
void	SetSerialNumber (UInt_t value)
Int_t	GetGain () const
void	SetGain (Int_t aValue)
MTBoard &	GetBoard (void)
void	SetBoard (MTBoard &value)
void	Info (void) const
bool	IsConfigured () const
const MTChipSoftId &	GetSoftId () const
bool	GetEnableChannel (UInt_t channelId) const
const bool *	GetEnableChannels () const
void	SetEnableChannel (UInt_t channelId, bool aValue)
bool	GetMaskChannel (UInt_t channelId, UInt_t index) const
void	SetMaskChannel (UInt_t channelId, UInt_t index, bool aValue)
bool	GetStimulatedChannel (UInt_t channelId) const
const bool *	GetStimulatedChannels () const
void	SetStimulatedChannel (UInt_t channelId, bool aValue)
UInt_t	GetPedestalChannel (UInt_t channelId) const
const UInt_t *	GetPedestalChannels () const
void	SetPedestalChannel (UInt_t channelId, UInt_t aValue)
Private Attributes
UInt_t	id
MTChipSoftId	softId
MTBoard	board
UInt_t	serialNum
Int_t	gain
bool	configured
bool	stimulatedChannel [64]
bool	enableChannel [64]
bool	maskChannel [64][3]
UInt_t	pedestal_offset [64]

---

Detailed Description

CLASS MTCHIP(containing chip configuration)

Definition at line 21 of file MTChip.hh.

---

Constructor & Destructor Documentation

MTChip::MTChip

(

UInt_t

id = 0

)

MTChip::MTChip

(

const Chip &

aChip

)

Definition at line 31 of file MTChip.cpp.

{
 (*this) = aChip;  // appel de l'operateur de copie
}

MTChip::~MTChip

(

)

[virtual]

Definition at line 38 of file MTChip.cpp.

{
//      cout << "DEBUG MTChip destructeur" <<endl;
}

---

Member Function Documentation

MTChip & MTChip::operator=

(

const Chip &

aChip

)

Definition at line 43 of file MTChip.cpp.

{
        const Board& board = aChip.getBoard() ;
        const Dif* dif = board.getDif();
        unsigned int difId = 0;
        if ( dif != NULL) difId = dif->getId();
        const Chamber& cham = board.getChamber();

        softId.SetValue(cham.getId(), difId, aChip.getBoard().getId(),aChip.getBoard().getRow(),aChip.getBoard().getColumn(), aChip.getBoard().getNbRows(), aChip.getBoard().getNbColumns(), aChip.getId(), aChip.getRow(), aChip.getNbRows(), aChip.getNbColumns(),  aChip.getColumn(),  aChip.getSerialNumber());

        id = aChip.getId();
  serialNum      = aChip.getSerialNumber();
  gain = aChip.getGain();
  configured = aChip.isConfigured();

  ChannelMap_t channels = aChip.getChannels();  // get channel list for corrersponding Chip
  for (ChannelMap_t::const_iterator channelIt = channels.begin(); channelIt != channels.end(); channelIt++)
  {
     const Channel& channel = *(channelIt->second);

     enableChannel[channel.getHardId()]     = channel.getEnable();

     stimulatedChannel[channel.getHardId()] = channel.getStimulate();

     pedestal_offset[channel.getHardId()] = channel.getPedestalOffset();

     enableChannel[channel.getHardId()]     = channel.getEnable();
     try
     {
       const MicrorocChannel& mc = dynamic_cast<const MicrorocChannel&> (channel) ;
       for ( unsigned int i = 0 ; i <= 2 ; i++ )
       {
         maskChannel[channel.getHardId()][i] = mc.getMask(i);
       }
     }
     catch ( ... )  {}
  }
        return *this;
}

UInt_t MTChip::GetId

(

void

)

const [inline]

Definition at line 47 of file MTChip.hh.

Referenced by Info().

{ return id;};

void MTChip::SetId

(

UInt_t

aValue

)

[inline]

Definition at line 48 of file MTChip.hh.

{ id = aValue ;};

UInt_t MTChip::GetSerialNumber

(

)

const [inline]

Definition at line 50 of file MTChip.hh.

Referenced by main().

{ return serialNum;};

void MTChip::SetSerialNumber

(

UInt_t

value

)

[inline]

Definition at line 51 of file MTChip.hh.

{ serialNum = value;};

Int_t MTChip::GetGain

(

)

const [inline]

Definition at line 53 of file MTChip.hh.

Referenced by main().

{ return gain; };

void MTChip::SetGain

(

Int_t

aValue

)

[inline]

Definition at line 54 of file MTChip.hh.

{ gain = aValue; };

MTBoard& MTChip::GetBoard

(

void

)

[inline]

Definition at line 56 of file MTChip.hh.

{ return board; } ;

void MTChip::SetBoard

(

MTBoard &

value

)

[inline]

Definition at line 57 of file MTChip.hh.

{ board = value; } ;

void MTChip::Info

(

void

)

const

Reimplemented in MTDiracChip, MTHardroc1Chip, MTHardroc2Chip, and MTMicrorocChip.

Definition at line 84 of file MTChip.cpp.

{
   cout << "------------ Chip[" << this->GetId() << "] on Dif[" << softId.GetDifId() <<"] configuration ---------------" << endl ;

   int index = 0;
   cout << "Enable channel:" << endl;
   for ( UInt_t num = 0; num <=63 ; num++)
   {
       cout << "[" << index++ << ":" << enableChannel[num]  << "]";
   }
   cout << endl;
   index = 0;
   cout << "stimulated value:" << endl;
   for ( UInt_t num = 0; num <=63 ; num++)
   {
       cout << "[" << index++ << ":" << stimulatedChannel[num]  << "]";
   }

   cout << endl;
   cout << endl;
   index = 0;
   cout << "pedestal value:" << endl;
   //for(vector<UInt_t>::const_iterator ii=pedestal_offset.begin(); ii!=pedestal_offset.end(); ++ii)
   for ( UInt_t num = 0; num <=63 ; num++)
   {
       //cout << "[" <<  index++ << ":" << *(ii) << "]";
       cout << "[" <<  index++ << ":" << pedestal_offset[num] << "]";

   }
   cout << endl;

   cout << "gain = " << gain << endl;
   cout << "serial number:[" << serialNum  << endl;
}

bool MTChip::IsConfigured

(

)

const [inline]

Definition at line 60 of file MTChip.hh.

{ return configured; };

const MTChipSoftId& MTChip::GetSoftId

(

)

const [inline]

Definition at line 62 of file MTChip.hh.

{ return softId;};

bool MTChip::GetEnableChannel

(

UInt_t

channelId

)

const [inline]

Definition at line 65 of file MTChip.hh.

{ return enableChannel[channelId]; };

const bool* MTChip::GetEnableChannels

(

)

const [inline]

Definition at line 66 of file MTChip.hh.

{ return enableChannel; };

void MTChip::SetEnableChannel	(	UInt_t	channelId,
		bool	aValue
	)			[inline]

Definition at line 67 of file MTChip.hh.

{ enableChannel[channelId] = aValue; };

bool MTChip::GetMaskChannel	(	UInt_t	channelId,
		UInt_t	index
	)			const [inline]

Definition at line 69 of file MTChip.hh.

{ return maskChannel[channelId][index]; };

void MTChip::SetMaskChannel	(	UInt_t	channelId,
		UInt_t	index,
		bool	aValue
	)			[inline]

Definition at line 70 of file MTChip.hh.

{ maskChannel[channelId][index] = aValue; };

bool MTChip::GetStimulatedChannel

(

UInt_t

channelId

)

const [inline]

Definition at line 72 of file MTChip.hh.

{ return stimulatedChannel[channelId]; };

const bool* MTChip::GetStimulatedChannels

(

)

const [inline]

Definition at line 73 of file MTChip.hh.

{ return stimulatedChannel; };

void MTChip::SetStimulatedChannel	(	UInt_t	channelId,
		bool	aValue
	)			[inline]

Definition at line 74 of file MTChip.hh.

{ stimulatedChannel[channelId] = aValue; };

UInt_t MTChip::GetPedestalChannel

(

UInt_t

channelId

)

const [inline]

Definition at line 76 of file MTChip.hh.

{ return pedestal_offset[channelId]; };

const UInt_t* MTChip::GetPedestalChannels

(

)

const [inline]

Definition at line 77 of file MTChip.hh.

{ return pedestal_offset; };

void MTChip::SetPedestalChannel	(	UInt_t	channelId,
		UInt_t	aValue
	)			[inline]

Definition at line 78 of file MTChip.hh.

{ pedestal_offset[channelId] = aValue; };

---

Member Data Documentation

UInt_t MTChip::id [private]

Definition at line 31 of file MTChip.hh.

Referenced by GetId().

MTChipSoftId MTChip::softId [private]

Definition at line 32 of file MTChip.hh.

Referenced by GetSoftId(), Info(), and operator=().

MTBoard MTChip::board [private]

Definition at line 34 of file MTChip.hh.

Referenced by GetBoard(), operator=(), and SetBoard().

UInt_t MTChip::serialNum [private]

Definition at line 35 of file MTChip.hh.

Referenced by GetSerialNumber(), Info(), operator=(), and SetSerialNumber().

Int_t MTChip::gain [private]

Definition at line 36 of file MTChip.hh.

Referenced by GetGain(), Info(), operator=(), and SetGain().

bool MTChip::configured [private]

Definition at line 37 of file MTChip.hh.

Referenced by IsConfigured(), and operator=().

bool MTChip::stimulatedChannel[64] [private]

Definition at line 40 of file MTChip.hh.

Referenced by GetStimulatedChannel(), GetStimulatedChannels(), Info(), operator=(), and SetStimulatedChannel().

bool MTChip::enableChannel[64] [private]

Definition at line 41 of file MTChip.hh.

Referenced by GetEnableChannel(), GetEnableChannels(), Info(), operator=(), and SetEnableChannel().

bool MTChip::maskChannel[64][3] [private]

Definition at line 42 of file MTChip.hh.

Referenced by GetMaskChannel(), operator=(), and SetMaskChannel().

UInt_t MTChip::pedestal_offset[64] [private]

Definition at line 43 of file MTChip.hh.

Referenced by GetPedestalChannel(), GetPedestalChannels(), Info(), operator=(), and SetPedestalChannel().

---

The documentation for this class was generated from the following files:

• /data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/include/root/MTChip.hh
• /data3/calcul/jacquem/working_dir/Micromegas/micromegasFrameWork/src/root/MTChip.cpp

---
