Micromegas LAPP reconstruction

MicrorocLabviewReader::MicrorocLabviewReader	(	Run &	aRun,
		FILE *	aFile,
		ui32	lastEventId
	)

Definition at line 37 of file MicrorocLabviewReader.cpp.

00037                                                                                      : MicrorocReader(aRun, aFile, lastEventId), nbChipPerLine(0), analogDataActivate(false)
00038 {
00039   FILE_LOG(logDEBUG1) << "--MicrorocLabviewReader constructor()"<< endl;
00040   FILE_LOG(logDEBUG) << "cwMixrorocLabview ReaderDifReader Constructeur  crc adr[" <<  crc << "]" << endl;
00041
00042   for ( ui16 line = 0 ; line < NBLINE ; line++)
00043   {
00044     analogDataActivatedLine[line] = false;
00045   }
00046
00047   reset();
00048
00049 }

MicrorocLabviewReader::~MicrorocLabviewReader ( )

Definition at line 52 of file MicrorocLabviewReader.cpp.

00053 {
00054   FILE_LOG(logDEBUG1)<< "----MicrorocLabviewReader destructor"<< endl;
00055 }

static const char* MicrorocLabviewReader::type ( const int subtype = 0 ) [inline, static]

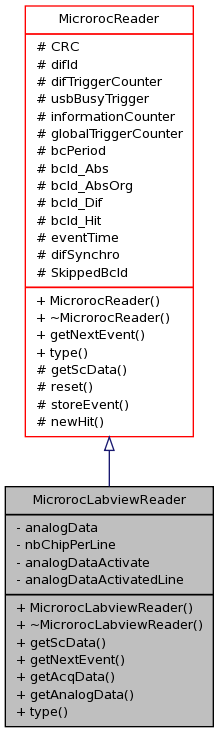

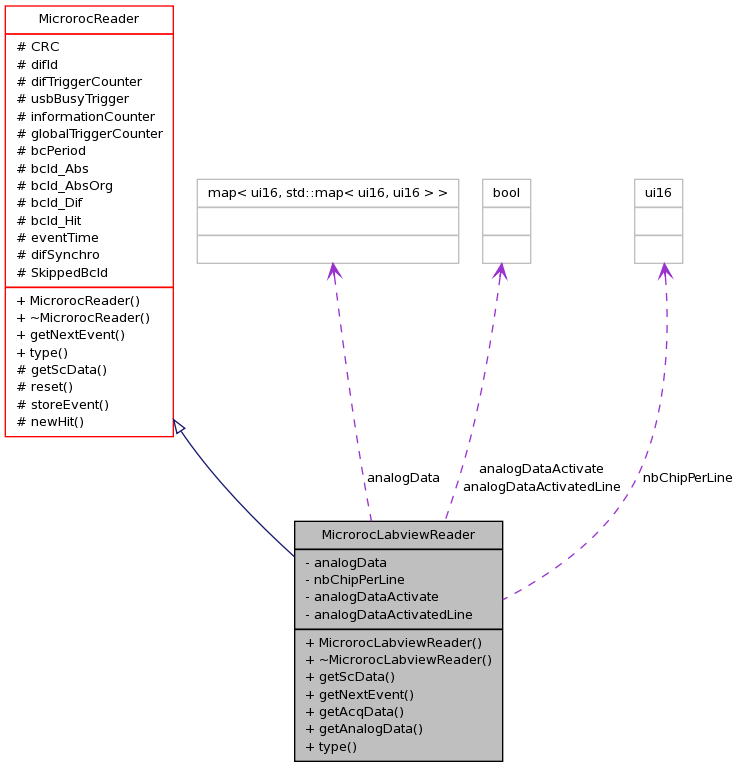

Reimplemented from MicrorocReader.

Definition at line 36 of file MicrorocLabviewReader.hh.

Referenced by main().

00036 { return LABVIEWMR; };

int MicrorocLabviewReader::getScData ( ) [virtual]

Implements MicrorocReader.

Definition at line 59 of file MicrorocLabviewReader.cpp.

Referenced by getNextEvent().

00059                                      {
00060   unsigned int data;
00061   display(+1);
00062   FILE_LOG(logDEBUG) << " Slow Control data header B1 found" << endl;
00063
00064
00065   int scHRNumber = 24;
00066
00067   difId=1; // in case of dataFormat = 7 Difid is not in data file
00068         ui16 dataFormat = run.getDataFormat();
00069   if ( dataFormat == 11 || dataFormat == 12)
00070   {
00071
00072       nbChipPerLine = 12;  //DEBUG
00073       bool findA1 = false;
00074       difId = getData(1);
00075                   display(+1);
00076       FILE_LOG(logDEBUG) << "--- difId[" << difId << "] config ---" << endl;
00077
00078                         Dif& dif = run.getDetector().getDifById(difId);
00079       FILE_LOG(logINFO) << "-------- dif Id[0x" << hex << dif.getId() << "]" << endl;
00080                         dif.setDifFirmware(getData(2));
00081                         display(+2);
00082       FILE_LOG(logINFO) << "-------- difFirmware[0x" << hex << dif.getDifFirmware() << "]" << endl;
00083
00084                         dif.setDifConfig (getData(1));
00085                         display(+1);
00086       FILE_LOG(logINFO) << "-------- difConfig[0x" << hex <<  dif.getDifConfig() << "]" << endl;
00087
00088                         dif.setAsicType(getData(1));
00089                         display(+1);
00090       FILE_LOG(logINFO) << "-------- asicType[0x" << dif.getAsicType() << "]" << endl;
00091       if ( dif.getAsicType() == 4 )
00092       {
00093         FILE_LOG(logINFO) << "------------------ [ Microroc ]" << endl;
00094       }
00095       dif.setConfigured(true);
00096
00097       if ( dataFormat == 12 )
00098       {
00099       // Test next Byte to decode analigic informations
00100         int foo = getData(1);
00101         if ( foo != 0x0 )
00102         {
00103           analogDataActivate = true;
00104           ui16 bitshift = 0x1;
00105           for ( ui16 line = 0 ; line < NBLINE; line++)
00106           {
00107             analogDataActivatedLine[line] = foo & bitshift;
00108             bitshift = bitshift * 2;
00109             FILE_LOG(logDEBUG) << "line [" << line << "] analog activation["<< analogDataActivatedLine[line] <<"]" << endl;
00110           }
00111           FILE_LOG(logINFO) << "-------- analog data enable. Mask to enable line [0x"  <<hex << foo <<"]" << endl;
00112         }
00113         else
00114         {
00115           analogDataActivate = false;
00116           FILE_LOG(logINFO) << "-------- analogData disable" << endl;
00117         }
00118       }
00119
00120                         dif.setAsu1Id(getData(1));
00121       FILE_LOG(logINFO) << "-------- ASU 1 Id[0x" << hex << dif.getAsu1Id() << "]" << endl;
00122                         display(+1);
00123
00124       // Consistency verification beetween geometry base on XML file and data send by Labview
00125       // In XML when a dif contains 2 ASU, we considere the first one a the left one ( close to DIF ) with row = 0
00126       // se second ASU is on right ( far away from Dif ) with row = 1
00127       // From Labview data, ASU1Id is always on left ( close to the Dif )
00128
00129       ui16 boardColToCheck = 0;
00130       if ( dif.getAsu1Id() != 0)
00131       {
00132         if ( dif.getBoardByCol(boardColToCheck).getId() !=  dif.getAsu1Id() )
00133         {
00134           FILE_LOG(logINFO) << "Error data say ASU id =  "<<  dif.getAsu1Id() << " for ASU close to DIF ( left side ) while XML say ASU id = " << dif.getBoardByCol(boardColToCheck).getId() << endl;
00135           FILE_LOG(logINFO) << "Please consider modifying XML file" << endl;
00136           exit(-1);
00137         }
00138         boardColToCheck++;
00139       }
00140
00141
00142                         dif.setAsu2Id (getData(1));
00143       FILE_LOG(logINFO) << "-------- ASU 2 Id[0x" <<hex << dif.getAsu2Id() << "]" << endl;
00144                         display(+1);
00145       if (  dif.getAsu2Id() != 0)
00146       {
00147         if ( dif.getBoardByCol(boardColToCheck).getId() !=  dif.getAsu2Id() )
00148         {
00149           FILE_LOG(logINFO) << "Error data say ASU id =  "<<  dif.getAsu2Id() << " for ASU far away to DIF ( right side ) while XML say ASU id = " << dif.getBoardByCol(boardColToCheck).getId() << endl;
00150           FILE_LOG(logINFO) << "Please consider modifying XML file" << endl;
00151           exit(-1);
00152         }
00153       }
00154       scHRNumber = getData(1);
00155       FILE_LOG(logINFO) << "-------- Nombre de chip en Slow control[0x" << hex << scHRNumber << "]" << endl;
00156
00157       // set all chip to byppassed = True.
00158       // then each chip prensent in Slow control will by set to bypassed = False
00159       dif.setChipByPassed(true);
00160       for ( int nbChip = 0 ; (nbChip < scHRNumber) & findA1 == false   ; nbChip++)
00161       {
00162         const unsigned char *buf = initGetBits(74, false);
00163         vector<int> sc;
00164         for ( ui16 i = 0; i < 74 ; i++)
00165         {
00166           int foo = getBits(8);
00167           sc.push_back(foo);
00168         }
00169         finishGetBits();
00170         MicrorocSCReader scReader(run,sc,difId);
00171         scReader.parseSC(difId);
00172
00173
00174
00175       } // end for nbChip
00176           if ( ! findA1) {
00177               unsigned char *buf = initGetBits(1, false);
00178               if ( !buf)
00179               {
00180                 FILE_LOG(logERROR) << "  malloc error while getting SC buffer" << endl;
00181                 exit ( -1);
00182               }
00183               // Verify A1 Header
00184               int foo = getBits(8);
00185               finishGetBits();
00186
00187               FILE_LOG(logDEBUG) << "Header[" <<hex <<  foo <<"]" << endl;
00188               if ( foo != 0xa1)
00189               {
00190                   FILE_LOG(logERROR) << "  Header A1 not found" << endl;
00191                   exit (-1);
00192               }
00193               FILE_LOG(logDEBUG1) << "Header A1 found" << endl;
00194
00195           }
00196
00197     } //end if format == 11 OR 12
00198
00199     return(1);
00200 } // MicrorocLabviewReader.getScData

int MicrorocLabviewReader::getNextEvent ( Event & eventToFill ) [virtual]

Implements MicrorocReader.

Definition at line 540 of file MicrorocLabviewReader.cpp.

00540                                                     {
00541   // Start data reconstruction
00542   Level(0);
00543
00544         ui16 dataFormat = run.getDataFormat();
00545
00546   if (dataFormat == 0) {
00547     // first read of the file
00548     bcIdDifAbsOrgMap.clear();
00549     // read file header
00550     dataFormat = getData(1);
00551     FILE_LOG(logINFO) << " labview data format[" << hex << dataFormat << "] "<< endl;
00552     if ( dataFormat == 0x10  ) { dataFormat = 0xa; }
00553                 run.setDataFormat(dataFormat);
00554
00555
00556     if (fileError == EOF) {
00557       FILE_LOG(logERROR) << "parsing file[" << inputFile << "]  - error " << errno << ":" << strerror(errno) << endl;
00558       reset();
00559       return(LAST_FILE_EVENT);
00560     }
00561     display(+1);
00562     FILE_LOG(logINFO) << "  Microroc LABVIEW DATA FORMAT  : " << dataFormat << endl;
00563
00564     if (! ( dataFormat == 11  ||  dataFormat == 12)  ){
00565       // unknown format
00566       FILE_LOG(logERROR) << " Microroc LABVIEW data format  " << dataFormat << " is not implemented" << endl;
00567       reset();
00568       return(LAST_FILE_EVENT);
00569     }
00570
00571         if ( dataFormat == 11 ||  dataFormat == 12 )
00572         {
00573                 run.setDaqSoftware( getData(1));
00574                 display(+1);
00575                 FILE_LOG(logINFO) << "  DAQ software version  : " << run.getDaqSoftware() << endl;
00576
00577                 run.setCccFirmware(getData(1));
00578                 display(+1);
00579         FILE_LOG(logINFO) << "  ccc firware  : " << run.getCccFirmware() << endl;
00580         }
00581
00582     globalTime = getData(4)    ; // labview time is second since 1 janv 1970 and globalTime milli second
00583     FILE_LOG(logDEBUG) << "globalTime in second:["  << hex << globalTime << "]" <<  endl;
00584     globalTime *= 1000;
00585     FILE_LOG(logDEBUG1) << "globalTime in millisecond:[" << globalTime << "]" <<  endl;
00586     FILE_LOG(logDEBUG1) << "  Global timestamp(hex) [" << hex << globalTime << "]" << endl;
00587
00588
00589
00590     if (fileError == EOF) {
00591       FILE_LOG(logDEBUG) << "  END OF DATA FILE" << endl;
00592       reset();
00593       return(LAST_FILE_EVENT);
00594     }
00595     //FILE_LOG(logDEBUG) << run.getDetector() << endl;
00596     display(-1);
00597     return NEW_CONFIG;
00598   }
00599
00600
00601   // loops until a non-empty event has been found
00602   //for (unsigned int nbHits = 0; !nbHits; ) {
00603         bool eventFound = false;
00604         while (! eventFound)
00605                 {
00606         // look for a global data header and process corresponding data
00607         unsigned int globalHeader = getData(1);
00608         if (fileError == EOF) {
00609            FILE_LOG(logDEBUG) << "  END OF DATA FILE" << endl;
00610           reset();
00611           return(LAST_FILE_EVENT);
00612         }
00613         FILE_LOG(logDEBUG) << "globalHeader:["<< hex  << globalHeader << "]" << endl;
00614         if (globalHeader == 0xB1) {
00615           // slow control data
00616           getScData();
00617         }
00618         else if (globalHeader == 0xC0) {
00619           // acquisition data
00620           getAnalogData(event);
00621         }
00622         else if (globalHeader == 0xB0) {
00623           // acquisition data
00624           getAcqData(event);
00625                       eventFound = true;
00626         }
00627         else {
00628           display();
00629          FILE_LOG(logERROR) << "  parsing file error. global header error : " << hex << globalHeader << dec << endl;
00630         }
00631         }
00632   //} // for (nbHits)
00633
00634   return EVENT_CORRECT;
00635 }

int MicrorocLabviewReader::getAcqData ( Event & event )

Definition at line 289 of file MicrorocLabviewReader.cpp.

Referenced by getNextEvent().

00289                                                   {
00290   ui32 nbanalogHit = 0;
00291   unsigned int nbHits = 0;
00292
00293   display(+1);
00294   FILE_LOG(logDEBUG) << " global header B0 found" << endl;
00295
00296
00297   this->setComputeCrcFlag(true);
00298   //FILE_LOG(logDEBUG) << "MicrorocLabviewReader crc adr[" <<  crc << "]" << endl;
00299    FILE_LOG(logDEBUG) << "crc->compute(0xB0)[ "<< crc <<"]"   << endl;
00300
00301   crc->compute(0xB0);
00302
00303
00304
00305   // reset the data for the block
00306 //  bcId_AbsOrg = -1;
00307   bcId_Abs = 0; // max. 48 bits
00308   bcId_Dif = 0;
00309   // the following data is repeated one time for each Dif which has sent data
00310   difId = getData(1);
00311
00312   difTriggerCounter = getData(4);
00313   usbBusyTrigger = getData(4);  // trigger counter version >= 4
00314   globalTriggerCounter = getData(4);
00315   ui64 bcIdHigh = getData(2);
00316   ui64 bcIdLow = getData(4);
00317   bcId_Abs = (bcIdHigh << 32) + bcIdLow;
00318   FILE_LOG(logDEBUG1) << "bcId_Abs[" <<bcId_Abs <<  endl;
00319   bcId_Dif = getData(3);
00320
00321   bcId_AbsOrg =  getbcIdAbsOrg(difId, bcId_Abs);
00322
00323   ui16 lineInfo =  getData(1);
00324   ui16 nbLine   = (lineInfo & 0xF0 ) >> 4;
00325   ui16 usedLine = lineInfo & 0x0F; //bit 3 (4eme ligne,)  bit 2 (3eme ligne)  bit 1 (2eme ligne)  bit 0 (1ere ligne)
00326
00327
00328   display();
00329
00330   // the bcTime in milliseconds
00331   i64 bcTime = ((bcId_Abs - bcId_AbsOrg) * bcPeriod) / 1000;
00332   // the reading time in milliseconds
00333   i64 readTime = globalTime + bcTime;
00334
00335   FILE_LOG(logDEBUG)   << "  START EVENT ------------- time " << readTime << " ms" << endl;
00336   FILE_LOG(logDEBUG)   << "    bc time               " << bcTime << " ms" << endl;
00337   FILE_LOG(logDEBUG)   << "    DIF Id                0x" << hex << (int)difId << dec << endl;
00338   FILE_LOG(logDEBUG)   << "    DIF trigger counter   " << difTriggerCounter << endl;
00339   FILE_LOG(logDEBUG)   << "    USB Busy trigger counter   " << usbBusyTrigger << endl;
00340   FILE_LOG(logDEBUG)   << "    total trigger counter " << globalTriggerCounter << endl;
00341   FILE_LOG(logDEBUG)   << "    absolute bcId         " << bcId_Abs - bcId_AbsOrg << endl;
00342   FILE_LOG(logDEBUG)   << "    nb line          " << dec <<nbLine << endl;
00343   FILE_LOG(logDEBUG)   << "    used line        " << hex << usedLine << dec <<endl;
00344         event.setDifTriggerCounter(difTriggerCounter);
00345         event.setGlobalTriggerCounter(globalTriggerCounter);
00346
00347
00348   Detector &detector = run.getDetector();
00349
00350   if ( analogDataActivate )//&& orderInChipMemory == 0 )
00351   {
00352     for ( map<ui16,map<ui16,ui16> >::iterator iterAnal = analogData.begin(); iterAnal!= analogData.end(); iterAnal++)
00353     {
00354        map<ui16,ui16>& byChip = iterAnal->second;
00355        ui16 chipId = iterAnal->first;
00356       // When analog is anable, all channel of all chip enable for analogic respond
00357       for ( std::map<ui16,ui16>::iterator iterChip = byChip.begin(); iterChip != byChip.end();iterChip++)
00358       {
00359         ui16 analogValue =  iterChip->second;
00360         ui16 channelId = iterChip->first;
00361
00362         nbHits += newHit(event, detector, 0, analogValue,channelId , chipId, difId);
00363         nbanalogHit++;
00364       }
00365     }
00366   }
00367   // end of global header
00368
00369   bool difFound = false;
00370   { const ChamberMap_t &chambers = detector.getChambers();
00371     for (ChamberMap_t::const_iterator it = chambers.begin(); it != chambers.end(); ++it) {
00372       try {
00373         Chamber& chamber = *(it->second);
00374         const BoardMap_t& boards = chamber.getBoardsByDifId(difId);
00375       }
00376       catch (...) {
00377         // any error case - try next chamber
00378         continue;
00379       }
00380
00381       // the DIF has been found in a chamber. Process all data and continue
00382       difFound = true;
00383       break;
00384     } // for
00385     if (!difFound) {
00386       FILE_LOG(logERROR) << "    No dif found with Id 0x" << hex << difId << dec << endl;
00387     }
00388   }
00389
00390   for (bool finish = false; !finish; ) {
00391     int delimiter = 0;
00392
00393     display();
00394     for (; delimiter != 0xA0 && delimiter != 0xB4; ) {
00395       // seek for first data frame header (0xB4)
00396       delimiter = getData(1);
00397       if (fileError == EOF) {
00398         delimiter = 0;
00399         break;
00400       }
00401       if (delimiter == 0xA3)
00402         FILE_LOG(logERROR) << "    frame trailer A3 found -- should not" << endl;
00403     }
00404     if (delimiter == 0x00) {
00405       FILE_LOG(logERROR) << "  end of file -- should not" << endl;
00406       break;
00407     }
00408     if (delimiter == 0xA0) {
00409        FILE_LOG(logDEBUG) << "    frame trailer A0 found" << endl;
00410       this->setComputeCrcFlag(false);
00411       unsigned short CRC_check = getData(2);
00412       FILE_LOG(logDEBUG) << hex << " Compute CRC[" << crc->getCrc() << "]" <<  endl;
00413       FILE_LOG(logDEBUG) << hex << " Received CRC[" << CRC_check << "]" <<  endl;
00414       if ( CRC_check != crc->getCrc() )
00415       {
00416         FILE_LOG(logERROR) << endl << " CRC Error for event id " <<  lastEventId << endl;
00417         event.setCrcIsCorrect(false);
00418 //        exit(-1);
00419       }
00420       else
00421       {
00422         event.setCrcIsCorrect(true);
00423       }
00424
00425
00426       display(-1);
00427       FILE_LOG(logDEBUG) << " global trailer A0 found" << endl;
00428       break;
00429     }
00430     display(+1);
00431     FILE_LOG(logDEBUG) << "   frame header B4 found" << endl;
00432
00433
00434     int chipId = -1;
00435     ui16 orderInChipMemory = 0;
00436     for (; ; )  // Read in chip memory for different BCId_HIT.
00437     {
00438       chipId = getData(1);
00439       FILE_LOG(logDEBUG) << "8 bits read[" << chipId << "] [0x"  << hex << chipId << "]" << dec << endl;
00440
00441       if (fileError == EOF) {
00442         finish = true;
00443         FILE_LOG(logINFO) << "    end of file found -- should not" << endl;
00444         break;
00445       }
00446       if (chipId == 0x00) {
00447         // dummy null bytes
00448         continue;
00449       }
00450       else if (chipId == 0xA3) {
00451         display(-1);
00452         FILE_LOG(logDEBUG) << "   frame trailer A3 found" << endl;
00453         break;
00454       }
00455       else if (chipId == 0xA0) {
00456         finish = true;
00457         display(-1);
00458         FILE_LOG(logERROR) << "    global trailer A0 found -- should not" << endl;
00459         int CRC_check = getData(1);
00460         break;
00461       }
00462       else if (chipId == 0xC3) {
00463         display(-1);
00464         FILE_LOG(logERROR) << "    frame trailer C3 found - error occured during data transfer" << endl;
00465         break;
00466       }
00467
00468       // bcId from hardroc chip is counted as Gray code
00469       bcId_Hit = grayToBinary(getData(3));
00470       // event time in milliseconds
00471       eventTime = readTime + (((bcId_Dif - bcId_Hit) * bcPeriod) / 1000);
00472
00473       orderInChipMemory++;
00474       // not on first line and bcId OK : get and check data
00475       if (difFound)
00476       {
00477         FILE_LOG(logDEBUG) << "      chip Id               0x" << hex << (int)chipId << dec << endl;
00478         FILE_LOG(logDEBUG) << "      bcId Microroc          " << hex << (int)bcId_Hit << endl;
00479         FILE_LOG(logDEBUG) << "      event time            " << eventTime << endl;
00480
00481         for (int chNum = 48; chNum >= 0; chNum -= 16)  // read data ( 128) for different channel Id with same BCID_HIT
00482         {
00483           unsigned int data4 = getData(4); // lit 4 bytes => 8 char => 16 canaux
00484           for (int index = 0; index < 16; index++)
00485           {
00486               // sur les 16 canaux, recupere les donnees canal par canal
00487             int trigger = (data4 >> ((15 - index) * 2)) & 0x03; // 2 bits
00488             // store new event data if any
00489             if (trigger)  // on elimine tous les hits dans la valeur est 0
00490             {
00491 //        cout << " analogDataActivate[" <<analogDataActivate << "]  orderInChipMemory]" << orderInChipMemory <<  "]"  << endl;
00492                  if ( analogDataActivate && orderInChipMemory == 1 )
00493                  {
00494  //                 cout << " New Hit with ana;log value" <<endl;
00495                   i16 analogValue = analogData[chipId][index + chNum];
00496                   nbHits += newHit(event, detector, trigger, analogValue, index + chNum, chipId, difId,orderInChipMemory);
00497                  }
00498                  else
00499                  {
00500                   nbHits += newHit(event, detector, trigger, 0, index + chNum, chipId, difId,orderInChipMemory);
00501                  }
00502
00503                 //digital[index+chNum]=trigger;
00504                 FILE_LOG(logDEBUG) << "digital chipId[" << chipId << "] channelNum["<< index+chNum <<"]= " << trigger << endl;
00505             }
00506           } // for (index)
00507         } // End digital data. for (chNum)
00508       }
00509     display();
00510     } // for(;;)
00511
00512   } // for (;;)
00513   display(-1);
00514
00515  // CREATE EVENT for current Run
00516
00517 // if ( nbHits > 0 )
00518 // {
00519   event.setTimeStamp(globalTime + ((bcId_AbsOrg /1000000 * bcPeriod) )  );  // globalTime -> millisecond and bcId_AbsOrg * bcPeriod -> nano second
00520   event.setId(++lastEventId);
00521   FILE_LOG(logDEBUG) << "  STORE EVENT " << lastEventId << ", " << nbHits << " hits" << endl;
00522 // }
00523 // else
00524 // {
00525 //  FILE_LOG(logDEBUG) << "  EMPTY EVENT " << lastEventId << ", " << nbHits << " hits" << endl;
00526 // }
00527
00528
00529   if (SkippedBcId) {
00530     FILE_LOG(logWARNING) << "    skipped " << SkippedBcId << " data because of bad bcId" << endl;
00531     SkippedBcId = 0;
00532   }
00533
00534   return(nbHits);
00535 } // MicrorocLabviewReader.getAcqData

int MicrorocLabviewReader::getAnalogData ( Event & event )

Definition at line 204 of file MicrorocLabviewReader.cpp.

Referenced by getNextEvent().

00204                                                      {
00205   FILE_LOG(logDEBUG) << " global header C0 found" << endl;
00206   this->setComputeCrcFlag(true);
00207   crc->compute(0xC0);
00208
00209   ui16 nbchannel  = 64;
00210   ui16 nbLine = 4;
00211   ui16 nbBitsPerLine = this->nbChipPerLine * nbchannel * 16;
00212   Dif& dif = run.getDetector().getDifById(difId);
00213   ui16 nbChipByBoard = dif.getBoards().begin()->second->getNbColumns();
00214   ui16 nbBoard =  dif.getBoards().size();
00215   FILE_LOG(logDEBUG) << "nbBoard[" << nbBoard << "]" <<endl;
00216   FILE_LOG(logDEBUG) << "nbChipByBoard[" << nbChipByBoard << "]" <<endl;
00217
00218   this->analogData.clear();
00219   bool firstLine=true;
00220   for ( ui16 line = 0; line < nbLine  ; line++)
00221   {
00222     if (  analogDataActivatedLine[line] == true )
00223     {
00224       FILE_LOG(logDEBUG) << " New Line[" << line << "]" <<  endl;
00225       if ( !firstLine  )
00226       {
00227         int foo = getData(1);  // read 8 bits
00228         FILE_LOG(logDEBUG) << " foo C0["<< hex <<  foo << "]" << endl;
00229         if ( foo != 0xC0 )
00230         {
00231           FILE_LOG(logERROR) << "C0 header not found[0x" << hex << foo << "]" << endl;
00232           exit(-1);
00233         }
00234       }
00235       if( firstLine == true) { firstLine = false; }
00236
00237       for ( i32 col = nbBoard * nbChipByBoard -1  ; col >= 0; col--)
00238       {
00239         FILE_LOG(logDEBUG)<< hex << "col index[0x" << col << "]board col["<< col/nbChipByBoard << "] line["<< line <<"], col["<< col%nbChipByBoard <<"] "<<endl;
00240         Chip& chip = dif.getChipByRowCol(col/nbChipByBoard, line,col%nbChipByBoard);
00241         FILE_LOG(logDEBUG) << "------------chipId["<< chip.getId() << "] chip bypassed[" << chip.getBypassed() << "]"  <<endl;
00242         if( chip.getBypassed() == false )
00243         {
00244           map<ui16,ui16> channelsValues;
00245           for ( ui16 channel = 0 ; channel < nbchannel ;channel++)
00246           {
00247             int foo = getData(2);
00248             //this->analogData[line][col][channel] = foo;
00249             channelsValues[channel] = foo;
00250             FILE_LOG(logDEBUG) << "chipId["<< chip.getId() <<"] analogData line["<< line <<"], col number["<< col << "] , channel[" << channel << "= " << hex <<foo << dec << endl;
00251           }
00252           this->analogData[chip.getId()] = channelsValues;
00253         }
00254       }
00255
00256       // Get D0
00257       int foo = getData(1);
00258       if ( foo != 0xD0 )
00259       {
00260         FILE_LOG(logERROR) << "D0 header not found[0x" << hex << foo << "]" << endl;
00261         exit(-1);
00262       }
00263     }
00264     else
00265     {
00266       FILE_LOG(logDEBUG) << " line[ " <<  line +1<< "] is disable  ( starting number at  1 )" << endl;
00267     }
00268   }
00269
00270
00271   this->setComputeCrcFlag(false);
00272   unsigned short CRC_check = getData(2);
00273   if ( CRC_check != crc->getCrc() )
00274   {
00275     FILE_LOG(logERROR) << endl << " CRC Error event Id: " << lastEventId <<  endl;
00276     FILE_LOG(logERROR) << hex << " Compute CRC[" << crc->getCrc() << "]" <<  endl;
00277     FILE_LOG(logERROR) << hex << " Received CRC[" << CRC_check << "]" <<  endl;
00278     event.setCrcIsCorrect(false);
00279   }
00280   else
00281   {
00282     event.setCrcIsCorrect(true);
00283   }
00284
00285   return 0;
00286   }

std::map<ui16,std::map<ui16,ui16> > MicrorocLabviewReader::analogData [private]

Definition at line 49 of file MicrorocLabviewReader.hh.

Referenced by getAcqData(), and getAnalogData().

ui16 MicrorocLabviewReader::nbChipPerLine [private]

Definition at line 51 of file MicrorocLabviewReader.hh.

Referenced by getAnalogData(), and getScData().

bool MicrorocLabviewReader::analogDataActivate [private]

Definition at line 52 of file MicrorocLabviewReader.hh.

Referenced by getAcqData(), and getScData().

bool MicrorocLabviewReader::analogDataActivatedLine[NBLINE] [private]

Definition at line 53 of file MicrorocLabviewReader.hh.

Referenced by getAnalogData(), getScData(), and MicrorocLabviewReader().


Public Member Functions
	MicrorocLabviewReader (Run &aRun, FILE *aFile, ui32 lastEventId)
	~MicrorocLabviewReader ()
int	getScData ()
int	getNextEvent (Event &eventToFill)
int	getAcqData (Event &event)
int	getAnalogData (Event &event)
Static Public Member Functions
static const char *	type (const int subtype=0)
Private Attributes
std::map< ui16, std::map< ui16, ui16 > >	analogData
ui16	nbChipPerLine
bool	analogDataActivate
bool	analogDataActivatedLine [NBLINE]

MicrorocLabviewReader Class Reference

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
